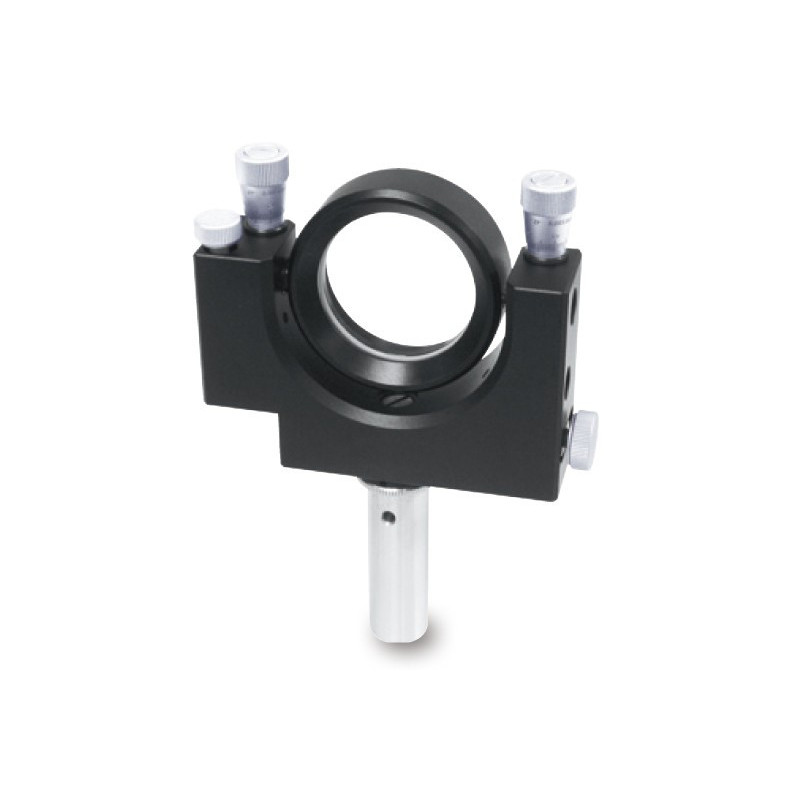

OSE-LMHA: Vertical Control Gimbal Mirror Holders

Reference number: OSE-LMHA-30

Option

Compatible Optics Diameter

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 2 - 6
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.6
Fine adjustment range /rotation [°/rotation]: about 0.6
Weight [kg]: 0.53
