Reference number: CUT-FTH

The FTH4-1000MS is an IEEE802.3ah OAM compliant copper to fiber Gigabit Ethernet solution designed to make conversion between 10/100/1000Base-T and 100/1000Base-X with SFP based fiber optics.

alt

Need more info?
Contact our expert.

Network Technology Team
Phone: +49 8153 405-11

Description

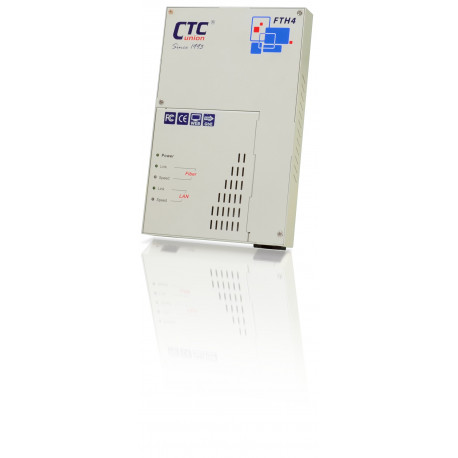

FTH4-1000MS

Web Smart GbE OAM/IP Managed Converter with Cable Tray

The FTH4-1000MS has a built-in cable tray that allows the installer to enclose the excessive fiber within the converter. When deployed as a stand-alone solution, this media converter incorporates an easy to use Web user interface for operation, administration and maintenance, both locally and remotely. By offering IEEE802.3ah OAM compliance, this converter can be linked to any IEEE802.3ah compliant fiber switch and support loop back and dying gasp functions. All functions of this converter and the remotely connected converter can be configured and monitored via Web management, including bandwidth control, duplex, speed and VLAN configuration.
  • 10/100/1000Base-T to 100/1000Base-X
  • Forwarding 9k bytes Jumbo Packet
  • Built-in fiber cable tray
  • Ingress/Egress Bandwidth control
  • Supports 802.3ah OAM/IP In-band management
  • Firmware upgrade via Web
  • Dying gasp (remote power failure detection)
  • Supports Link Fault Pass-Through (LFPT) Function
  • Supports Auto Laser Shutdown (ALS) Function
  • Allow IP settings via Web management
  • Supports On-Line F/W upgrade (local) by the Web manager
  • Supports 16 Tag VLAN Group
  • RMON counters
  • Auto-Cross over for MDI/MDIX in TP port
  • Auto-Negotiation or Manual mode in TP port
  • Supports flow control Enable or Disable

Fiber to the Home Triple-Play Application

Fiber to the Home Triple-Play Application
