Phrontier PHIRE - Compact Camera Link Fiber Adapter (Base)

search
  • phire.jpg
  • phiresetup.jpg

Reference number: PHT-PHIRE

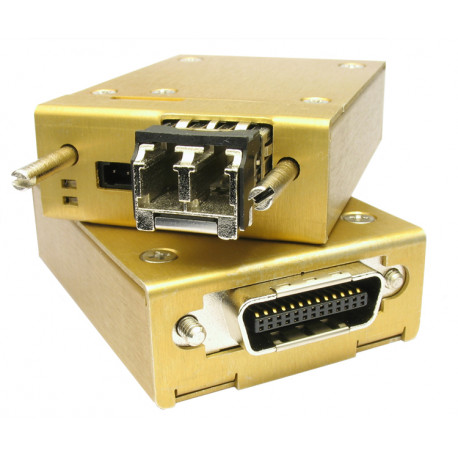

Compact Camera Link fiber adapter for direct plugging into the camera and framegrabber. Only supports the Base Camera Link configuration.

alt

Need more info?
Contact our expert.

Machine Vision Team

Description

PHIRE Camera Link Fiber Adapter, PoCL

Your application is space and cost sensitive? The PHIRE product reaches transmission distances of up to 10 km at 85 MHz and is compatible with PoCL.

Key features

  • Supports all Camera Link Base configurations
  • Up to 2.5 Gb/s effective transmission bandwidth
  • Plugs directly into cameras and framegrabbers without any Camera Link cables, saving both space and cost (MDR26 or SDR26 with adapter)
  • Single 5~24 VDC power supply
  • Optional: One or two LC duplex fiber interfaces
  • Transmission distance - up to 250 m (multi-mode) and 10 km (single-mode)
  • Compact size (LxWxH) - 59.1 mm x 39.4 mm x 17 mm
  • Optional: Extended temperature range (-40 to 70°C)



Available models



2 fibers, Base  (OEM Board available) 1 fiber, Base
Model
Description
Model
Description
PHR-85-M020
24 bit, 85MHz, multi-mode, up to 200 m
PHL-85-S07
24 bit, 85MHz, single-mode, up to 5 km

PHR-85-M025

16 bit, 85MHz, multi-mode, up to 250 m PHL-85-M25 24 bit, 85MHz, multi-mode, up to 250 m
PHR-85-S07 24 bit, 85MHz,  single mode, up to 7 km PHL-85-S10 16 bit, 85MHz,  single mode, up to 10 km
PHR-85-S10 16 bit, 85MHz,  single mode, up to 10 km PHL-85-M50 16 bit, 85MHz, multi-mode, up to 500 m
PHR-68-M025 24 bit, 68MHz, multi-mode, up to 250 m PHL-68-S10 24 bit, 68MHz,  single mode, up to 15 km
PHR-68-S10 24 bit, 68MHz,  single mode, up to 10 km PHL-68-M50 24 bit, 68MHz, multi-mode, up to 500 m


Included items

  • 1x PHIRE-CM transmitter)
  • 1x PHIRE-FG (receiver)
  • 2x 12V DC output international wall mount AC/DC adapters
