Phrontier MINI PHIRE - Most compact Camera Link Fiber Adapter (Base)

search

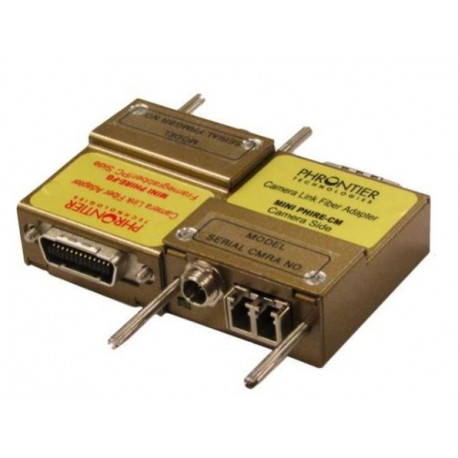

  • phiresinglefiber.jpg

Reference number: PHT-MINI-PHIRE

Most compact Camera Link fiber adapter for direct plugging into the camera and framegrabber. Only supports the Base Camera Link configuration.

alt

Need more info?
Contact our expert.

Machine Vision Team

Description

Mini-PHIRE Camera Link Fiber Adapter, PoCL

The smaller version of the PHIRE product. The MINI PHIRE product reaches transmission distances of up to 10 km at 85 MHz and is compatible with PoCL.

Key features

  • Supports all Camera Link Base configurations
  • Up to 2.5 Gb/s effective transmission bandwidth
  • Plugs directly into cameras and framegrabbers without any Camera Link cables, saving both space and cost (MDR26 or SDR26 with adapter)
  • Single 5~24 VDC power supply
  • Two LC duplex fiber interfaces
  • Transmission distance - up to 250 m (multi-mode) and 10 km (single-mode)
  • Compact size (LxWxH) - 47 mm x 39 mm x 20 mm



Available models

Model Description
PHM-85-M30 24 bit, 85 MHz, up to 300 m (multi-mode)
PHM-85-S02 24 bit, 85 MHz, up to 2 km (single-mode)

included items

  • 1x PHIRE-CM (transmitter)
  • 1x PHIRE-FG (receiver)
  • 2x 12V DC output international wall mount AC/DC adapters
