Phrontier PHLY - Mini Camera Link Repeater, PoCL

search

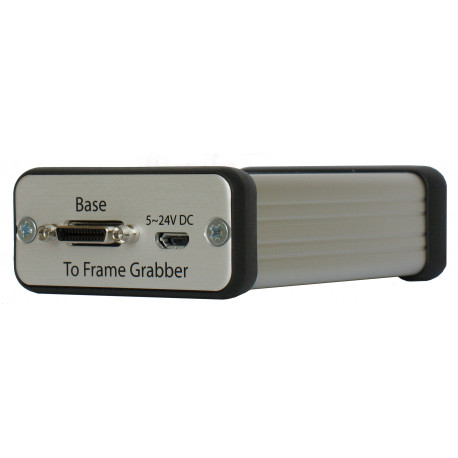

  • phly007b.jpg

Reference number: PHT-PHLY

Compact Camera Link Repeater to double the link distance. Fully supports all Camera Link configurations: Base, Medium and Full.

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

The universal Repeater for CameraLink

The PHLY product family regenerates signals for Camera Link cameras and frame grabbers to double the link distance. It is fully compatible with Base, Medium and Full configurations up to 85MHz pixel clocks. Separate modules for Base and Full configurations provide easy upgrade path from Base to Full configuration with cost savings. Flexible power supply options include PoCL pass-through, PoCL sharing and PoCL enable functions for PoCL compatible cameras and frame grabbers. PHLY also offers an option for supplying power to camera when frame grabber does not have PoCL function. Compact size, light weight and low cost make PHLY an ideal solution for Camera Link repeater.

  • Fully supports Camera Link cameras/framegrabbers up to 85MHz pixel clock
  • Plug-and-Play, no programming required
  • PoCL pass-through function allows PoCL compatible cameras to withdraw power from frame grabbers while PHLY power is supplied by its own DC input
  • PoCL sharing function allows PoCL compatible cameras and PHLY to share power from frame grabbers
  • PoCL enable function allows PHLY to withdraw power from frame grabber while camera is not PoCL compatible
  • Optional power supply to camera when frame grabber does not have PoCL function
  • Single 5V~24V DC power supply




A set consits of:
1x PHLY box
1x User manual

A PHT-PHLY-Bx, consisting of one unit, can be upgraded by the PHT-PHLY-Ux for Medium and Full Cameras.
