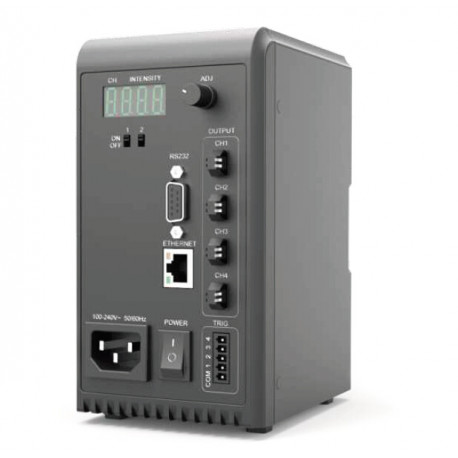

OPT-DPA2024E Digital Current Controller

OPT-DPA2024E Digital Current Controller
search
  • OPT-DPA2024E Digital Current Controller
  • OPT-DPA2024E Digital Current Controller
  • OPT-DPA2024E Digital Current Controller
  • OPT-DPA2024E Digital Current Controller

Reference number: OPT-DPA2024E

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description



Part number

Channels

Compatible LED-Light

OPT-DPA1024E-4

4

10mA~1A 24V light

OPT-DPA2024E-4

10mA~2A 24V light

OPT-DPA1024E-8

8

10mA~1A 24V light

OPT-DPA2024E-8

10mA~2A 24V light

OPT-DPA1024E-16

16

10mA~1A 24V light

OPT-DPA2024E-16

10mA~2A 24V light



Product Features:

  • Programmable trigger mode available, 32 steps at max; trigger source, intensity and trigger pulse width of each step can be set
  • Autosense of rated current for LED light
  • Trigger response time ≤ 15 µs
  • Max trigger frequency up to 20 KHz
  • Simultaneous communication of multiple channels available
  • Manual setting for max output current
  • 256 light intensity levels
  • Trigger signal input: connect an external signal source (e.g. a camera trigger signal) to strobe the LED light, and extend life span of light
  • Support RS232 communication
  • Support 100 M Ethernet communication
  • Temperature controlled fan, longer life span
  • Withstanding high voltage (AC1500V 1 min, leak current < 10mA)
  • High insulation resistance (DC500V > 20 MΩ)
  • Easy to install: screw and DIN rail mounting available
