Reference number: GEE-GEILD

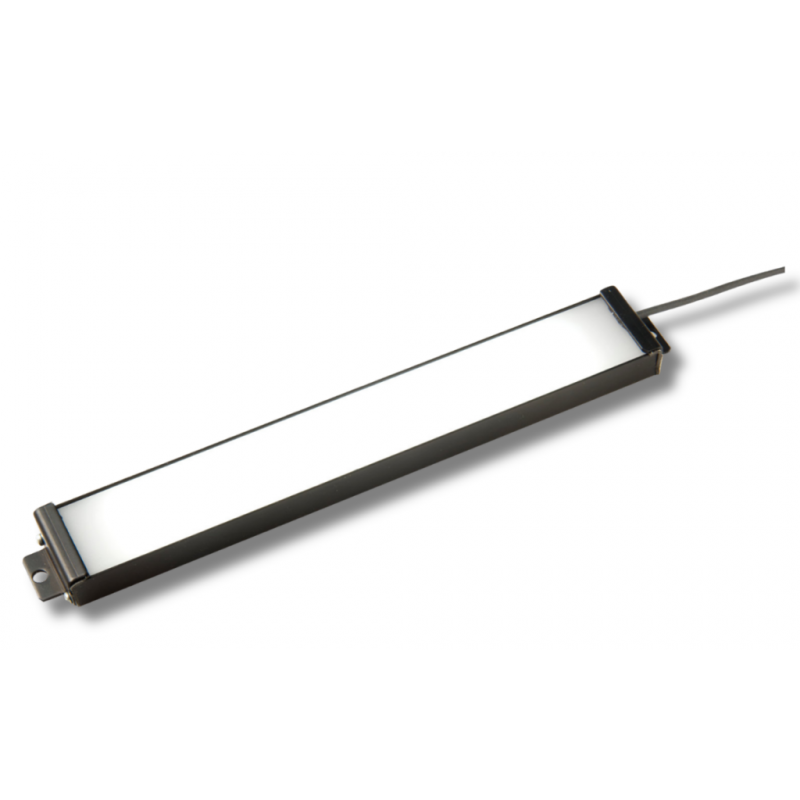

Led Bar lighting Solution GEILD is developed for applications in which small, medium and large surfaces and/or the interior of machines and work centres need to be illuminated. In addition, it can be employed in camera vision systems. Diffused, fixed or strobe light illuminator with logic start.
Need more info?
Contact our expert.
Our Team
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
|
Lighting type |
Bar |
|
Optical properties |
|
|
Lightcolor |
6K, 4K, IR850, IR940, UV365-405, Red, Blue, Green, RGB, SWIR custom |
|
Useful length [mm] |
30 - 6000 mm |
|
Beam angle [°] |
120 |
|
Cover variants |
Transparent, Opaline, Semi-Opaline Black Finish, Satin, Polarizing Transparent, Polarizing Opaline, Customized |
|
Typical luminous flux [lm] |
240 - 7,200 / 480 – 14,400 |
|
Electrical properties |
|
|
Supply voltage [V] |
24 +/- 10% |
|
Power consumption [W] |
1.6 - 48.0 / 3.2 – 96.0 |
|
Supply connection |
Standard, M8, M12, S, M8S, M12S, 5M, 5MS, custom |
|
Mechanical properties |
|
|
dimensions |
see datasheet |
|
Working temperature range [°C] |
-35 to +55 |
|
IP rating |
65 |
Led Bar lighting Solution GEILD is developed for applications in which small, medium and large surfaces and/or the interior of machines and work centres need to be illuminated. In addition, it can be employed in camera vision systems. Diffused, fixed or strobe light illuminator with logic start.
