Reference number: EVT-LT-XXX

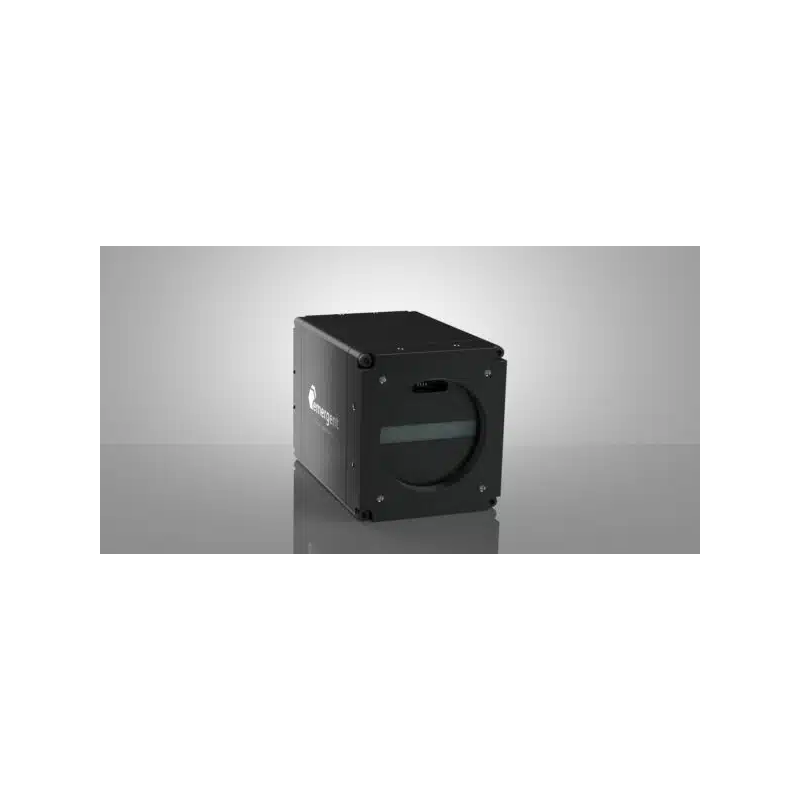

Fast industrial line-scan cameras for up to 137 kHz linerate and 10 GigE interface, offering resolution of 8k per line, monochrome, single line or trilinear, based on Gpixel image sensors.
Need more info?
Contact our expert.
Machine Vision Team
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
The Accel series of 10 GigE line scan cameras offers line rates up to 137 kHz.
High resolution of 8k per line make the cameras ideal for industrial applications demanding the highest levels of
Interface is 10 GigE 10BaseT (RJ45).
Extremely low host system load thanks to optimized GigE Vision GVSP technology – True Zero Copy.
Ready for GigE Vision 3.0/RDMA.
Available resolutions range from 0.5 to 25 megapixels.
Wide range of image sensors featuring Sony.
All cameras are compliant with standards GigE Vision and GenICam.
| Chroma | Resolution | Line Rate | Tri Rate | Interface | Sensor Name | Pixel Size | |
| LT-8KG-M | Mono | 8Kx16 | 137KHz | 45KHz | 10GigE RJ45 | Gpixel GL0816 | 5×5µm |
| LT-8KG-C | Color | 8Kx16 | 137KHz | 45KHz | 10GigE RJ45 | Gpixel GL0816 | 5×5µm |
