Pinnacle Ultra High Speed Line Scan Camera 100GigE

search

Reference number: EVT-LZ-XXX

Ultra-fast industrial line-scan cameras for up to 1000 kHz linerate and 100 GigE interface, offering resolutions from 8k to 16k per line, monochrome, single line or trilinear, based on Gpixel image sensors.

alt

Need more info?
Contact our expert.

Machine Vision Team

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

Logo Emergent

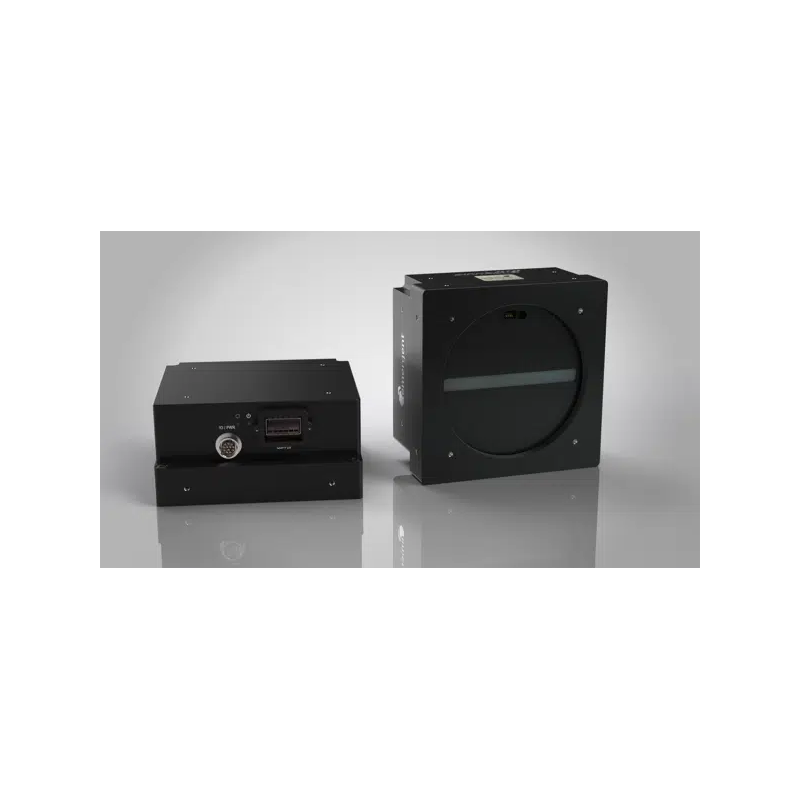

The pinnacle series of 100 GigE line scan cameras offers line rates up to 1000 kHz.

High resolutions of 8k to 16k per line make the cameras ideal for industrial applications demanding the highest levels of

  • speed
  • resolution
  • low noise
  • reliability in industrial environments
  • multi-camera synchronization (sync signal/PTP)

Extremely low host system load thanks to optimized GigE Vision GVSP technology – True Zero Copy.

Ready for GigE Vision 3.0/RDMA.

Available resolutions range from 0.5 to 25 megapixels.

Wide range of image sensors featuring Sony.

All cameras are compliant with standards GigE Vision and GenICam.

Chroma Resolution Frame Rate Interface Sensor Name Pixel Size
HE-5300-S-I SWIR 5.24MP 131.9fps 1, 2.5, 5, 10GigE Sony IMX992 3.45×3.45µm
HE-3200-S-I SWIR 3.14MP 173.4fps 1, 2.5, 5, 10GigE Sony IMX993 3.45×3.45µm
HE-1300-S-I SWIR 1.31MP 134.7fps 1, 2.5, 5, 10GigE Sony IMX990 5×5µm
HE-300-S-I SWIR 0.33MP 258.8fps 1, 2.5, 5, 10GigE Sony IMX991 5×5µm
HE-500-S-M Mono 0.5MP 1586fps 1, 2.5, 5, 10GigE Sony IMX426 9×9µm
HE-500-S-C Color 0.5MP 1586fps 1, 2.5, 5, 10GigE Sony IMX426 9×9µm
HE-1800-S-M Mono 1.76MP 660fps 1, 2.5, 5, 10GigE Sony IMX425 9×9µm
HE-1800-S-C Color 1.76MP 660fps 1, 2.5, 5, 10GigE Sony IMX425 9×9µm
HE-2000-S-M Mono 2.01MP 242.5fps 1, 2.5, 5, 10GigE Sony IMX422 4.5×4.5µm
HE-2000-S-C Color 2.01MP 242.5fps 1, 2.5, 5, 10GigE Sony IMX422 4.5×4.5µm
HE-2800-S-M Mono 2.8MP 205fps 1, 2.5, 5, 10GigE Sony IMX421 4.5×4.5µm
HE-2800-S-C Color 2.8MP 205fps 1, 2.5, 5, 10GigE Sony IMX421 4.5×4.5µm
HE-3000-S-M Mono 3.2MP 108fps 1, 2.5, 5, 10GigE Sony IMX252LLR 3.45×3.45µm
HE-3000-S-C Color 3.2MP 108fps 1, 2.5, 5, 10GigE Sony IMX252LQR 3.45×3.45µm
HE-5000-S-M Mono 5MP 163fps 1, 2.5, 5, 10GigE Sony IMX250LLR 3.45×3.45µm
HE-5000-S-C Color 5MP 163fps 1, 2.5, 5, 10GigE Sony IMX250LQR 3.45×3.45µm
HE-5000-S-PM Mono Polarized 5MP 163fps 1, 2.5, 5, 10GigE Sony IMX250MZR 3.45×3.45µm
HE-5000-S-PC Color Polarized 5MP 163fps 1, 2.5, 5, 10GigE Sony IMX250MYR 3.45×3.45µm
HE-5000-SBL-M Mono 5.1MP 99fps 1, 2.5, 5, 10GigE Sony IMX547 2.74×2.74μm
HE-5000-SBL-C Color 5.1MP 99fps 1, 2.5, 5, 10GigE Sony IMX547 2.74×2.74μm
HE-7000-S-M Mono 7.06MP 170fps 1, 2.5, 5, 10GigE Sony IMX420 4.45×4.45µm
HE-7000-S-C Color 7.06MP 170fps 1, 2.5, 5, 10GigE Sony IMX420 4.45×4.45µm
HE-8000-S-M Mono 8.9MP 110fps 1, 2.5, 5, 10GigE Sony IMX255LLR 3.45×3.45µm
HE-8000-S-C Color 8.9MP 110fps 1, 2.5, 5, 10GigE Sony IMX255LQR 3.45×3.45µm
HE-8000-SB-U UV 8.1MP 145fps 1, 2.5, 5, 10GigE Sony IMX487 2.74×2.74μm
HE-8000-SBL-M Mono 8.1MP 73fps 1, 2.5, 5, 10GigE Sony IMX546 2.74×2.74μm
HE-8000-SBL-C Color 8.1MP 73fps 1, 2.5, 5, 10GigE Sony IMX546 2.74×2.74μm
HE-12000-S-M Mono 12MP 80fps 1, 2.5, 5, 10GigE Sony IMX253LLR 3.45×3.45µm
HE-12000-S-C Color 12MP 80fps 1, 2.5, 5, 10GigE Sony IMX253LQR 3.45×3.45µm
HE-12000-S-PM Mono Polarized 12MP 80fps 1, 2.5, 5, 10GigE Sony IMX253MZR 3.45×3.45µm
HE-12000-S-PC Color Polarized 12MP 80fps 1, 2.5, 5, 10GigE Sony IMX253MYR 3.45×3.45µm
HE-12000-SBL-M Mono 12.4MP 68fps 1, 2.5, 5, 10GigE Sony IMX545 2.74×2.74μm
HE-12000-SBL-C Color 12.4MP 68fps 1, 2.5, 5, 10GigE Sony IMX545 2.74×2.74μm
HE-16000-SBL-M Mono 16.13MP 52fps 1, 2.5, 5, 10GigE Sony IMX542 2.74×2.74μm
HE-16000-SBL-C Color 16.13MP 52fps 1, 2.5, 5, 10GigE Sony IMX542 2.74×2.74μm
HE-20000-SBL-M Mono 20.28MP 43fps 1, 2.5, 5, 10GigE Sony IMX541 2.74×2.74μm
HE-20000-SBL-C Color 20.28MP 43fps 1, 2.5, 5, 10GigE Sony IMX541 2.74×2.74μm
HE-25000-SBL-M Mono 24.47MP 35fps 1, 2.5, 5, 10GigE Sony IMX540 2.74×2.74μm
HE-25000-SBL-C Color 24.47MP 35fps 1, 2.5, 5, 10GigE Sony IMX540 2.74×2.74μm
Model Chroma Resolution Frame Rate Interface Sensor Name Pixel Size
HB-500-S-M Mono 0.5MP 1594.7fps 25GigE SFP28 Sony IMX426 9×9µm
HB-500-S-C Color 0.5MP 1594.7fps 25GigE SFP28 Sony IMX426 9×9µm
HB-1800-S-M Mono 1.76MP 662.1fps 25GigE SFP28 Sony IMX425 9×9µm
HB-1800-S-C Color 1.76MP 662.1fps 25GigE SFP28 Sony IMX425 9×9µm
HB-2000-S-M Mono 2.01MP 477.6fps 25GigE SFP28 Sony IMX422 4.5×4.5µm
HB-2000-S-C Color 2.01MP 477.6fps 25GigE SFP28 Sony IMX422 4.5×4.5µm
HB-2800-S-M Mono 2.8MP 409.2fps 25GigE SFP28 Sony IMX421 4.5×4.5µm
HB-2800-S-C Color 2.8MP 409.2fps 25GigE SFP28 Sony IMX421 4.5×4.5µm
HB-5000-G-M Mono 5.61MP 290fps 25GigE SFP28 Gpixel GMAX2505 2.5×2.5µm
HB-5000-G-C Color 5.61MP 290fps 25GigE SFP28 Gpixel GMAX2505 2.5×2.5µm
HB-5000-SB-M Mono 5.1MP 269fps 25GigE SFP28 Sony S IMX537 2.74×2.74μm
HB-5000-SB-C Color 5.1MP 269fps 25GigE SFP28 Sony S IMX537 2.74×2.74μm
HB-7000-S-M Mono 7.06MP 207.1fps 25GigE SFP28 Sony IMX420 4.5×4.5µm
HB-7000-S-C Color 7.06MP 207.1fps 25GigE SFP28 Sony IMX420 4.5×4.5µm
HB-8000-SB-M Mono 8.1MP 201fps 25GigE SFP28 Sony S IMX536 2.74×2.74μm
HB-8000-SB-C Color 8.1MP 201fps 25GigE SFP28 Sony S IMX536 2.74×2.74μm
HB-8000-SB-U UV 8.1MP 201fps 25GigE SFP28 Sony S IMX487 2.74×2.74μm
HB-9000-G-M Mono 9.07MP 290fps 25GigE SFP28 Gpixel GMAX2509 2.5×2.5µm
HB-9000-G-C Color 9.07MP 290fps 25GigE SFP28 Gpixel GMAX2509 2.5×2.5µm
HB-12000-M Mono 12MP 188fps 25GigE SFP28 AMS CMV12000 5.5×5.5µm
HB-12000-C Color 12MP 188fps 25GigE SFP28 AMS CMV12000 5.5×5.5µm
HB-12000-SB-M Mono 12.4MP 192fps 25GigE SFP28 Sony S IMX535 2.74×2.74μm
HB-12000-SB-C Color 12.4MP 192fps 25GigE SFP28 Sony S IMX535 2.74×2.74μm
HB-16000-SB-M Mono 16.13MP 145fps 25GigE SFP28 Sony S IMX532 2.74×2.74μm
HB-16000-SB-C Color 16.13MP 145fps 25GigE SFP28 Sony S IMX532 2.74×2.74μm
HB-17000-S-M Mono 16.8MP 61fps 25GigE SFP28 Sony IMX387 3.45×3.45µm
HB-17000-S-C Color 16.8MP 61fps 25GigE SFP28 Sony IMX387 3.45×3.45µm
HB-18000-G-M Mono 18.5MP 125fps 25GigE SFP28 Gpixel GMAX2518 2.5×2.5µm
HB-18000-G-C Color 18.5MP 125fps 25GigE SFP28 Gpixel GMAX2518 2.5×2.5µm
HB-20000-S-M Mono 19.5MP 43fps 25GigE SFP28 Sony IMX367 3.45×3.45µm
HB-20000-S-C Color 19.5MP 43fps 25GigE SFP28 Sony IMX367 3.45×3.45µm
HB-20000-SB-M Mono 20.28MP 100fps 25GigE SFP28 Sony S IMX531 2.74×2.74μm
HB-20000-SB-C Color 20.28MP 100fps 25GigE SFP28 Sony S IMX531 2.74×2.74μm
HB-25000-G-M Mono 26.21MP 75fps 25GigE SFP28 Gpixel GMAX0505 2.5×2.5µm
HB-25000-G-C Color 26.21MP 75fps 25GigE SFP28 Gpixel GMAX0505 2.5×2.5µm
HB-25000-SB-M Mono 24.47MP 98fps 25GigE SFP28 Sony S IMX530 2.74×2.74μm
HB-25000-SB-C Color 24.47MP 98fps 25GigE SFP28 Sony S IMX530 2.74×2.74μm
HB-30000-S-M Mono 31.36MP 35.4fps 25GigE SFP28 Sony IMX342 3.45×3.45µm
HB-30000-S-C Color 31.36MP 35.4fps 25GigE SFP28 Sony IMX342 3.45×3.45µm
HB-50000-M Mono 50MP 30fps 25GigE SFP28 AMS CMV50000 4.6×4.6µm
HB-50000-C Color 50MP 30fps 25GigE SFP28 AMS CMV50000 4.6×4.6µm
HB-65000-G-M Mono 65MP 35fps 25GigE SFP28 Gpixel GMAX3265 3.2×3.2µm
HB-65000-G-C Color 65MP 35fps 25GigE SFP28 Gpixel GMAX3265 3.2×3.2µm
HB-127-S-M Mono 127.7MP 17fps 25GigE SFP28 Sony IMX661 3.45×3.45µm
HB-127-S-C Color 127.7MP 17fps 25GigE SFP28 Sony IMX661 3.45×3.45µm
