Reference number: GEE-GH

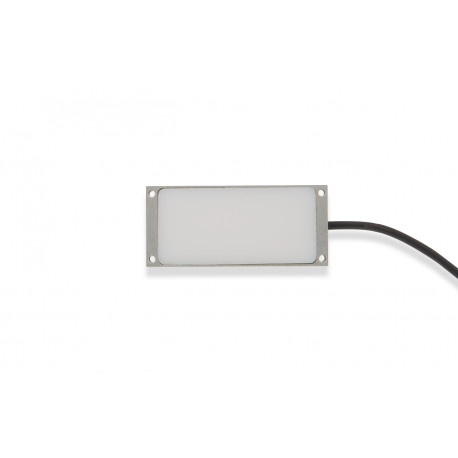

Genesi backlight panels for cameras and diffused light illuminators, continuous or strobe use, standard and custom dimensions.
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
|
Lighting type |
Backlight |
|
Optical properties |
|
|
Lightcolor |
3K, 4K, 6K, Red, Green, custom |
|
Useful length [mm] |
see datasheet |
|
Beam angle [°] |
120 |
|
Cover lens variants |
Opaline |
|
Typical luminous flux [lm] |
30,000 |
|
Electrical properties |
|
|
Supply voltage [V] |
24 +/- 10% |
|
Power consumption [W] |
2.4 -25.2 |
|
Supply connection |
Standard, M8, M12, S, M8S, M12S, 5M, 5MS, custom |
|
Mechanical properties |
|
|
dimensions |
see datasheet |
|
Working temperature range [°C] |
0 to +40 |
|
IP rating |
60, 67 |
