Reference number: GEE-GH

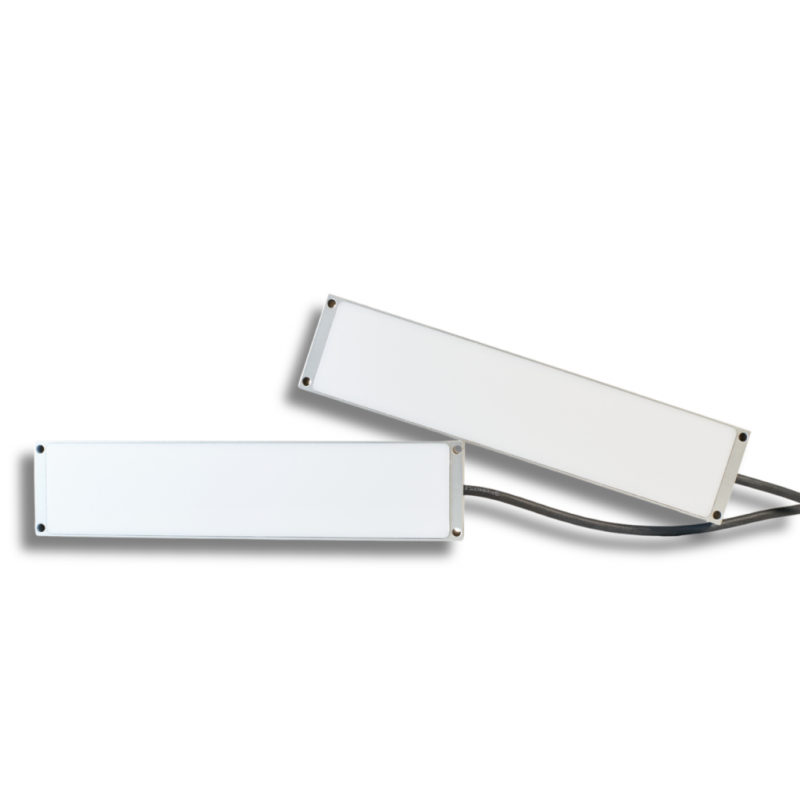

LED lighting solution for applications with backlight panels for cameras and small to medium diffused light illuminators, fixed use or strobe light illuminator with logic start.
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
|
Lighting type |
Backlight |
|
Optical properties |
|
|
Lightcolor |
3K, 4K, 6K, Red, Green, custom |
|
Useful length [mm] |
see datasheet |
|
Beam angle [°] |
120 |
|
Cover lens variants |
Opaline |
|
Typical luminous flux [lm] |
30,000 |
|
Electrical properties |
|
|
Supply voltage [V] |
24 +/- 10% |
|
Power consumption [W] |
2.4 -25.2 |
|
Supply connection |
Standard, M8, M12, S, M8S, M12S, 5M, 5MS, custom |
|
Mechanical properties |
|
|
dimensions |
see datasheet |
|
Working temperature range [°C] |
0 to +40 |
|
IP rating |
60, 67 |
