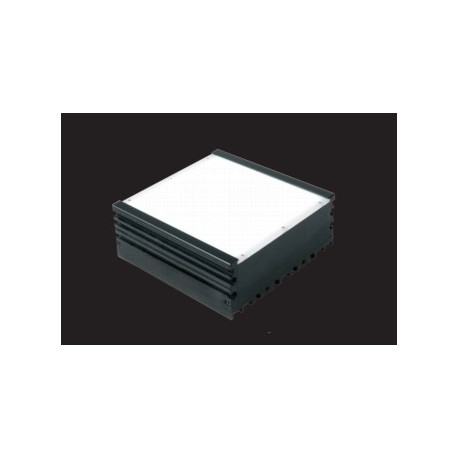

OPT-FLG High Power Backlights
Reference number: OPT-FLG
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
Product Features:
- Using high-power SMD LEDs, special design for heat sink on around and bottom, suitable for applications required short exposure time
- Can provide uniform illumination for large area
- Size can be customized freely
- 1.5 times intensity of the standard series
|
Part number |
Dimensions [mm] |
Color [c] |
Emmiting Surface [mm] |
Output [W] |
Compatible Controller |
|
OPT-FLG100-[c] |
100 x 100 |
R / G / B / W |
90 x 86 |
15.6/ 15.6 / 15.6 / 15.6 |
|
|
OPT-FLG150-[c] |
150 x 150 |
R / G / B / W |
140 x 136 |
28.8 / 38.4 / 38.4 / 38.4 |
|
|
OPT-FLG200-[c] |
200 x 200 |
R / G / B / W |
186 x 190 |
18 / 38.4 / 38.4 / 38.4 |
|
|
OPT-FLG300-[c] |
300 x 300 |
R / G / B / W |
290 x 286 |
48 / 72 / 72 / 72 |
