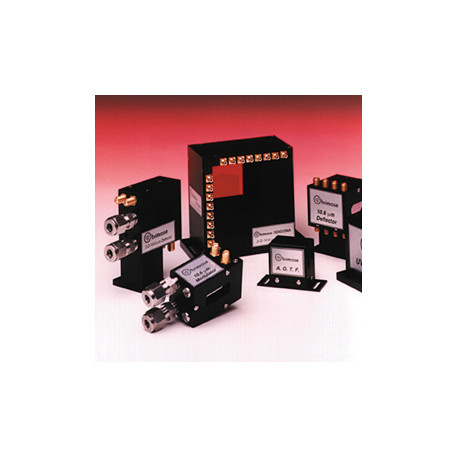

Acousto Optical Cavity Dumpers

Reference number: BRI-AO-Cavity Dumper
Acousto Optical Cavity Dumpers
Reference number: BRI-AO-Cavity Dumper
Acousto Optical Cavity Dumpers
Need more info?
Contact our expert.
Laser & Light Sources Team
Phone: +49 8153 405-11
Description
Wavelengths: 250 nm to 800 nm
Center Frequencies: 250 MHz to 380 MHz
Active Apertures: 0,3 mm to 0,1 mm
Rise Time: 20 ns bis 5,8 ns
Modulation Bandwidths: 50 MHz to 95 MHz
Optical Transmission: 95% to 98%
Diffraction Efficiencies: 30% to 70%
Bragg Angle: 1,4 mrad to 36 mrad
Separation Angle: 2,8 mrad to 72 mrad
RF Power: 1 W to 10 W
Drivers are available optimized for each cavity dumper.
For more details please see the datasheet in the download section on the right hand side.
