  • Raman Immersion Shaft

Reference number: BWT-RIS100

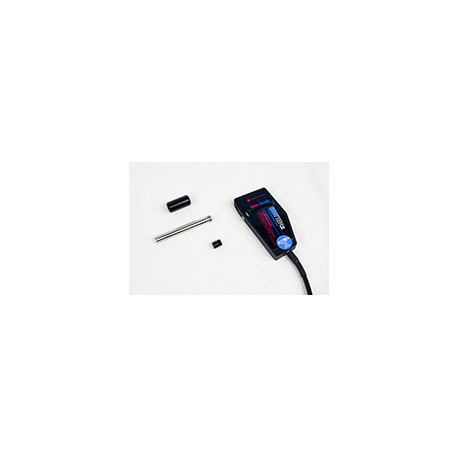

The immersion shaft can be used as replacement shaft for the BWT-BAC100 and BWT-BAC102 Raman probe

alt

Need more info?
Contact our expert.

Optical Test & Measurement Team
Phone: +49 8153 405-11

Description

Replacement Raman Immersion Shaft


The RIS100 optional immersion shaft is designed as a replacement shaft for our BAC100 and BAC102 Raman probe assemblies with excitation wavelengths 532nm, 785nm, and 1064 nm for performing immersion measurements.  It is ideal for observing kinetic reaction studies or dissolution testing via Raman spectroscopy because it can be submerged into a liquid sample.  Special effort was taken in designing this immersion shaft to guarantee that it is liquid tight and inert. It features a 76.2 mm long, 12.0 mm OD 316L stainless steel body, and a Kalrez O-ring sealed window. Working distance 6.5mm in air. Usable from -55 to 200°C. Seal is liquid tight under low pressure (< 1 bar).
