Reference number: OSE-MAC-04
This four axis stage controller with integrated micro-stepping motor drivers offer multiple control modes. It can be used via an USB interface, operated by other devices using TTL signals or manually controlled by jog switches.
Need more info?
Contact our expert.
Our Team
Need more info?
Contact our expert.
Optics & Optomechanics Team
Phone: +49 8153 405-11
Description

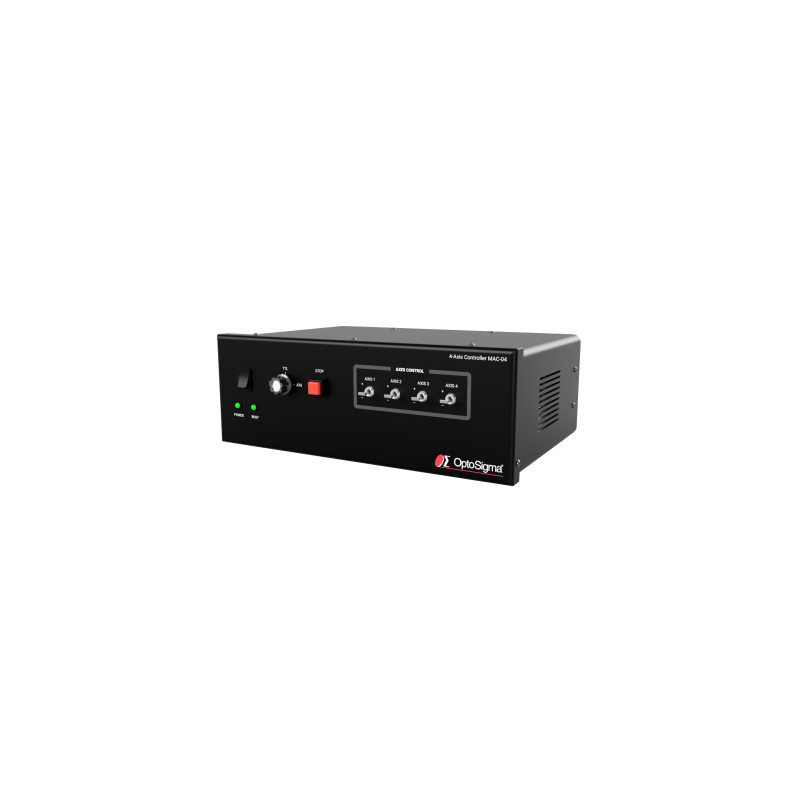

4-Axis Stepper Motor Controller, For 5-Phase Stepper Motors
Weight: 2.5600kgs
Driving Motor: 5-phase stepping motor
Number of Control Axes: 4 Axes
Power Supply: DC24 [V] / 6.5 [A]
AC adaptor: AC100 to 240 [V], 50/60 [Hz]
Rated Power: 156 [W]
Operating temperature: 5 to 40 [℃]
Storage temperature: -20 to 60 [℃]
External dimensions: 300 x 202 x 104 [mm]
Protection Mechanical: IEC 60529
Maximum driving speed (F) : 1 to 10000 [PPS]
Minimum driving speed (S) : 1 to 10000 [PPS]
Acceleration/deceleration time (R) : 1 to 1000 [ms]
Microstepping: Up to 250
Sensor input: Origin sensor/proximity sensor/CW (-) limit/CCW (+) limit
Method of return to origin: MINI method/MARK method/Standard method; Median point detection method/Not return origin (You can change method of ORG by Memory Switch)
EMC standards: UNE EN IEC 61326-1:2013; UNE EN IEC 61000-3-3:2013 +A1:2020; UNE EN IEC 61000—3-2:2019
Electrical safety standards: EN 61010-1:2010 + A1:2019 + AC:2019-04
This four axis stage controller with integrated micro-stepping motor drivers offer multiple control modes. It can be used via an USB interface, operated by other devices using TTL signals or manually controlled by jog switches.
