SCT-350H Chopping Head

search

Reference number: SCT-350H

Chopping head suitable for use with the SCT-350CD system

alt

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

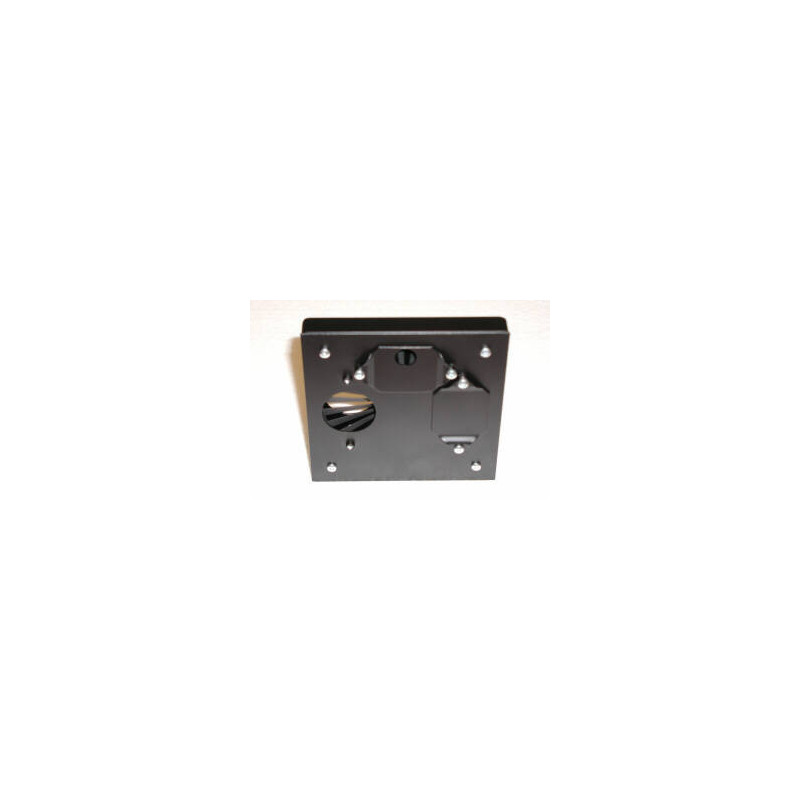

The SCT-350H chopping head completely encloses the chopping disc, drive motor and reference pick-up. Three optical apertures of 9 mm diameter provide flexibility in beam positioning. The chopper head has an M8 threaded hole in its base for mounting on an optical stalk (bench rod). Mountings are provided to enable parts, such as a high frequency accessory or blade protector, to be attached. For lower frequency operation, the chopper head can be fitted with a reduction gearbox motor.

Specifications

  • Motor: 5 pole DC motor, sleeve bearings with more than 5000 hours lifetime, 0 - 15000 rpm reversible
  • Reference pick-up: IR led and phototransistor pair with Schmitt trigger.
  • Dimensions: 50 (H) x 32 (L) x 37 (W) mm.
  • Mounting: Optical stalk or bolt with M8 thread
