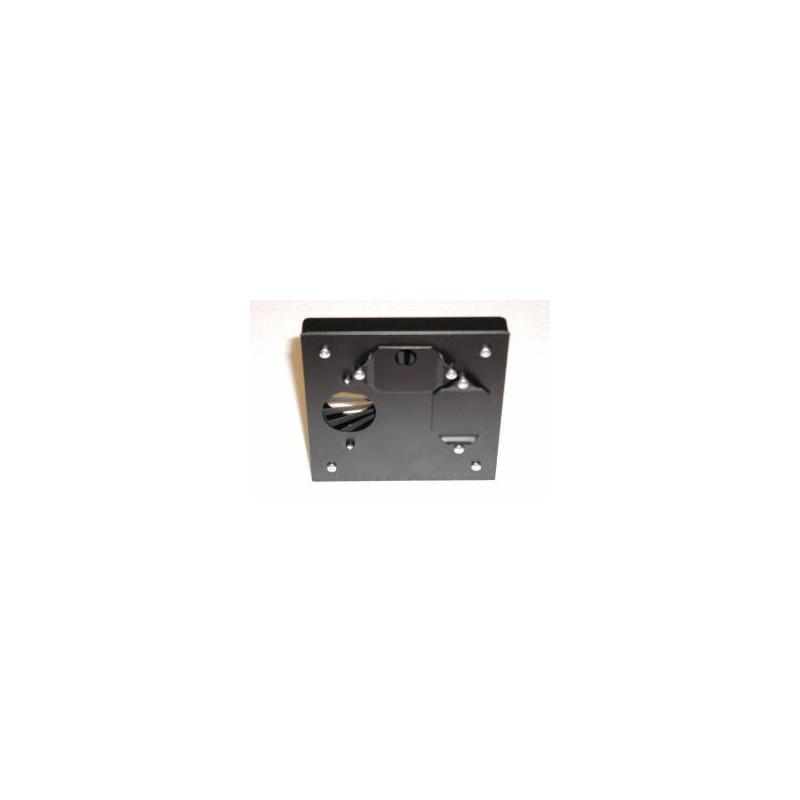

SCT-340H Chopping Head
Reference number: SCT-340H
Chopping head suitable for use with the SCT-340CD system
€1,481.00
Tax excluded
Need more info?
Contact our expert.
Optics & Optomechanics Team
Phone: +49 8153 405-11
Description
Chopping head suitable for use with the SCT-340CD system
Specifications
- Motor: 11 pole DC motor, sleeve bearings with more than 6000 hours lifetime, 0 - 6000 rpm reversible
- Reference pick-up: IR led and phototransistor pair with Schmitt trigger
- Dimensions: 122 (H) x 75 (L) x 40 (W) mm, without disc
- Mounting: Optical stalk - adjustable between 6.5 and 14.0 mm diameter. Mounting holes - 2 x 3 mm
