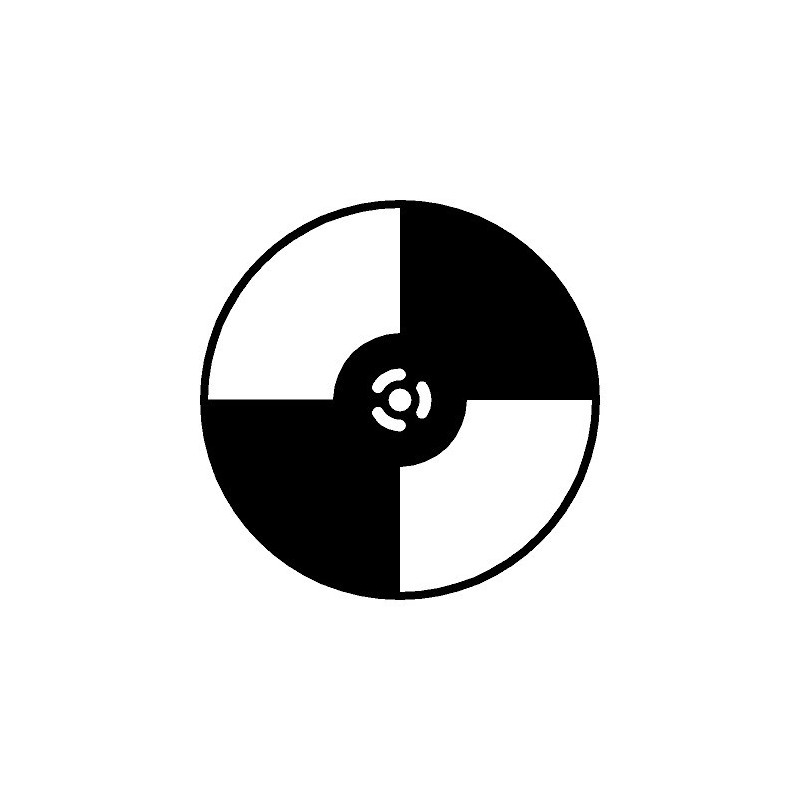

SCT-300D Set of Chopping Discs
Reference number: SCT-300D
1 set: One each of 2, 5, 10 and 30 slot 102 mm disc
Need more info?
Contact our expert.
Optics & Optomechanics Team
Phone: +49 8153 405-11
Description
SCT-300D Set of Chopping Discs
- Disc types: 2, 5, 10 and 30 slot
- Material: Half har brass, 0.5 mm thick
- Diameter: 102 mm
- Surface Finish: Chemically blacked
- Mark to Space Ratio: 1 to 1 with one blade
Frequency Range
| Disc | Frequency (Hz) | Aperture | Phase Jitter, Max | |||
| r | a | b | d | |||
| SCT-300D2 (2 slots) | 5 – 200 | 32.0 | 77.0 | 26.7 | 32.0 | ± 0.2° |
| SCT-300D5 (4 slots) | 12.5 – 500 | 32.0 | 30.8 | 10.7 | 23.1 | ± 0.5° |
| SCT-300D10 (10 slots) | 25 – 1000 | 32.0 | 15.4 | 5.4 | 13.2 | ± 1° |
| SCT-300D30 (30 slots) | 75 – 3000 | 32.0 | 5.1 | 1.8 | 4.8 | ± 3° |
1 set: One each of 2, 5, 10 and 30 slot 102 mm disc
