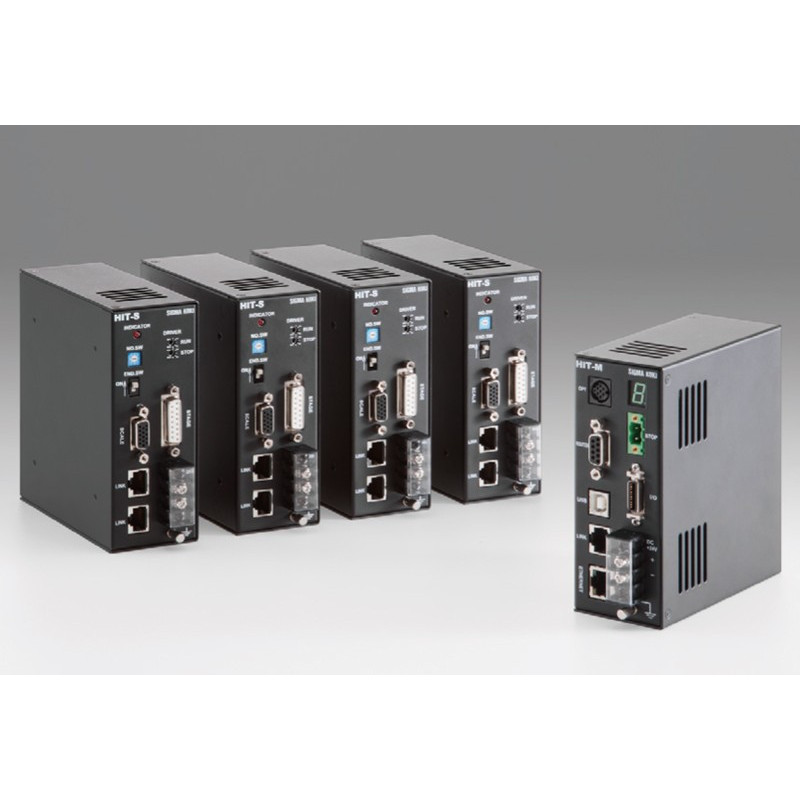

Extensible Stage Controller (Slave)

Description

• Controller Function:

• • No

• Number of Control Axes:

• • No

• Stored Program Control:

• • No

• Feedback Control:

• • No

• Circular Interpolation Control:

• • No

• Linear Interpolation Control:

• • No

• Driver Function:

• • Micro-step

• Micro-step (Max. Division):

• • 250

• Driving Current (A/phase):

• • 0.1-1.1

• Power Voltage:

• • DC24V1A

• Power Consumption:

• • 24VA

• Operating Temperature:

• • 5-40°C

• Storage Temperature:

• • ?? 20-60°C

• Ambient Humidity:

• • 20-80%RH

• External Dimensions (WxHxDmm):

• • 130x120x50

• Weight (kg):

• • 0.63

• GP-IB:

• • No

• RS232C:

• • Yes

• USB:

• • Yes

• Ethernet:

• • Yes

• CJ-200A:

• • No

• JS-300:

• • No

• JB-400:

• • No

• JD-100:

• • No

• SJT-02:

• • No

• Coordinate Indication Range:

• • No

• Max. Travel to Set:

• • 134,217,727

• Max. Driving Speed (pps):

• • 500000

• Min. Driving Speed (pps):

• • 4

• Acceleration/Deceleration Time (ms):

• • 1-1,000

• Origin Sensor:

• • Yes

• Proximity Sensor:

• • Yes

• CW (+) Limit:

• • Yes

• CCW (-) Limit:

• • Yes

• General Purpose Input:

• • 4 points

• General Purpose Output:

• • 4 points

• Control Input:

• • No

• Control Output:

• • No

• Trigger Output:

• • No

• Machine Origin Return:

• • Yes

• Theoretical Origin Setting:

• • Yes

• Relative Position Drive:

• • Yes

• Absolut Position Drive:

• • Yes

• Jog Operation:

• • Yes

• Position Appointment:

• • No

• Circular Interpolation Control:

• • Yes

• Liner Interpolation Control:

• • Yes

• Drive:

• • Yes

• Deceleration Stop:

• • Yes

• Emergency Stop:

• • Yes

• Speed Setting:

• • Yes

• Motor Free/Hold:

• • Yes

• Port Output:

• Yes
