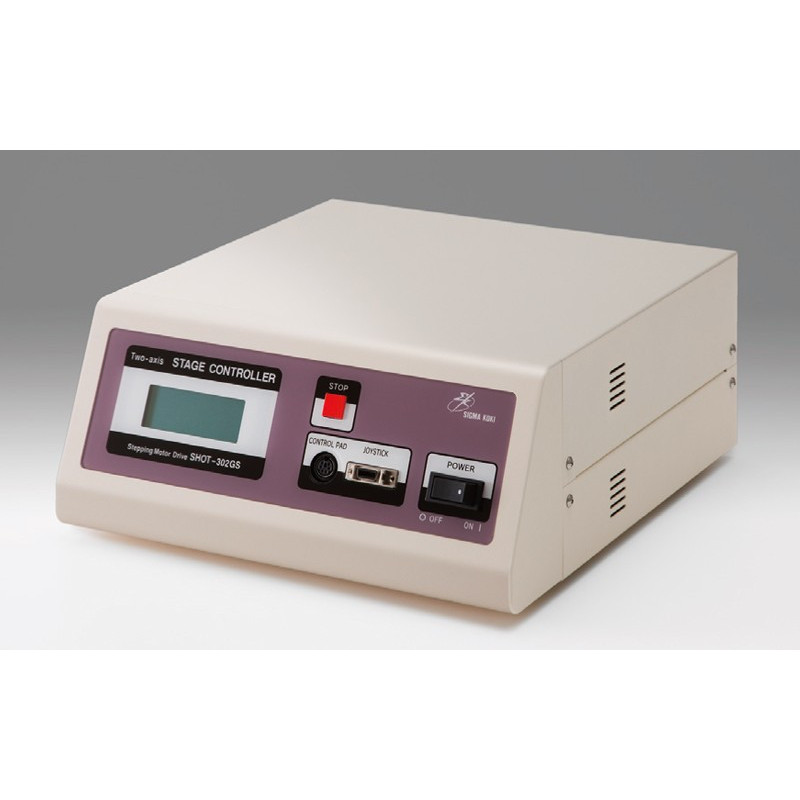

Two axis Stages Controller

Description

• Controller Function:

• • Yes

• Number of Control Axes:

• • 2

• Stored Program Control:

• • Yes

• Feedback Control:

• • GS

• Circular Interpolation Control:

• • Yes

• Linear Interpolation Control:

• • 2 axes

• Driver Function:

• • Micro-step

• Micro-step (Max. Division):

• • 250

• Driving Current (A/phase):

• • 0.25-1.4

• Power Voltage:

• • AC100-240V 50/60Hz

• Power Consumption:

• • 160VA

• Operating Temperature:

• • 5-40°C

• Storage Temperature:

• • ?? 20-60°C

• Ambient Humidity:

• • 20-80%RH

• External Dimensions (WxHxDmm):

• • 270x302x118

• Weight (kg):

• • 5.5

• GP-IB:

• • Yes

• RS232C:

• • Yes

• USB:

• • Yes

• Ethernet:

• • No

• CJ-200A:

• • Yes

• JS-300:

• • Yes

• JB-400:

• • Yes

• JD-100:

• • Yes

• SJT-02:

• • No

• Coordinate Indication Range:

• • ±999,999,999

• Max. Travel to Set:

• • 268,435,455

• Max. Driving Speed (pps):

• • 500000

• Min. Driving Speed (pps):

• • 1

• Acceleration/Deceleration Time (ms):

• • 0-1,000

• Origin Sensor:

• • Yes

• Proximity Sensor:

• • Yes

• CW (+) Limit:

• • Yes

• CCW (-) Limit:

• • Yes

• General Purpose Input:

• • 4 points

• General Purpose Output:

• • 4 points

• Control Input:

• • 15 points

• Control Output:

• • 5 points

• Trigger Output:

• • Yes

• Machine Origin Return:

• • Yes

• Theoretical Origin Setting:

• • Yes

• Relative Position Drive:

• • Yes

• Absolut Position Drive:

• • Yes

• Jog Operation:

• • Yes

• Position Appointment:

• • No

• Circular Interpolation Control:

• • Yes

• Liner Interpolation Control:

• • Yes

• Drive:

• • Yes

• Deceleration Stop:

• • Yes

• Emergency Stop:

• • Yes

• Speed Setting:

• • Yes

• Motor Free/Hold:

• • Yes

• Port Output:

• Yes
