Superior beam quality due to Powell lens technology. This modular system in the standard dimensions will also meet your individual requirements.

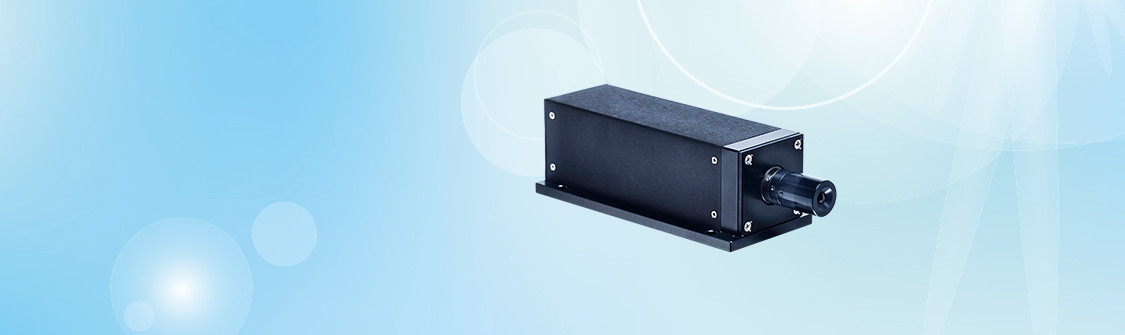

Laser diode modules
Laser diode modules
Special requirements are imposed on laser modules for machine vision. In most cases, line lasers with a homogeneous power distribution are used in measurement technology. Lasers are ideal for quickly measuring contours, geometries, and structures according to the laser light sheet method. Measurement lasers are used in a variety of ways for detecting and measuring defects, presence, diameters, edges, columns, steps, alignment and positioning. Lasers are also the best option for fast and reliable measurement in 2D and 3D image processing.
Superior beam quality due to Powell lens technology. This modular system in compact dimensions will also meet your individual requirements.
The high power system with thermoelectric temperature stabilization for even better signal-to-noise ratios and DB-connector for monitoring/modulation.
L2S-TLP-Laser
Telecentric Laser Projector from Osela
This particular type of laser provides a telecentric laser line with a constant line length and width for your working range.
Therefore it is intended for high-precision surface inspections e.g. the smallest structures on electronic circuit boards.
Pseudo Random Pattern Projector for your 3D Machine Vision application. Available in the standard or compact dimensions.
L2S-COS-Option
Option: Cosine Correction
Avoid too much reflected light in the middle of your sensor by using the cosine correction. The correction levels can be individually adjusted according your needs.
L2S-Top Hat
Flat Top
Optiques spéciales pour Osela Ligne Laser Systems. L'ensemble des optiques suivantes peuvent être combinés avec presque tous les systèmes laser standard.
