New Generation Machine Vision Laser!
Advantages and features of our new generation of laser systems. All older LAS-Laser can be replaced 1:1
- customer friendly due to lower laser safety classes at higher power levels
- external focusing, Off-Axis balancing
- perfect optics with up to 0.03 % line straightness and +/-1 % uniformity along the line
- analog and digital modulation, 5-30 VDC auto scale input power, power supplies
- Line width of several centimeter and down to 5 micrometer
- Cosine correction for higher accuracy and less reflexions
- Robust and stabile, extended life time
- Bandpass filter and mounting brackets
- 20 years "Made in Canada", flexible company, short delivery times
In this table you will find a list of laser diode modules for professional machine vision. Through a click on the product you will find details about it.

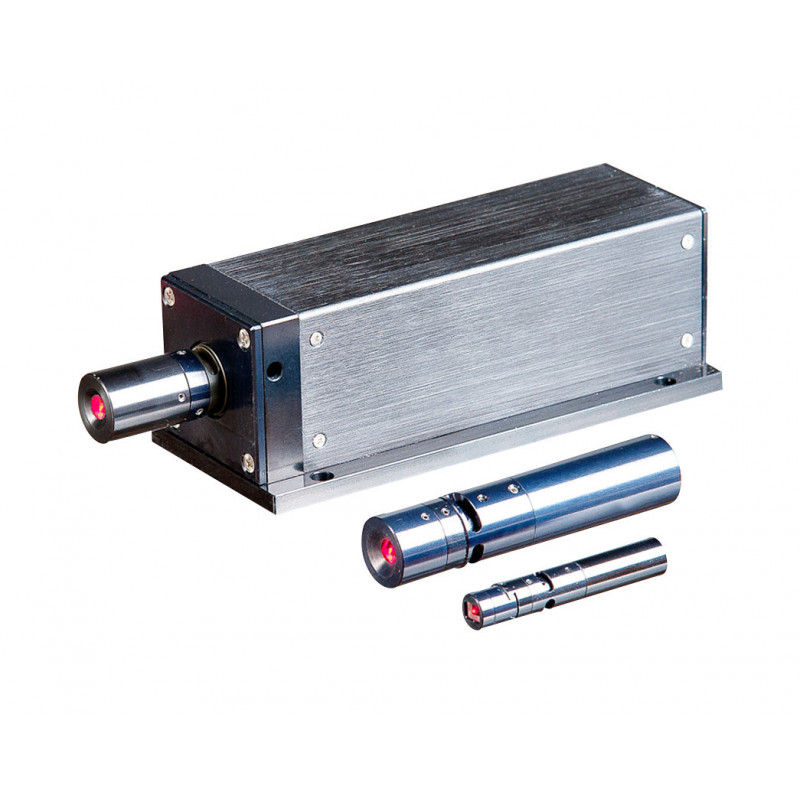

| CompactLine | Mini Line Laser with ø 10 mm, length 50 mm |
| StreamLine | The standard laser with 19 mm diameter, length 88 mm. The "Original" |
| ILS | The high-power package for machine vision |
| TMSL | Micro Focus Laser with uniform and telecentric lines |
Available Laser - Wavelength and optical power
Available CompactLine Laser
| CompactLine Laser Code | Wavelength | Power |
| L2S-CL-635-1-T | 635 nm | 1 mW |
| L2S-CL-635-5-T | 635 nm | 5 mW |
| L2S-CL-635-10-T | 635 nm | 10 mW |
| L2S-CL-635-15-T | 635 nm | 15 mW |
| L2S-CL-635-35-T | 635 nm | 35 mW |
| L2S-CL-640-45-S | 640 nm | 45 mW |
| L2S-CL-640-90-S | 640 nm | 90 mW |
| L2S-CL-660-1-T | 660 nm | 1 mW |
| L2S-CL-660-5-T | 660 nm | 5 mW |
| L2S-CL-660-10-T | 660 nm | 10 mW |
| L2S-CL-660-20-T | 660 nm | 20 mW |
| L2S-CL-660-35-T | 660 nm | 35 mW |
| L2S-CL-660-50-T | 660 nm | 50 mW |
| L2S-CL-660-100-T | 660 nm | 100 mW |
| L2S-CL-690-20-T | 690 nm | 20 mW |
| L2S-CL-690-35-T | 690 nm | 35 mW |
| L2S-CL-690-50-T | 690 nm | 50 mW |
| L2S-CL-785-20-T | 785 nm | 20 mW |
| L2S-CL-785-35-T | 785 nm | 35 mW |
| L2S-CL-785-75-T | 785 nm | 75 mW |
| L2S-CL-785-100-T | 785 nm | 100 mW |
| L2S-CL-830-50-T | 830 nm | 50 mW |
| L2S-CL-830-100-T | 830 nm | 100 mW |
| L2S-CL-850-30-T | 850 nm | 30 mW |
Available StreamLine Laser
| StreamLine Laser Code | Wavelength | Power |
| L2S-SL-405-20-S | 405 nm | 20 mW |
| L2S-SL-405-35-S | 405 nm | 35 mW |
| L2S-SL-440-50-S | 440 nm | 50 mW |
| L2S-SL-515-50-S | 515 nm | 50 mW |
| L2S-SL-635-1-S | 635 nm | 1 mW |
| L2S-SL-635-5-S | 635 nm | 5 mW |
| L2S-SL-635-10-S | 635 nm | 10 mW |
| L2S-SL-635-15-S | 635 nm | 15 mW |
| L2S-SL-635-35-S | 635 nm | 35 mW |
| L2S-SL-635-150-S | 635 nm | 150 mW |
| L2S-SL-640-45-S | 640 nm | 45 mW |
| L2S-SL-640-90-S | 640 nm | 90 mW |
| L2S-SL-660-1-S | 660 nm | 1 mW |
| L2S-SL-660-5-S | 660 nm | 5 mW |
| L2S-SL-660-10-S | 660 nm | 10 mW |
| L2S-SL-660-20-S | 660 nm | 20 mW |
| L2S-SL-660-35-S | 660 nm | 35 mW |
| L2S-SL-660-50-S | 660 nm | 50 mW |
| L2S-SL-660-100-S | 660 nm | 100 mW |
| L2S-SL-660-130-S | 660 nm | 130 mW |
| L2S-SL-690-20-S | 690 nm | 20 mW |
| L2S-SL-690-35-S | 690 nm | 35 mW |
| L2S-SL-690-50-S | 690 nm | 50 mW |
| L2S-SL-785-20-S | 785 nm | 20 mW |
| L2S-SL-785-35-S | 785 nm | 35 mW |
| L2S-SL-785-75-S | 785 nm | 75 mW |
| L2S-SL-785-100-S | 785 nm | 100 mW |
| L2S-SL-785-150-S | 785 nm | 150 mW |
| L2S-SL-810-100-S | 810 nm | 100 mW |
| L2S-SL-810-200-S | 810 nm | 200 mW |
| L2S-SL-830-50-S | 830 nm | 50 mW |
| L2S-SL-830-100-S | 830 nm | 100 mW |
| L2S-SL-830-150-S | 830 nm | 150 mW |
| L2S-SL-830-200-S | 830 nm | 200 mW |
| L2S-SL-905-200-S | 905 nm | 200 mW |
Available ILS-Laser
| ILS Laser Code | Wavelength | Power |
| L2S-ILS-375-20-S | 375 nm | 20 mW |
| L2S-ILS-375-200-S-A | 375 nm | 200 mW |
| L2S-ILS-405-60-S-A | 405 nm | 60 mW |
| L2S-ILS-405-100-S-A | 405 nm | 100 mW |
| L2S-ILS-405-200-S-A | 405 nm | 200 mW |
| L2S-ILS-405-600-S-A | 405 nm | 600 mW |
| L2S-ILS-440-50-S-A | 440 nm | 50 mW |
| L2S-ILS-440-1000-S-A | 440 nm | 1.000 mW |
| L2S-ILS-440-1500-S-A | 440 nm | 1.500 mW |
| L2S-ILS-488-60-S-A | 488 nm | 60 mW |
| L2S-ILS-515-50-S-A | 515 nm | 50 mW |
| L2S-ILS-635-150-S-A | 635 nm | 150 mW |
| L2S-ILS-642-250-S-A | 642 nm | 250 mW |
| L2S-ILS-670-500-S-A | 670 nm | 500 mW |
| L2S-ILS-670-1000-S-A | 670 nm | 1.000 mW |
| L2S-ILS-670-1500-S-A | 670 nm | 1.500 mW |
| L2S-ILS-810-500-S | 810 nm | 500 mW |
| L2S ILS-810-1000-S | 810 nm | 1.000 mW |
| L2S-ILS-810-2000-S | 810 nm | 2.000 mW |
| L2S-ILS-810-3000-S | 810 nm | 3.000 mW |
| L2S-ILS-905-1000-S | 905 nm | 1.000 mW |
In case you do not find your required laser system, please feel free to contact us!
Application:
- Line Laser
- Laser Measurements 2D / 3D
- Machine Vision
- Measurement and detection of structures, geometrics, edges, holes, groves, scratches, etc.
