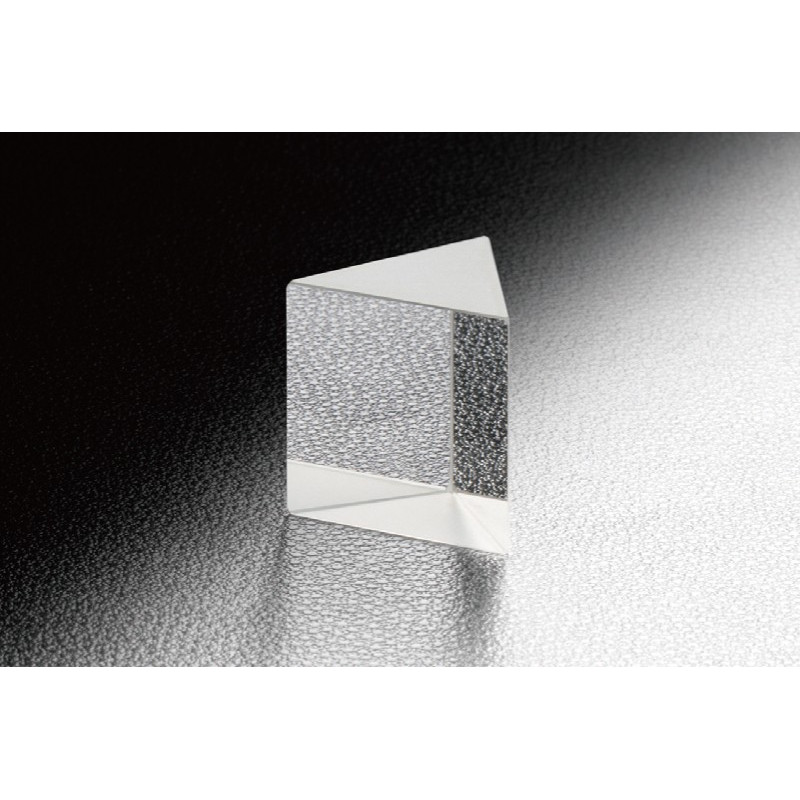

Equilateral Dispersing Prisms, BK7

search

Reference number: OSE-DPB-20-10H

BK7 equilateral prisms are commonly used for splitting light into its different colors.

€191.70
Tax excluded
A - B in mm
Quantity
Delivery

alt

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

  • Material: BK7
  • Refractive index nd: 1.517
  • Minimum deviation: 49.3°
  • Abbe number Vd*: 64.1
  • Angle: 60°±3´
  • Surface flatness of substrate: λ/10
  • Surface Quality (Scratch-Dig): 2010
  • Clear aperture: Circle or ellipse inscribed in a rectangular of 90% of the dimensions A and B
