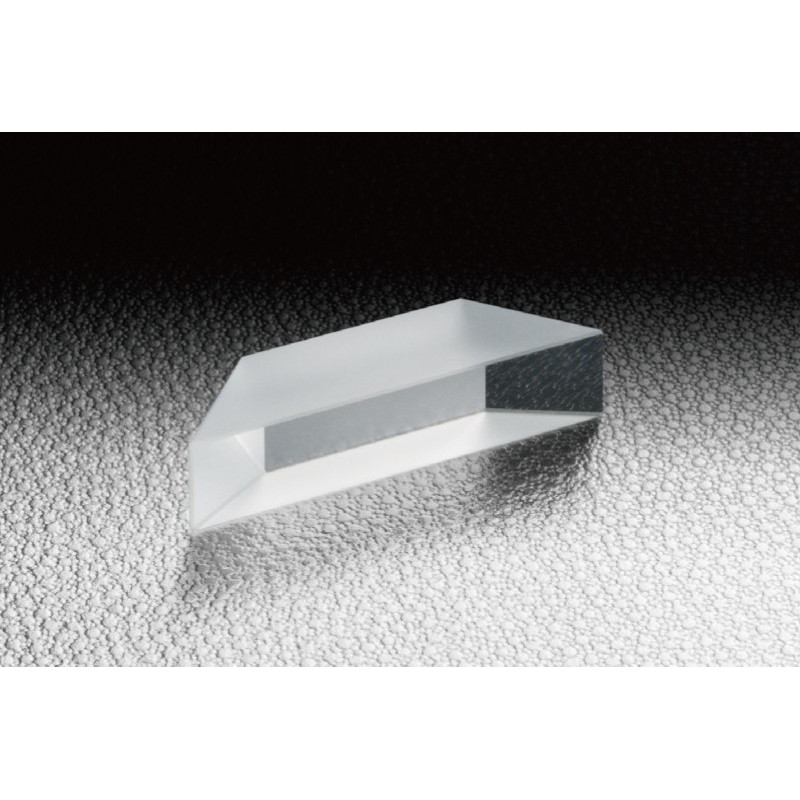

Dove Prisms

Reference number: OSE-DOP-10-4

Dove prisms have the useful property of completely inverting an image by 180 degrees.

Coating

A - B in mm

Coating

A - B in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Material: BK7
Refractive index nd: 1.517
Angle: 45°±3´
Surface flatness of substrate: λ/4
Coating: Uncoated
Surface Quality (Scratch-Dig): 2010
Clear aperture: Circle or ellipse inscribed in a rectangular of 90% of the dimensions A and B

Material: BK7
Refractive index nd: 1.517
Angle: 45°±3´
Surface flatness of substrate: λ/4
Coating: Uncoated
Surface Quality (Scratch-Dig): 2010
Clear aperture: Circle or ellipse inscribed in a rectangular of 90% of the dimensions A and B
A=B [mm]: 10
Length D [mm]: 42.2

Downloads

OSE-DOP-10-4_STP.zip

OSE-DOP.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Angle: 45°±3´
Surface flatness of substrate: λ/4
Coating: Uncoated
Surface Quality (Scratch-Dig): 2010
Clear aperture: Circle or ellipse inscribed in a rectangular of 90% of the dimensions A and B
A=B [mm]: 15
Length D [mm]: 63.3

Downloads

OSE-DOP-15-4_STP.zip

OSE-DOP.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Angle: 45°±3´
Surface flatness of substrate: λ/4
Coating: Uncoated
Surface Quality (Scratch-Dig): 2010
Clear aperture: Circle or ellipse inscribed in a rectangular of 90% of the dimensions A and B
A=B [mm]: 20
Length D [mm]: 84.4

Downloads

OSE-DOP-20-4_STP.zip

OSE-DOP.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Angle: 45°±3´
Surface flatness of substrate: λ/4
Coating: Uncoated
Surface Quality (Scratch-Dig): 2010
Clear aperture: Circle or ellipse inscribed in a rectangular of 90% of the dimensions A and B
A=B [mm]: 25
Length D [mm]: 105.5

Downloads

OSE-DOP-25-4_STP.zip

OSE-DOP.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Angle: 45°±3´
Surface flatness of substrate: λ/4
Coating: Uncoated
Surface Quality (Scratch-Dig): 2010
Clear aperture: Circle or ellipse inscribed in a rectangular of 90% of the dimensions A and B
A=B [mm]: 30
Length D [mm]: 126.6

Downloads

OSE-DOP-30-4_STP.zip

OSE-DOP.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Angle: 45°±3´
Surface flatness of substrate: λ/4
Coating: Broadband multi-layer AR coating
Surface Quality (Scratch-Dig): 2010
Clear aperture: Circle or ellipse inscribed in a rectangular of 90% of the dimensions A and B
A=B [mm]: 10
Length D [mm]: 42.2

Downloads

OSE-DOP.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Angle: 45°±3´
Surface flatness of substrate: λ/4
Coating: Broadband multi-layer AR coating
Surface Quality (Scratch-Dig): 2010
Clear aperture: Circle or ellipse inscribed in a rectangular of 90% of the dimensions A and B
A=B [mm]: 15
Length D [mm]: 63.3

Downloads

OSE-DOP.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Angle: 45°±3´
Surface flatness of substrate: λ/4
Coating: Broadband multi-layer AR coating
Surface Quality (Scratch-Dig): 2010
Clear aperture: Circle or ellipse inscribed in a rectangular of 90% of the dimensions A and B
A=B [mm]: 20
Length D [mm]: 84.4

Downloads

OSE-DOP.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Angle: 45°±3´
Surface flatness of substrate: λ/4
Coating: Broadband multi-layer AR coating
Surface Quality (Scratch-Dig): 2010
Clear aperture: Circle or ellipse inscribed in a rectangular of 90% of the dimensions A and B
A=B [mm]: 25
Length D [mm]: 105.5

Downloads

OSE-DOP.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Angle: 45°±3´
Surface flatness of substrate: λ/4
Coating: Broadband multi-layer AR coating
Surface Quality (Scratch-Dig): 2010
Clear aperture: Circle or ellipse inscribed in a rectangular of 90% of the dimensions A and B
A=B [mm]: 30
Length D [mm]: 126.6

Downloads

OSE-DOP.pdf

Opt_Prisms_.zip
