Optical Baseplates, OSE-OBC

Reference number: OSE-OBC-3045

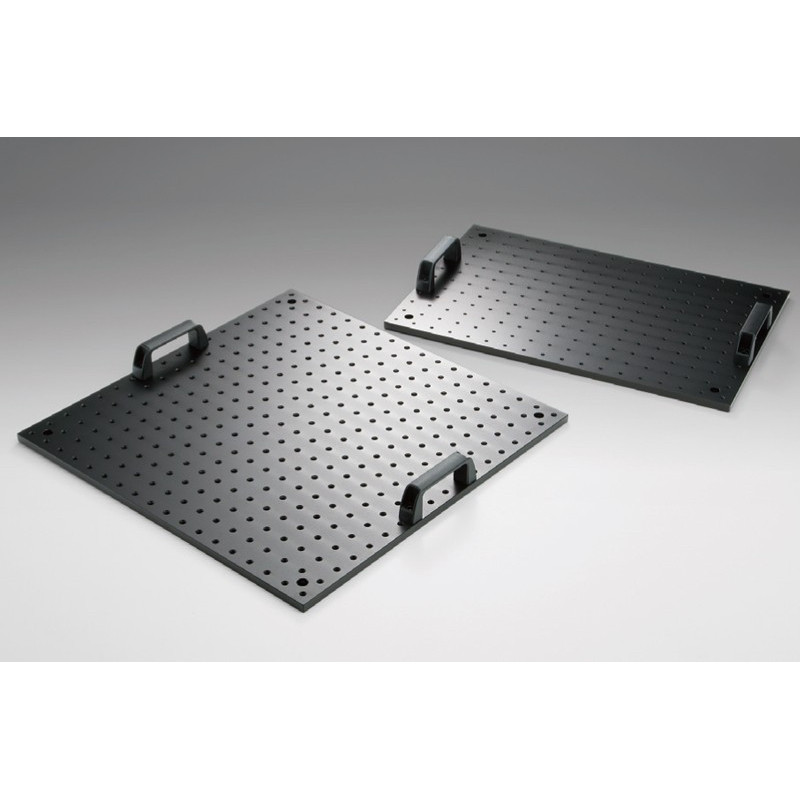

Base plates made of black anodized aluminum.

Headcap Screw

Dimensions in mm

Headcap Screw

Dimensions in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Type: Optical Baseplates
Size [mm]: 300x450
A [mm]: 425
B [mm]: 275
C [mm]: 25
D [mm]: 250
E [mm]: 400
F: M4
Weight [kg]: 3.6
Primary material: Aluminium
Finish: Black Anodized

Downloads

OSE-OBC-3045_STP.zip

OSE-OBC.pdf

Bases_small.zip

Type: Optical Baseplates
Size [mm]: 300x450
A [mm]: 425
B [mm]: 275
C [mm]: 25
D [mm]: 250
E [mm]: 400
F: M6
Weight [kg]: 3.6
Primary material: Aluminium
Finish: Black Anodized

Downloads

OSE-OBC-3045-M6_STP.zip

OSE-OBC.pdf

Bases_small.zip

Type: Optical Baseplates
Size [mm]: 300x450
A [mm]: 431.8
B [mm]: 279.4
C [mm]: 25.4
D [mm]: 254
E [mm]: 406.4
F: 1/4-20UNC
Weight [kg]: 3.6
Primary material: Aluminium
Finish: Black Anodized

Downloads

OSE-OBC-3045-1_4UU_STP.zip

OSE-OBC.pdf

Bases_small.zip

Type: Optical Baseplates
Size [mm]: 450x450
A [mm]: 575
B [mm]: 425
C [mm]: 25
D [mm]: 400
E [mm]: 550
F: M4
Weight [kg]: 5.4
Primary material: Aluminium
Finish: Black Anodized

Downloads

OSE-OBC-4560_STP.zip

OSE-OBC.pdf

Bases_small.zip

Type: Optical Baseplates
Size [mm]: 450x450
A [mm]: 575
B [mm]: 425
C [mm]: 25
D [mm]: 400
E [mm]: 550
F: M6
Weight [kg]: 5.4
Primary material: Aluminium
Finish: Black Anodized

Downloads

OSE-OBC-4560-M6_STP.zip

OSE-OBC.pdf

Bases_small.zip

Type: Optical Baseplates
Size [mm]: 450x450
A [mm]: 584.2
B [mm]: 431.8
C [mm]: 25.4
D [mm]: 406.4
E [mm]: 558.8
F: 1/4-20UNC
Weight [kg]: 5.4
Primary material: Aluminium
Finish: Black Anodized

Downloads

OSE-OBC-4560-1_4UU_STP.zip

OSE-OBC.pdf

Bases_small.zip

Type: Optical Baseplates
Size [mm]: 450x600
A [mm]: 425
B [mm]: 425
C [mm]: 25
D [mm]: 400
E [mm]: 400
F: M4
Weight [kg]: 7.3
Primary material: Aluminium
Finish: Black Anodized

Downloads

OSE-OBC-4545_STP.zip

OSE-OBC.pdf

Bases_small.zip

Type: Optical Baseplates
Size [mm]: 450x600
A [mm]: 425
B [mm]: 425
C [mm]: 25
D [mm]: 400
E [mm]: 400
F: M6
Weight [kg]: 7.3
Primary material: Aluminium
Finish: Black Anodized

Downloads

OSE-OBC-4545-M6_STP.zip

OSE-OBC.pdf

Bases_small.zip

Type: Optical Baseplates
Size [mm]: 450x600
A [mm]: 431.8
B [mm]: 431.8
C [mm]: 25.4
D [mm]: 406.4
E [mm]: 406.4
F: 1/4-20UNC
Weight [kg]: 7.3
Primary material: Aluminium
Finish: Black Anodized

Downloads

OSE-OBC-4545-1_4UU_STP.zip

OSE-OBC.pdf

Bases_small.zip
