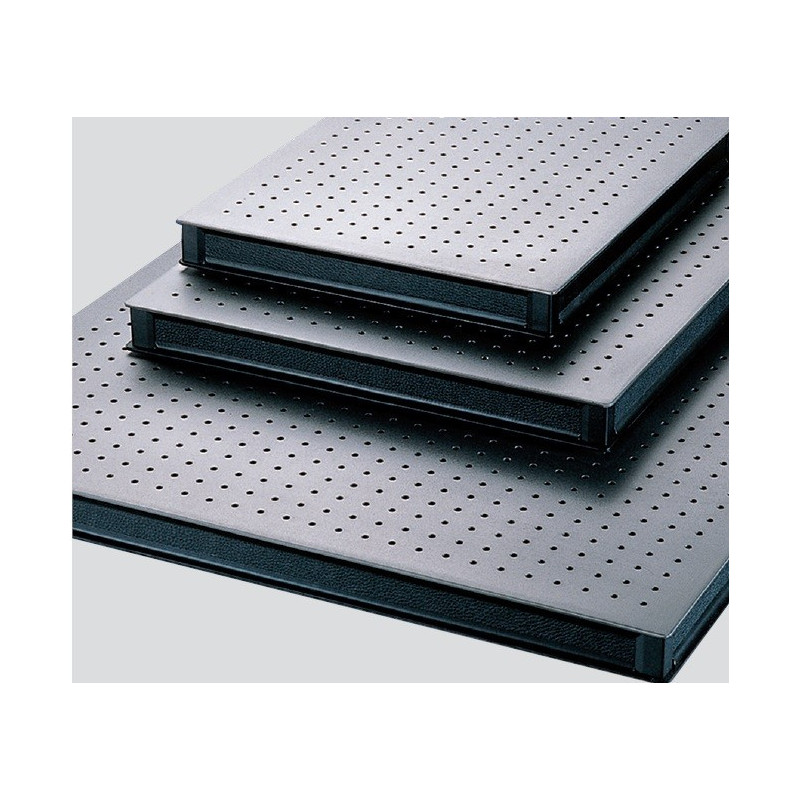

Tabletop Optical Breadbord

Reference number: OSE-OSDVIO-B-0504M-50t

Top plates are made of stainless steel (SUS430), base plates are made of hot rolled steel (SPHC).

Dimensions in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Those products may also interest you

Vibration isolated systems

OSE-OSDVIA

€10,645.80
Desk Style Vibration Isolation Systems, C-Series

OSE-OSDVID-C

€5,288.30
Desk Style Vibration Isolation Systems, L-Series

OSE-OSDVID-L

€4,248.80
Desktop Vibration Isolation Systems

OSE-OSDVIT

€3,055.60
Optical Baseplates, OSE-OBC

OSE-OBC

€247.70

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 500x400
T [mm] : 50
Weight [kg]: 17
