NIR Objective Lenses

Reference number: OSE-PAL-10-NIR

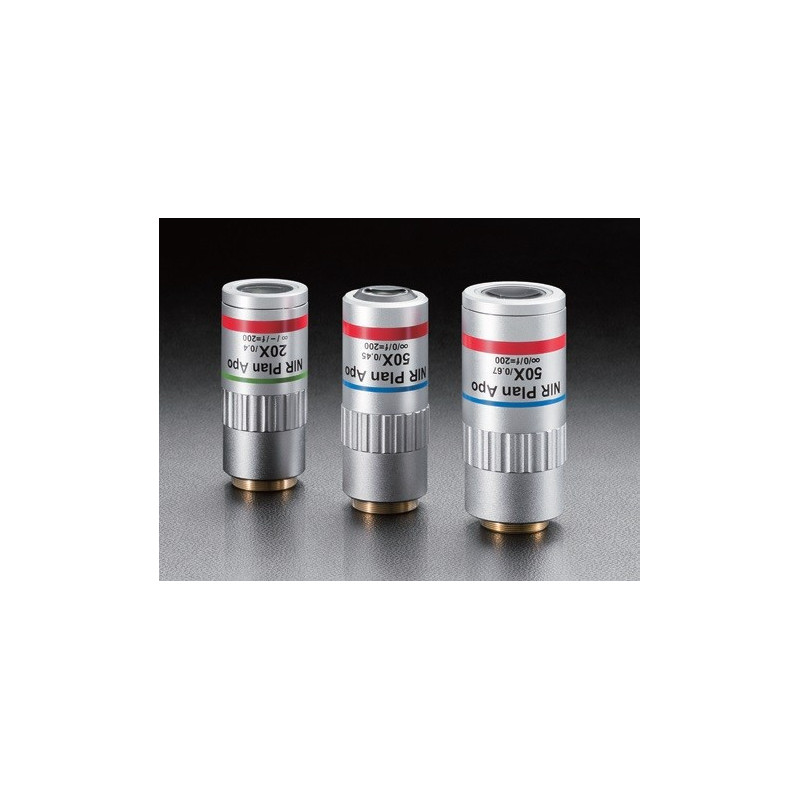

These are infinity corrected objectives with high NA for laser processing.

Item Name

Magnification

Item Name

Magnification

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

NIR Objective Lenses

Magnification: 10
Wavelength Range [nm]: 532 / 1064
Focal length f [mm]: 20
Focal depth [µm]: ± 3,1
Numerical aperture (NA): 0.3
Working distance (WD) [mm]: 31
Resolution [µm]: 0.92
Weight [kg]: 0.3

Downloads

PAL_NIR.pdf

Magnification: 20
Wavelength Range [nm]: 532 / 1064
Focal length f [mm]: 10
Focal depth [µm]: ± 1,7
Numerical aperture (NA): 0.4
Working distance (WD) [mm]: 20.2
Resolution [µm]: 0.69
Weight [kg]: 0.36

Downloads

PAL_NIR.pdf

Magnification: 50
Wavelength Range [nm]: 532 / 1064
Focal length f [mm]: 4
Focal depth [µm]: ± 1,4
Numerical aperture (NA): 0.45
Working distance (WD) [mm]: 15.1
Resolution [µm]: 0.61
Weight [kg]: 0.34

Downloads

PAL_NIR.pdf

Magnification: 20
Wavelength Range [nm]: 532 / 1064
Focal length f [mm]: 10
Focal depth [µm]: ± 1,4
Numerical aperture (NA): 0.45
Working distance (WD) [mm]: 20
Resolution [µm]: 0.61
Weight [kg]: 0.42

Downloads

PAL_NIR.pdf

Magnification: 50
Wavelength Range [nm]: 532 / 1064
Focal length f [mm]: 4
Focal depth [µm]: ± 0,61
Numerical aperture (NA): 0.67
Working distance (WD) [mm]: 10
Resolution [µm]: 0.41
Weight [kg]: 0.48

Downloads

PAL_NIR.pdf

Magnification: 20
Wavelength Range [nm]: 532 / 1064
Focal length f [mm]: 10
Focal depth [µm]: ± 1,7
Numerical aperture (NA): 0.4
Working distance (WD) [mm]: 19,98
Resolution [µm]: 0.69
Weight [kg]: 0.36

Downloads

PAL_NIR_LC.pdf

Magnification: 50
Wavelength Range [nm]: 532 / 1064
Focal length f [mm]: 4
Focal depth [µm]: ± 1,4
Numerical aperture (NA): 0.45
Working distance (WD) [mm]: 15,01
Resolution [µm]: 0.61
Weight [kg]: 0.34

Downloads

PAL_NIR_LC.pdf

Magnification: 20
Wavelength Range [nm]: 532 / 1064
Focal length f [mm]: 10
Focal depth [µm]: ± 1,7
Numerical aperture (NA): 0.4
Working distance (WD) [mm]: 19,85
Resolution [µm]: 0.69
Weight [kg]: 0.36

Downloads

PAL_NIR_LC.pdf

Magnification: 50
Wavelength Range [nm]: 532 / 1064
Focal length f [mm]: 4
Focal depth [µm]: ± 1,4
Numerical aperture (NA): 0.45
Working distance (WD) [mm]: 14,97
Resolution [µm]: 0.61
Weight [kg]: 0.34

Downloads

PAL_NIR_LC.pdf

Magnification: 50
Wavelength Range [nm]: 532 / 1064
Focal length f [mm]: 4
Focal depth [µm]: ± 0,61
Numerical aperture (NA): 0.67
Working distance (WD) [mm]: 10,48
Resolution [µm]: 0.41
Weight [kg]: 0.48

Downloads

PAL_NIR_LC.pdf
