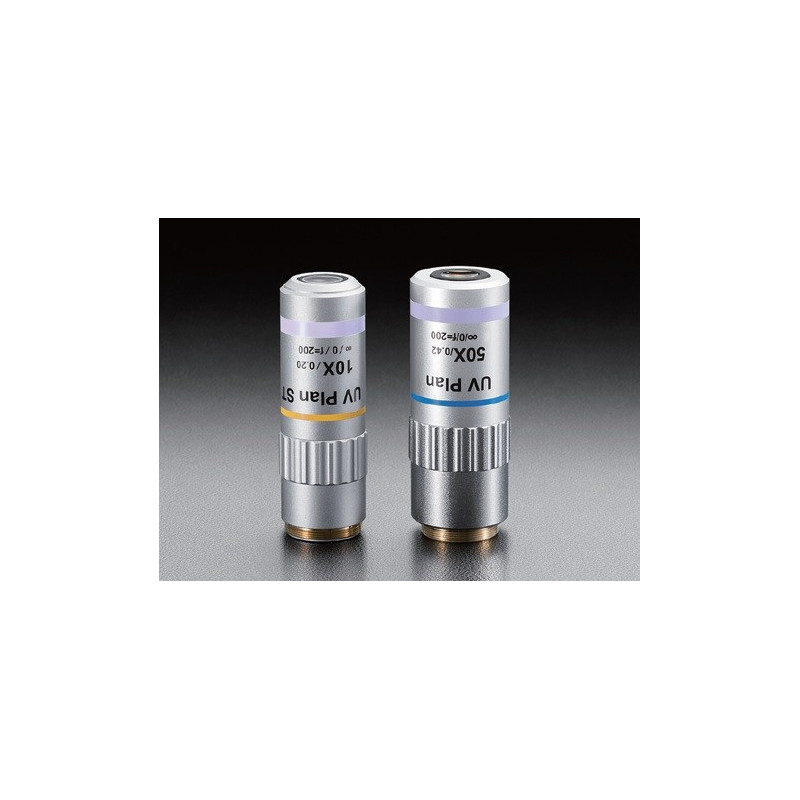

UV Objective Lenses

Reference number: OSE-PFL-10-UV-AG

With its long working distance and field curvature correction, a natural observation image is achieved to the periphery of the field of view.

€9,661.70

Tax excluded

Item Name

Magnification

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

UV Objective Lenses

Those products may also interest you

High resolution microscope OptoNano 200

OSE-PT-ON200

€0.00
F-Theta Lenses

OSE-f-Theta

€4,714.30
F-Theta Lenses for YAG

OSE-f-Theta-YAG

€754.30
F-Theta Lenses for CO2 Laser

OSE-f-Theta-10600

€1,037.20
Tube Lens: Wavelengths from fundamental to 3rd...

OSE-TL-Y3

€942.90

Magnification: 10
Wavelength Range [nm]: 266 / 532
Focal length f [mm]: 20
Focal depth [µm]: ± 6,9
Numerical aperture (NA): 0.2
Working distance (WD) [mm]: 13,5
Resolution [µm]: 1.4
Weight [kg]: 0.3

Magnification: 20

Wavelength Range [nm]: 267 / 532

Focal length f [mm]: 10

Focal depth [µm]: ± 2,1

Numerical aperture (NA): 0.36

Working distance (WD) [mm]: 15,07

Resolution [µm]: 0.76

Weight [kg]: 0.35

Magnification: 50
Wavelength Range [nm]: 268 / 532
Focal length f [mm]: 4
Focal depth [µm]: ± 1,6
Numerical aperture (NA): 0.42
Working distance (WD) [mm]: 12
Resolution [µm]: 0.65
Weight [kg]: 0.41

Magnification: 80
Wavelength Range [nm]: 269 / 532
Focal length f [mm]: 2.5
Focal depth [µm]: ± 0,9
Numerical aperture (NA): 0.55
Working distance (WD) [mm]: 10
Resolution [µm]: 0.5
Weight [kg]: 0.35

Magnification: 20
Wavelength Range [nm]: 270 / 532
Focal length f [mm]: 10
Focal depth [µm]: ± 2,1
Numerical aperture (NA): 0.36
Working distance (WD) [mm]: 15,15
Resolution [µm]: 0.76
Weight [kg]: 0.35

Magnification: 50
Wavelength Range [nm]: 271 / 532
Focal length f [mm]: 4
Focal depth [µm]: ± 1,6
Numerical aperture (NA): 0.42
Working distance (WD) [mm]: 11,99
Resolution [µm]: 0.65
Weight [kg]: 0.4

Magnification: 80
Wavelength Range [nm]: 272 / 532
Focal length f [mm]: 2.5
Focal depth [µm]: ± 0,9
Numerical aperture (NA): 0.55
Working distance (WD) [mm]: 9,78
Resolution [µm]: 0.5
Weight [kg]: 0.35

Magnification: 20
Wavelength Range [nm]: 273 / 532
Focal length f [mm]: 10
Focal depth [µm]: ± 2,1
Numerical aperture (NA): 0.36
Working distance (WD) [mm]: 15,2
Resolution [µm]: 0.76
Weight [kg]: 0.35

Magnification: 50
Wavelength Range [nm]: 274 / 532
Focal length f [mm]: 4
Focal depth [µm]: ± 1,6
Numerical aperture (NA): 0.42
Working distance (WD) [mm]: 12,02
Resolution [µm]: 0.65
Weight [kg]: 0.4

Magnification: 80
Wavelength Range [nm]: 275 / 532
Focal length f [mm]: 2.5
Focal depth [µm]: ± 0,9
Numerical aperture (NA): 0.55
Working distance (WD) [mm]: 9,65
Resolution [µm]: 0.5
Weight [kg]: 0.35
