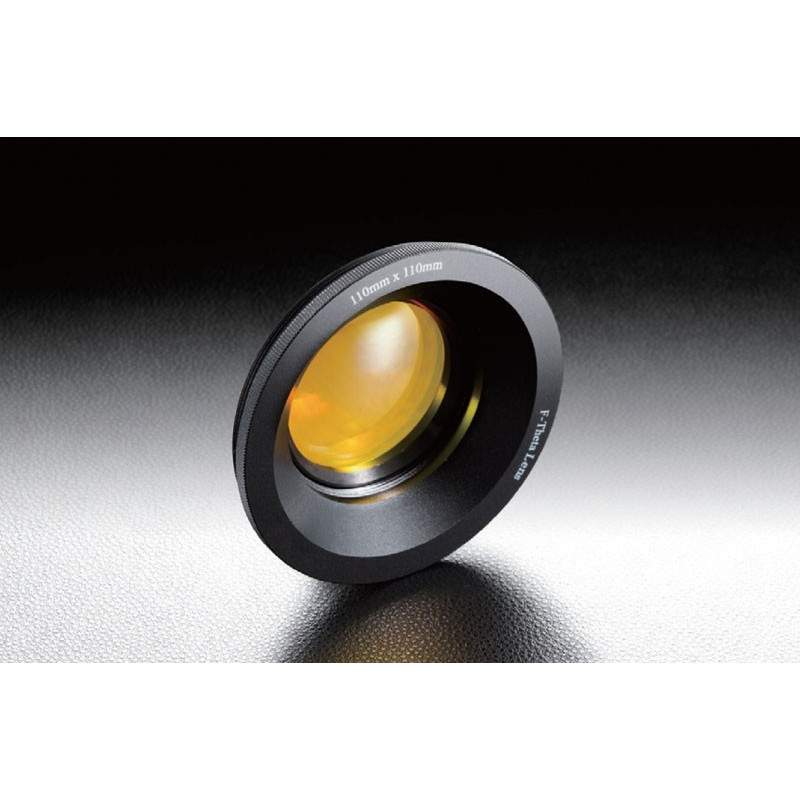

F-Theta Lenses for CO2 Laser

Reference number: OSE-f-Theta-75-10600

The F-Theta Lenses for CO2 laser are made by a single lens of zinc selenide.

Focal length in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Entrance pupil diameter [mm]: Ø14mm
Distance to lens from pupil [mm]: 25
Focal length f [mm]: 75
Material: Zinc selenide (ZnSe)
Design wavelength [nm]: 10.6 μm
Coating: Dielectric multi-layer coating
Scanning angle [°]: 25
Scanning range [mm]: 50x50

Downloads

OSE-f-theta-10600.pdf

Opt(ME-optics).zip

Entrance pupil diameter [mm]: Ø14mm
Distance to lens from pupil [mm]: 25
Focal length f [mm]: 100
Material: Zinc selenide (ZnSe)
Design wavelength [nm]: 10.6 μm
Coating: Dielectric multi-layer coating
Scanning angle [°]: 25
Scanning range [mm]: 70x70

Downloads

OSE-f-theta-10600.pdf

Opt(ME-optics).zip

Entrance pupil diameter [mm]: Ø14mm
Distance to lens from pupil [mm]: 25
Focal length f [mm]: 150
Material: Zinc selenide (ZnSe)
Design wavelength [nm]: 10.6 μm
Coating: Dielectric multi-layer coating
Scanning angle [°]: 25
Scanning range [mm]: 110x110

Downloads

OSE-f-theta-10600.pdf

Opt(ME-optics).zip

Entrance pupil diameter [mm]: Ø14mm
Distance to lens from pupil [mm]: 25
Focal length f [mm]: 200
Material: Zinc selenide (ZnSe)
Design wavelength [nm]: 10.6 μm
Coating: Dielectric multi-layer coating
Scanning angle [°]: 25
Scanning range [mm]: 140x140

Downloads

OSE-f-theta-10600.pdf

Opt(ME-optics).zip

Entrance pupil diameter [mm]: Ø14mm
Distance to lens from pupil [mm]: 25
Focal length f [mm]: 250
Material: Zinc selenide (ZnSe)
Design wavelength [nm]: 10.6 μm
Coating: Dielectric multi-layer coating
Scanning angle [°]: 25
Scanning range [mm]: 175x175

Downloads

OSE-f-theta-10600.pdf

Opt(ME-optics).zip

Entrance pupil diameter [mm]: Ø12mm
Distance to lens from pupil [mm]: 25
Focal length f [mm]: 300
Material: Zinc selenide (ZnSe)
Design wavelength [nm]: 10.6 μm
Coating: Dielectric multi-layer coating
Scanning angle [°]: 28
Scanning range [mm]: 213x213

Downloads

OSE-f-theta-10600.pdf

Opt(ME-optics).zip

Entrance pupil diameter [mm]: Ø14mm
Distance to lens from pupil [mm]: 25
Focal length f [mm]: 340
Material: Zinc selenide (ZnSe)
Design wavelength [nm]: 10.6 μm
Coating: Dielectric multi-layer coating
Scanning angle [°]: 25
Scanning range [mm]: 250x250

Downloads

OSE-f-theta-10600.pdf

Opt(ME-optics).zip

Entrance pupil diameter [mm]: Ø14mm
Distance to lens from pupil [mm]: 25
Focal length f [mm]: 433
Material: Zinc selenide (ZnSe)
Design wavelength [nm]: 10.6 μm
Coating: Dielectric multi-layer coating
Scanning angle [°]: 25
Scanning range [mm]: 300x300

Downloads

OSE-f-theta-10600.pdf

Opt(ME-optics).zip
