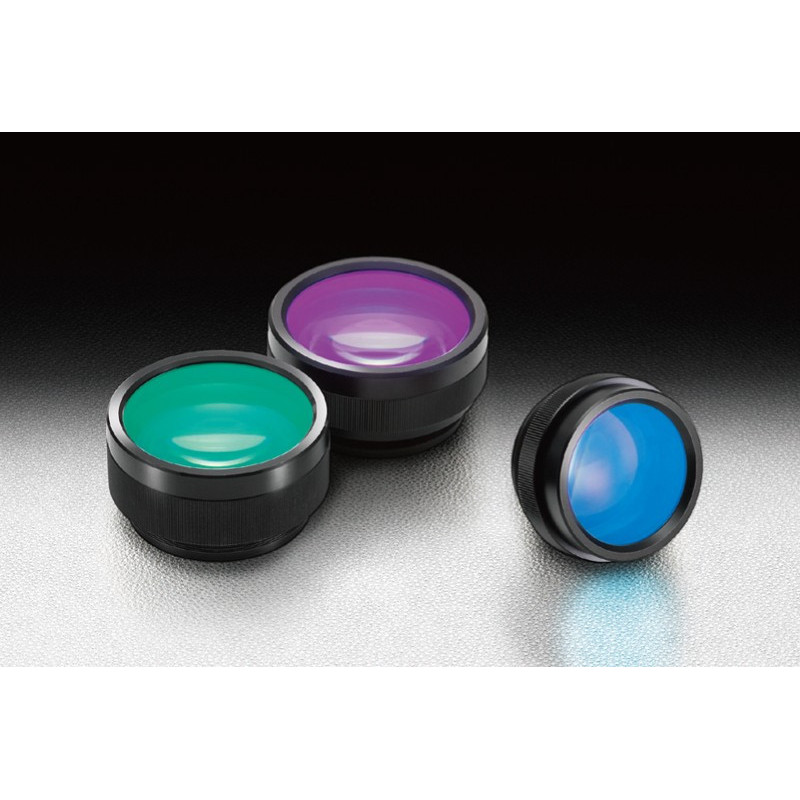

F-Theta Lenses for YAG

Reference number: OSE-f-Theta-100-532L

F-Theta Lenses are used for laser marking, bar code reader, laser micromachining and other laser applications.

€754.30

Tax excluded

Design wavelength in nm

Focal length in mm

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Those products may also interest you

High resolution microscope OptoNano 200

OSE-PT-ON200

€0.00
F-Theta Lenses

OSE-f-Theta

€4,714.30
F-Theta Lenses for CO2 Laser

OSE-f-Theta-10600

€1,037.20
Tube Lens: Wavelengths from fundamental to 3rd...

OSE-TL-Y3

€942.90
Tube Lens: Wavelengths from fundamental to 4th...

OSE-TL-Y4

€2,074.30

Entrance pupil diameter [mm]: Ø12
Focal length f [mm]: 100.2
Working distance (WD) [mm]: 114.7
Design wavelength [nm]: 532
Scanning angle [°]: ±22,9
Scanning range [mm]: Ø80
Transmittance [%]: >95
Telecentric: o
A [mm]: 53.3
B [mm]: 17.8
C [mm]: 22.5
D [mm]: 22.8
E [mm]: 8
F [mm]: Ø89
ØG [mm]: Ø80
ØH [mm]: Ø72
I: Ø60
ØJ [mm]: 48.6
K [mm]: Ø83
Screw: M85 P1

Downloads

OSE-ftheta-100-532L_STP.zip

OSE-f-theta.pdf

Opt(ME-optics).zip

Entrance pupil diameter [mm]: Ø12
Focal length f [mm]: 99.93
Working distance (WD) [mm]: 109.6
Design wavelength [nm]: 1064
Scanning angle [°]: ±22,9
Scanning range [mm]: Ø80
Transmittance [%]: >95
Telecentric: o
A [mm]: 53.3
B [mm]: 17
C [mm]: 20
D [mm]: 25.3
E [mm]: 8
F [mm]: Ø87
ØG [mm]: Ø80
ØH [mm]: Ø69
I: Ø57
ØJ [mm]: 50.3
K [mm]: Ø83
Screw: M85 P1

Downloads

OSE-ftheta-100-1064L_STP.zip

OSE-f-theta.pdf

Opt(ME-optics).zip

Entrance pupil diameter [mm]: Ø15
Focal length f [mm]: 152.1
Working distance (WD) [mm]: 168.6
Design wavelength [nm]: 1064
Scanning angle [°]: ±24,0
Scanning range [mm]: Ø127,4
Transmittance [%]: >95
Telecentric: o
A [mm]: 63
B [mm]: 19.8
C [mm]: 26.8
D [mm]: 28
E [mm]: 8.2
F [mm]: Ø87
ØG [mm]: Ø80
ØH [mm]: Ø74,5
I: Ø64
ØJ [mm]: 56
K [mm]: Ø86
Screw: M85 P1

Downloads

OSE-ftheta-150-1064B_STP.zip

OSE-f-theta.pdf

Opt(ME-optics).zip

Entrance pupil diameter [mm]: Ø12
Focal length f [mm]: 220
Working distance (WD) [mm]: 254.2
Design wavelength [nm]: 1064
Scanning angle [°]: ±24,0
Scanning range [mm]: Ø184
Transmittance [%]: >95
Telecentric: o
A [mm]: 59.8
B [mm]: 21.1
C [mm]: 32.1
D [mm]: 19.7
E [mm]: 8
F [mm]: Ø97
ØG [mm]: Ø80
ØH [mm]: -
I: Ø68
ØJ [mm]: 48.8
K [mm]: Ø97
Screw: M85 P1

Downloads

OSE-ftheta-220-1064L_STP.zip

OSE-f-theta.pdf

Opt(ME-optics).zip

Entrance pupil diameter [mm]: Ø15
Focal length f [mm]: 273
Working distance (WD) [mm]: 318.9
Design wavelength [nm]: 1064
Scanning angle [°]: ±24,13
Scanning range [mm]: Ø230
Transmittance [%]: >95
Telecentric: o
A [mm]: 59.7
B [mm]: 33.5
C [mm]: 26
D [mm]: 24.7
E [mm]: 9
F [mm]: Ø106
ØG [mm]: Ø74
ØH [mm]: -
I: Ø64
ØJ [mm]: 67.2
K [mm]: Ø106
Screw: M85 P1

Downloads

OSE-ftheta-270-1064_STP.zip

OSE-f-theta.pdf

Opt(ME-optics).zip
