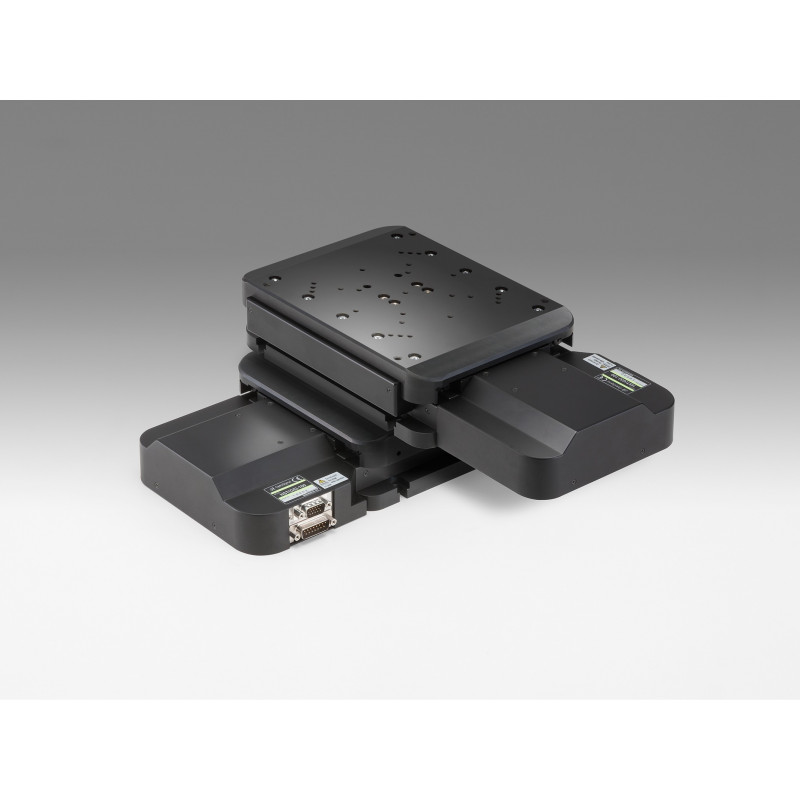

Precision XY Axes

Reference number: OSE-HST-50XY

€5,850.20

Tax excluded

Travel in mm

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

High precision XY axis stages fitted with precision ball screws and precision crossed roller.

Travel [mm]: 50

Table Size [mm]: 165x165

Feed Screw: Ball screw diameter Ø10mm, 2mm lead

Positioning Slide: Crossed roller

Stage Material: Steel

Weight [kg]: 17.4

Resolution/(Full) [µm/pulse]: 4

Resolution/(Half) [µm/pulse]: 2

MAX Speed [mm/sec]: 10

Positioning Accuracy [µm]: 10

Positional Repeatability[µm]: 2

Load Capacity [N]: 196

Lost Motion [µm]: 1

Backlash [µm]: 1

Orthogonality of Motion [µm]: 5

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: Equipped (NORMAL OPEN)

Proximity Origin Sensor: Equipped (NORMAL OPEN)

Type: 5-phase stepping motor 1.4A/phase (Oriental Motor Co., Ltd.)

Motor Part Number: PKP544N18B (42mm)

Step Angle: 0.72°

Power Voltage: DC5 ? 24V ±10%

Current Consumption: 80mA or lower (20mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA

Output Logic: When shaded: Output transistor OFF (no conduction): Limit sensor /When shaded: Output transistor ON (conduction): Origin sensor, Proximity Origin Sensor

Driver Cable: D15D15A-CA

Compatible Driver: SG-5M, SG-55M, SG-514MSC, SG-5151, KR-525M

Compatible Controller: HSC-103, SHOT-302GS, SHOT-304GS

Downloads

OSE-HST-50XY_STP.zip

MotorizedStages.zip

Travel [mm]: 100

Table Size [mm]: 165x220

Feed Screw: Ball screw diameter Ø10mm, 2mm lead

Positioning Slide: Crossed roller

Stage Material: Steel

Weight [kg]: 21.2

Resolution/(Full) [µm/pulse]: 4

Resolution/(Half) [µm/pulse]: 2

MAX Speed [mm/sec]: 10

Positioning Accuracy [µm]: 12

Positional Repeatability[µm]: 2

Load Capacity [N]: 196

Lost Motion [µm]: 1

Backlash [µm]: 1

Orthogonality of Motion [µm]: 5

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: Equipped (NORMAL OPEN)

Proximity Origin Sensor: Equipped (NORMAL OPEN)

Type: 5-phase stepping motor 1.4A/phase (Oriental Motor Co., Ltd.)

Motor Part Number: PKP544N18B (42mm)

Step Angle: 0.72°

Power Voltage: DC5 ? 24V ±10%

Current Consumption: 80mA or lower (20mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA

Output Logic: When shaded: Output transistor OFF (no conduction): Limit sensor /When shaded: Output transistor ON (conduction): Origin sensor, Proximity Origin Sensor

Driver Cable: D15D15A-CA

Compatible Driver: SG-5M, SG-55M, SG-514MSC, SG-5151, KR-525M

Compatible Controller: HSC-103, SHOT-302GS, SHOT-304GS

Downloads

OSE-HST-100XY_STP.zip

MotorizedStages.zip

Travel [mm]: 200

Table Size [mm]: 165x420

Feed Screw: Ball screw diameter Ø10mm, 2mm lead

Positioning Slide: Crossed roller

Stage Material: Steel

Weight [kg]: 40

Resolution/(Full) [µm/pulse]: 4

Resolution/(Half) [µm/pulse]: 2

MAX Speed [mm/sec]: 20

Positioning Accuracy [µm]: 15

Positional Repeatability[µm]: 2

Load Capacity [N]: 196

Lost Motion [µm]: 1

Backlash [µm]: 1

Orthogonality of Motion [µm]: 10

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: Equipped (NORMAL OPEN)

Proximity Origin Sensor: Equipped (NORMAL OPEN)

Type: 5-phase stepping motor 1.4A/phase (Oriental Motor Co., Ltd.)

Motor Part Number: PKP544N18B (42mm)

Step Angle: 0.72°

Power Voltage: DC5 ? 24V ±10%

Current Consumption: 80mA or lower (20mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA

Output Logic: When shaded: Output transistor OFF (no conduction): Limit sensor /When shaded: Output transistor ON (conduction): Origin sensor, Proximity Origin Sensor

Driver Cable: D15D15A-CA

Compatible Driver: SG-5M, SG-55M, SG-514MSC, SG-5151, KR-525M

Compatible Controller: HSC-103, SHOT-302GS, SHOT-304GS

Downloads

OSE-HST-200XY_STP.zip

MotorizedStages.zip
