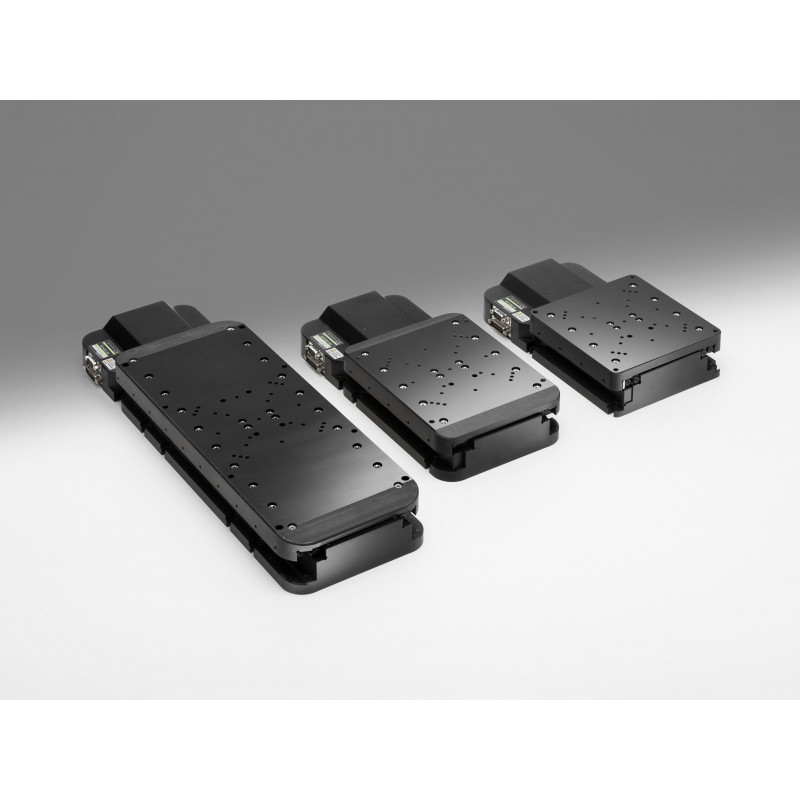

Precision X Axes, Glass-scale Encoder

Reference number: OSE-HST(GS)-50X

Travel in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Linear scales consist of "scales" used as a ruler and a detector which obtains positional information from the scales.

Travel [mm]: 100

Table Size [mm]: 165x220

Feed Screw: Ball screw diameter Ø10mm, 2mm lead

Positioning Slide: Crossed roller guide

Stage Material: Steel

Weight [kg]: 10.7

Resolution/(Full) [µm/pulse]: 4

Resolution/(Half) [µm/pulse]: 2

MAX Speed [mm/sec]: 10

Positioning Accuracy [µm]: 4

Positional Repeatability[µm]: 0.5

Load Capacity [N]: 392

Pitch [´´/N*cm]: 0.01

Yaw [´´/N*cm]: 0.01

Roll [´´/N*cm]: 0.005

Lost Motion [µm]: 0.5

Backlash [µm]: 1

Parallelism [µm]: 70

Running Parallelism [µm]: 10

Pitch [´´]/Yaw [´´]: 20/20

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: Equipped (NORMAL OPEN)

Proximity Origin Sensor: Equipped (NORMAL OPEN)

Type: 5-phase stepping motor 1.4A/phase (Oriental Motor Co., Ltd.)

Motor Part Number: PKP544N18B (42mm)

Step Angle: 0.72°

Power Voltage: DC5 ? 24V ±10%

Current Consumption: 80mA or lower (20mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA

Output Logic: When shaded: Output transistor OFF (no conduction): Limit sensor /When shaded: Output transistor ON (conduction): Origin sensor, Proximity Origin Sensor

Driver Cable: D15D15A-CA

Scale Cable: GSEF-CA-3

Compatible Controller: SHOT-302GS, SHOT-304GS

Downloads

OSE-HST(GS)-100X_STP.zip

MotorizedStages.zip

Travel [mm]: 200

Table Size [mm]: 165x420

Feed Screw: Ball screw diameter Ø10mm, 2mm lead

Positioning Slide: Crossed roller guide

Stage Material: Steel

Weight [kg]: 18.9

Resolution/(Full) [µm/pulse]: 4

Resolution/(Half) [µm/pulse]: 2

MAX Speed [mm/sec]: 20

Positioning Accuracy [µm]: 5

Positional Repeatability[µm]: 0.8

Load Capacity [N]: 392

Pitch [´´/N*cm]: 0.01

Yaw [´´/N*cm]: 0.01

Roll [´´/N*cm]: 0.005

Lost Motion [µm]: 0.5

Backlash [µm]: 1

Parallelism [µm]: 100

Running Parallelism [µm]: 20

Pitch [´´]/Yaw [´´]: 20/20

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: Equipped (NORMAL OPEN)

Proximity Origin Sensor: Equipped (NORMAL OPEN)

Type: 5-phase stepping motor 1.4A/phase (Oriental Motor Co., Ltd.)

Motor Part Number: PKP544N18B (42mm)

Step Angle: 0.72°

Power Voltage: DC5 ? 24V ±10%

Current Consumption: 80mA or lower (20mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA

Output Logic: When shaded: Output transistor OFF (no conduction): Limit sensor /When shaded: Output transistor ON (conduction): Origin sensor, Proximity Origin Sensor

Driver Cable: D15D15A-CA

Scale Cable: GSEF-CA-3

Compatible Controller: SHOT-302GS, SHOT-304GS

Downloads

OSE-HST(GS)-200X_STP.zip

MotorizedStages.zip

Travel [mm]: 50

Table Size [mm]: 165x165

Feed Screw: Ball screw diameter Ø10mm, 2mm lead

Positioning Slide: Crossed roller guide

Stage Material: Steel

Weight [kg]: 8.8

Resolution/(Full) [µm/pulse]: 4

Resolution/(Half) [µm/pulse]: 2

MAX Speed [mm/sec]: 10

Positioning Accuracy [µm]: 3

Positional Repeatability[µm]: 0.5

Load Capacity [N]: 392

Pitch [´´/N*cm]: 0.01

Yaw [´´/N*cm]: 0.01

Roll [´´/N*cm]: 0.005

Lost Motion [µm]: 0.5

Backlash [µm]: 1

Parallelism [µm]: 50

Running Parallelism [µm]: 10

Pitch [´´]/Yaw [´´]: 15/15

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: Equipped (NORMAL OPEN)

Proximity Origin Sensor: Equipped (NORMAL OPEN)

Type: 5-phase stepping motor 1.4A/phase (Oriental Motor Co., Ltd.)

Motor Part Number: PKP544N18B (42mm)

Step Angle: 0.72°

Power Voltage: DC5 ? 24V ±10%

Current Consumption: 80mA or lower (20mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA

Output Logic: When shaded: Output transistor OFF (no conduction): Limit sensor /When shaded: Output transistor ON (conduction): Origin sensor, Proximity Origin Sensor

Driver Cable: D15D15A-CA

Scale Cable: GSEF-CA-3

Compatible Controller: SHOT-302GS, SHOT-304GS
