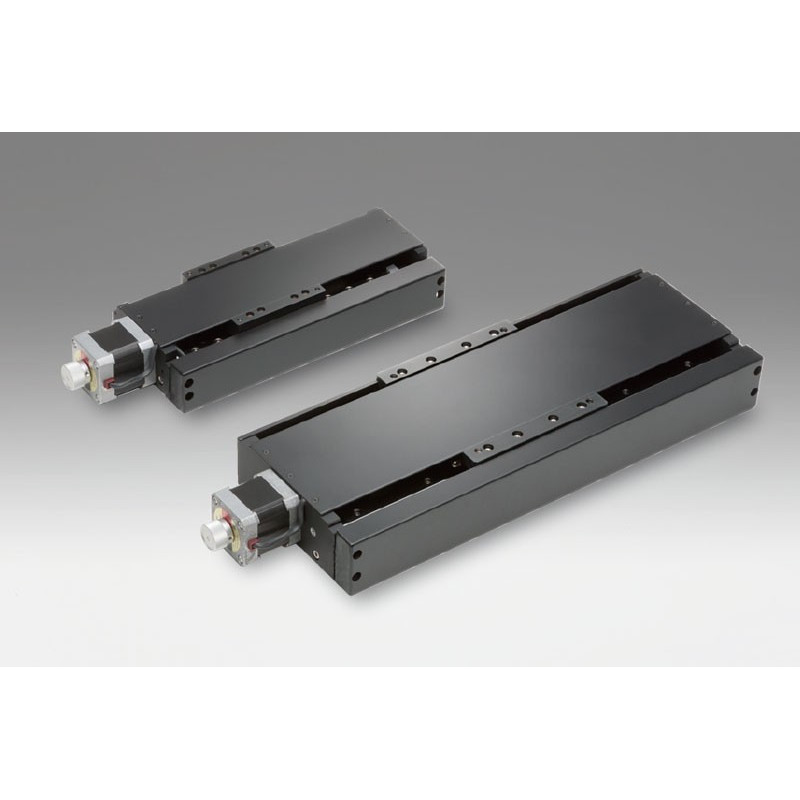

Thin Long X Axes, Aluminum

Reference number: OSE-KLSA-100X

€457.30

Tax excluded

Travel in mm

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Designed for high stiffness while minimizing the height of the stage. Material: Aluminum

Travel [mm]: 100

Table Size [mm]: 80x80

Feed Screw: Ball screw diameter Ø8mm, 2mm lead

Positioning Slide: Liner guide

Stage Material: Aluminium

Finish: Black anodized

Weight [kg]: 2.2

Resolution/(Full) [µm/pulse]: 4

Resolution/(Half) [µm/pulse]: 2

MAX Speed [mm/sec]: 30

Positioning Accuracy [µm]: 15

Positional Repeatability[µm]: 1

Load Capacity [N]: 147

Pitch [´´/N*cm]: 0.05

Yaw [´´/N*cm]: 0.05

Roll [´´/N*cm]: 0.1

Lost Motion [µm]: 4

Backlash [µm]: 1

Parallelism [µm]: 50

Running Parallelism [µm]: 10

Pitch [´´]/Yaw [´´]: 20/15

Sensor Part Number: Micro photo sensor: PM-L24 (SUNX Co., Ltd.): Limit sensor, origin sensor

Limit Sensor: Equipped

Origin Sensor: Equipped

Proximity Origin Sensor: None

Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)

Motor Part Number: PK545-NBW (42mm)

Step Angle: 0.72°

Power Voltage: DC+5V±24V

Current Consumption: 45mA or lower (15mA or lower per sensor)

Control Output: NPN open collector output 50mA

Output Logic: In the case of light shielded, output transistor OFF (No conduction): Limit sensor / In the case of light shielded, output transistor ON (Conduction): Origin sensor

Compatible Driver: SG-5M, SG-55M, SG-514MSC, MC-7514PCL

Compatible Controller: SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04

Downloads

OSE-KLSA-100X_STP.zip

MotorizedStages.zip

Travel [mm]: 200

Table Size [mm]: 120x120

Feed Screw: Ball screw diameter Ø10mm, 5mm lead

Positioning Slide: Liner guide

Stage Material: Aluminium

Finish: Black anodized

Weight [kg]: 5.1

Resolution/(Full) [µm/pulse]: 10

Resolution/(Half) [µm/pulse]: 5

MAX Speed [mm/sec]: 50

Positioning Accuracy [µm]: 20

Positional Repeatability[µm]: 1

Load Capacity [N]: 294

Pitch [´´/N*cm]: 0.02

Yaw [´´/N*cm]: 0.02

Roll [´´/N*cm]: 0.02

Lost Motion [µm]: 4

Backlash [µm]: 1

Parallelism [µm]: 50

Running Parallelism [µm]: 10

Pitch [´´]/Yaw [´´]: 40/20

Sensor Part Number: Micro photo sensor: PM-L24 (SUNX Co., Ltd.): Limit sensor, origin sensor

Limit Sensor: Equipped

Origin Sensor: Equipped

Proximity Origin Sensor: None

Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)

Motor Part Number: PK545-NBW (42mm)

Step Angle: 0.72°

Power Voltage: DC+5V±24V

Current Consumption: 45mA or lower (15mA or lower per sensor)

Control Output: NPN open collector output 50mA

Output Logic: In the case of light shielded, output transistor OFF (No conduction): Limit sensor / In the case of light shielded, output transistor ON (Conduction): Origin sensor

Compatible Driver: SG-5M, SG-55M, SG-514MSC, MC-7514PCL

Compatible Controller: SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04

Downloads

OSE-KLSA-200X_STP.zip

MotorizedStages.zip
