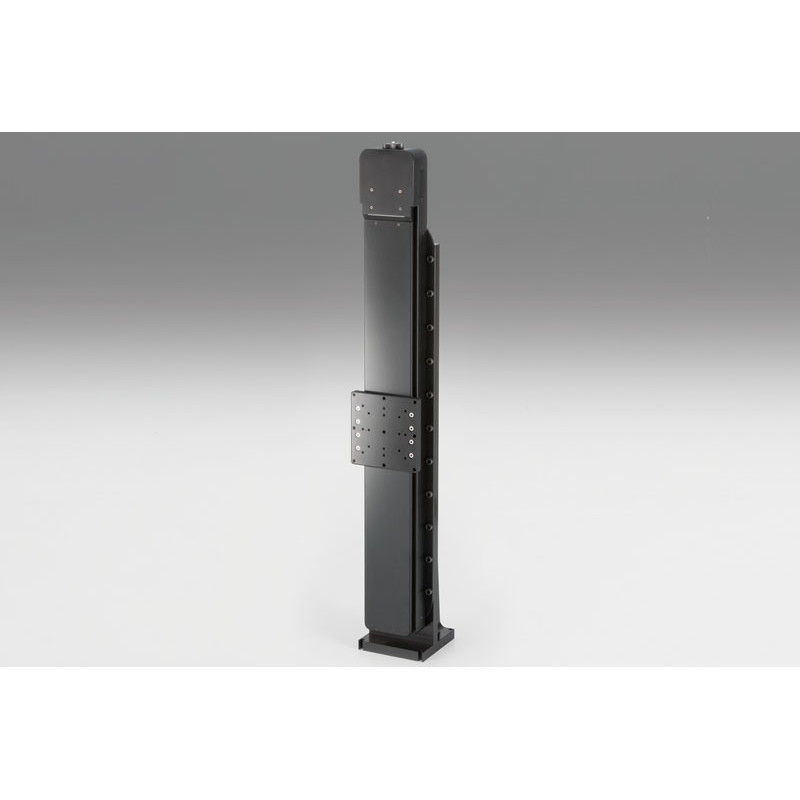

Z Axes, 120 x 120 mm

Reference number: OSE-OSMS33-300(Z)

€3,243.00

Tax excluded

Version

Travel in mm

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Stepping motor driven stages, ideal for positioning of measuring instruments or inspection tools for which high stiffness and high precision are reaquired.

Travel [mm]: 300

Table Size [mm]: 120x120

Feed Screw: Ball screw diameter Ø10mm, 10mm lead

Positioning Slide: Outer rail structure

Stage Material: Aluminium

Finish: Black anodized

Weight [kg]: 14.5

Resolution/(Full) [µm/pulse]: 20

Resolution/(Half) [µm/pulse]: 10

MAX Speed [mm/sec]: 30

Positioning Accuracy [µm]: 50

Positional Repeatability[µm]: 6

Load Capacity [N]: 68.6

Pitch [´´/N*cm]: 0.2

Yaw [´´/N*cm]: 0.15

Roll [´´/N*cm]: 0.15

Lost Motion [µm]: 5

Backlash [µm]: 3

Orthogonality of Motion [µm]: 30

Pitch [´´]/Yaw [´´]: 50/25

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: None

Proximity Origin Sensor: None

Type: 5-phase stepping motor 0.75A/phase (Tamagawa Seiki Co., Ltd.)

Motor Part Number: TS3667N43E967 (42mm)

Step Angle: 0.72°

Power Voltage: DC5-24V ±10%

Current Consumption: 40mA or lower (20mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA or lower

Output Logic: When shaded: Output transistor OFF (no conduction)

Compatible Driver: SG-55M, SG-55MA, SG-514MSC, MC-7514PCL

Compatible Controller: SHOT-702, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04

Downloads

OSE-HDS-120YAW_STP.zip

DOWNLOAD

MotorizedStages.zip

DOWNLOAD

Travel [mm]: 300

Table Size [mm]: 120x120

Feed Screw: Ball screw diameter Ø10mm, 10mm lead

Positioning Slide: Outer rail structure

Stage Material: Aluminium

Finish: Black anodized

Weight [kg]: 14.5

Resolution/(Full) [µm/pulse]: 20

Resolution/(Half) [µm/pulse]: 10

MAX Speed [mm/sec]: 30

Positioning Accuracy [µm]: 50

Positional Repeatability[µm]: 6

Load Capacity [N]: 68.6

Pitch [´´/N*cm]: 0.2

Yaw [´´/N*cm]: 0.15

Roll [´´/N*cm]: 0.15

Lost Motion [µm]: 5

Backlash [µm]: 3

Orthogonality of Motion [µm]: 30

Pitch [´´]/Yaw [´´]: 50/25

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: None

Proximity Origin Sensor: None

Type: 5-phase stepping motor 0.75A/phase (Tamagawa Seiki Co., Ltd.)

Motor Part Number: TS3667N43E967 (42mm)

Step Angle: 0.72°

Power Voltage: DC5-24V ±10%

Current Consumption: 40mA or lower (20mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA or lower

Output Logic: When shaded: Output transistor OFF (no conduction)

Compatible Driver: SG-55M, SG-55MA, SG-514MSC, MC-7514PCL

Compatible Controller: SHOT-702, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04

Downloads

OSE-HDS-120YAW_STP.zip

DOWNLOAD

MotorizedStages.zip

DOWNLOAD

Travel [mm]: 300

Table Size [mm]: 120x120

Feed Screw: Ball screw diameter Ø10mm, 10mm lead

Positioning Slide: Outer rail structure

Stage Material: Aluminium

Finish: Black anodized

Weight [kg]: 14.5

Resolution/(Full) [µm/pulse]: 20

Resolution/(Half) [µm/pulse]: 10

MAX Speed [mm/sec]: 30

Positioning Accuracy [µm]: 50

Positional Repeatability[µm]: 6

Load Capacity [N]: 68.6

Pitch [´´/N*cm]: 0.2

Yaw [´´/N*cm]: 0.15

Roll [´´/N*cm]: 0.15

Lost Motion [µm]: 5

Backlash [µm]: 3

Orthogonality of Motion [µm]: 30

Pitch [´´]/Yaw [´´]: 50/25

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: None

Proximity Origin Sensor: None

Type: 5-phase stepping motor 0.75A/phase (Tamagawa Seiki Co., Ltd.)

Motor Part Number: TS3667N43E967 (42mm)

Step Angle: 0.72°

Power Voltage: DC5-24V ±10%

Current Consumption: 40mA or lower (20mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA or lower

Output Logic: When shaded: Output transistor OFF (no conduction)

Compatible Driver: SG-55M, SG-55MA, SG-514MSC, MC-7514PCL

Compatible Controller: SHOT-702, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04

Downloads

OSE-HDS-120YAW_STP.zip

DOWNLOAD

MotorizedStages.zip

DOWNLOAD
