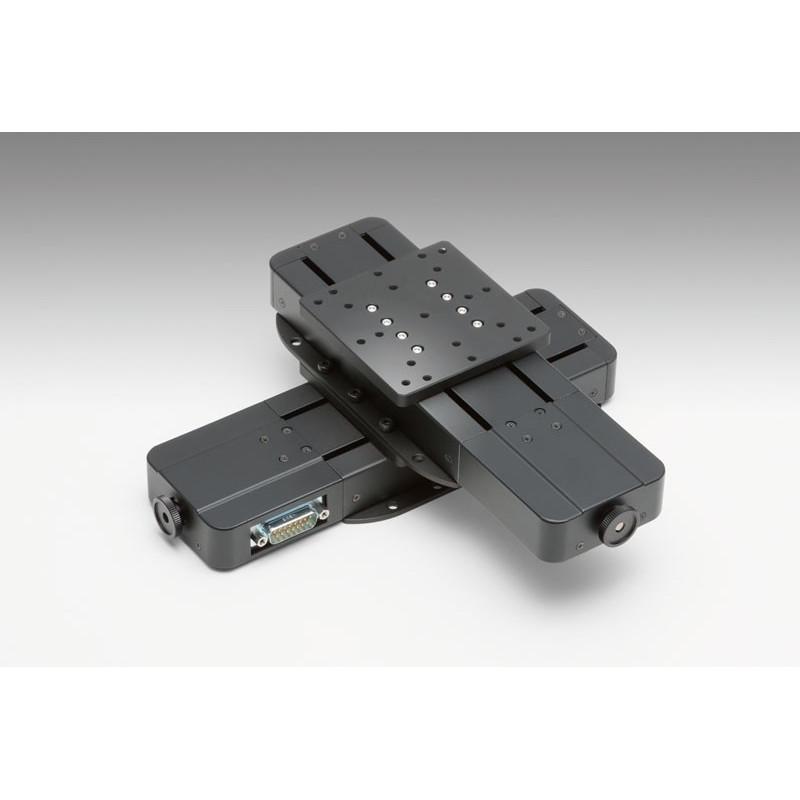

XY Axes, 85 x 85 mm

Reference number: OSE-OSMS20-35(XY)

€1,940.40

Tax excluded

Version

Travel in mm

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Stepping motor driven stages, ideal for positioning of measuring instruments or inspection tools for which high stiffness and high precision are reaquired.

Travel [mm]: 35

Table Size [mm]: 85x85

Feed Screw: Ball screw diameter Ø6mm, 1mm lead

Positioning Slide: Outer rail structure

Stage Material: Aluminium

Finish: Black anodized

Weight [kg]: 2.2

Resolution/(Full) [µm/pulse]: 2

Resolution/(Half) [µm/pulse]: 1

MAX Speed [mm/sec]: 25

Load Capacity [N]: 68.6

Backlash [µm]: 3

Orthogonality of Motion [µm]: 5

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: Equipped

Proximity Origin Sensor: None

Type: 5-phase stepping motor 0.75A/phase (Tamagawa Seiki Co., Ltd.)

Motor Part Number: TS3664N4E10 (24mm)

Step Angle: 0.72°

Power Voltage: DC5-24V ±10%

Current Consumption: 60mA or lower (20mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA or lower

Output Logic: When shaded: Output transistor OFF (no conduction)

Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL

Compatible Controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04

Downloads

MotorizedStages.zip

DOWNLOAD

Travel [mm]: 35

Table Size [mm]: 85x85

Feed Screw: Ball screw diameter Ø6mm, 1mm lead

Positioning Slide: Outer rail structure

Stage Material: Aluminium

Finish: Black anodized

Weight [kg]: 2.2

Resolution/(Full) [µm/pulse]: 2

Resolution/(Half) [µm/pulse]: 1

MAX Speed [mm/sec]: 25

Load Capacity [N]: 68.6

Backlash [µm]: 3

Orthogonality of Motion [µm]: 5

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: Equipped

Proximity Origin Sensor: None

Type: 5-phase stepping motor 0.75A/phase (Tamagawa Seiki Co., Ltd.)

Motor Part Number: TS3664N4E10 (24mm)

Step Angle: 0.72°

Power Voltage: DC5-24V ±10%

Current Consumption: 60mA or lower (20mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA or lower

Output Logic: When shaded: Output transistor OFF (no conduction)

Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL

Compatible Controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04

Downloads

MotorizedStages.zip

DOWNLOAD

Travel [mm]: 35

Table Size [mm]: 85x85

Feed Screw: Ball screw diameter Ø6mm, 1mm lead

Positioning Slide: Outer rail structure

Stage Material: Aluminium

Finish: Black anodized

Weight [kg]: 2.2

Resolution/(Full) [µm/pulse]: 2

Resolution/(Half) [µm/pulse]: 1

MAX Speed [mm/sec]: 25

Load Capacity [N]: 68.6

Backlash [µm]: 3

Orthogonality of Motion [µm]: 5

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: Equipped

Proximity Origin Sensor: None

Type: 5-phase stepping motor 0.75A/phase (Tamagawa Seiki Co., Ltd.)

Motor Part Number: TS3664N4E10 (24mm)

Step Angle: 0.72°

Power Voltage: DC5-24V ±10%

Current Consumption: 60mA or lower (20mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA or lower

Output Logic: When shaded: Output transistor OFF (no conduction)

Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL

Compatible Controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04

Downloads

MotorizedStages.zip

DOWNLOAD

Travel [mm]: 85

Table Size [mm]: 85x85

Feed Screw: Ball screw diameter Ø6mm, 1mm lead

Positioning Slide: Outer rail structure

Stage Material: Aluminium

Finish: Black anodized

Weight [kg]: 2.6

Resolution/(Full) [µm/pulse]: 2

Resolution/(Half) [µm/pulse]: 1

MAX Speed [mm/sec]: 25

Load Capacity [N]: 68.6

Backlash [µm]: 3

Orthogonality of Motion [µm]: 5

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: Equipped

Proximity Origin Sensor: Equipped

Type: 5-phase stepping motor 0.75A/phase (Tamagawa Seiki Co., Ltd.)

Motor Part Number: TS3664N4E10 (24mm)

Step Angle: 0.72°

Power Voltage: DC5-24V ±10%

Current Consumption: 60mA or lower (20mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA or lower

Output Logic: When shaded: Output transistor OFF (no conduction)

Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL

Compatible Controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04

Downloads

OSE-HDS-120YAW_STP.zip

DOWNLOAD

MotorizedStages.zip

DOWNLOAD

Travel [mm]: 85

Table Size [mm]: 85x85

Feed Screw: Ball screw diameter Ø6mm, 1mm lead

Positioning Slide: Outer rail structure

Stage Material: Aluminium

Finish: Black anodized

Weight [kg]: 2.6

Resolution/(Full) [µm/pulse]: 2

Resolution/(Half) [µm/pulse]: 1

MAX Speed [mm/sec]: 25

Load Capacity [N]: 68.6

Backlash [µm]: 3

Orthogonality of Motion [µm]: 5

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: Equipped

Proximity Origin Sensor: Equipped

Type: 5-phase stepping motor 0.75A/phase (Tamagawa Seiki Co., Ltd.)

Motor Part Number: TS3664N4E10 (24mm)

Step Angle: 0.72°

Power Voltage: DC5-24V ±10%

Current Consumption: 60mA or lower (20mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA or lower

Output Logic: When shaded: Output transistor OFF (no conduction)

Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL

Compatible Controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04

Downloads

OSE-HDS-120YAW_STP.zip

DOWNLOAD

MotorizedStages.zip

DOWNLOAD

Travel [mm]: 85

Table Size [mm]: 85x85

Feed Screw: Ball screw diameter Ø6mm, 1mm lead

Positioning Slide: Outer rail structure

Stage Material: Aluminium

Finish: Black anodized

Weight [kg]: 2.6

Resolution/(Full) [µm/pulse]: 2

Resolution/(Half) [µm/pulse]: 1

MAX Speed [mm/sec]: 25

Load Capacity [N]: 68.6

Backlash [µm]: 3

Orthogonality of Motion [µm]: 5

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: Equipped

Proximity Origin Sensor: Equipped

Type: 5-phase stepping motor 0.75A/phase (Tamagawa Seiki Co., Ltd.)

Motor Part Number: TS3664N4E10 (24mm)

Step Angle: 0.72°

Power Voltage: DC5-24V ±10%

Current Consumption: 60mA or lower (20mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA or lower

Output Logic: When shaded: Output transistor OFF (no conduction)

Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL

Compatible Controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04
