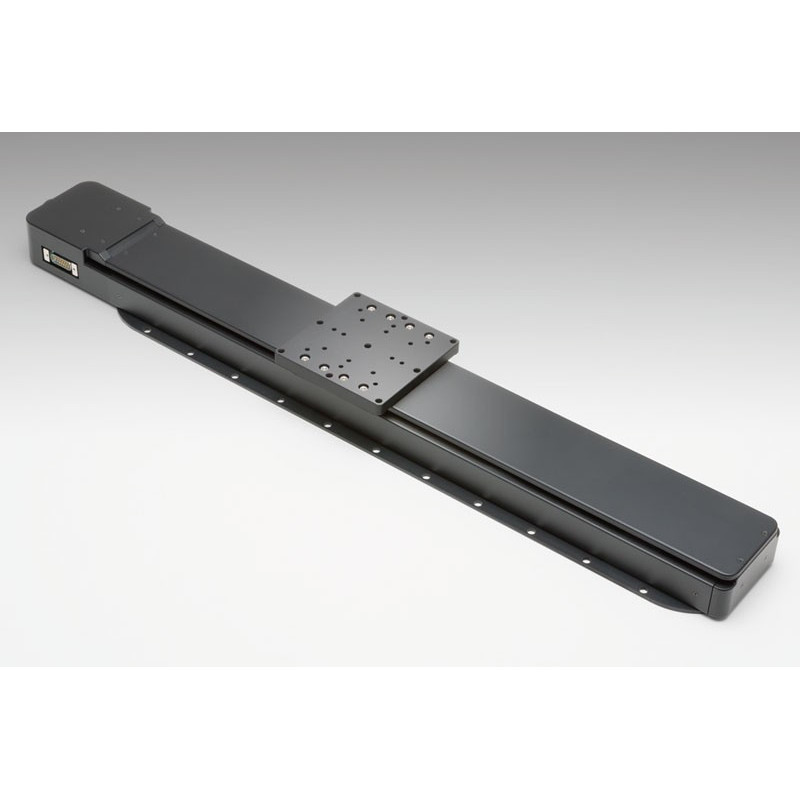

X Axes, 120 x 120 mm, Compact Scale

Reference number: OSE-OSMS(CS)33-300(X)

€3,940.20

Tax excluded

Version

Travel in mm

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Precision motorized stages with bult-in compact optical scales make highly accurate and relieable full closed loop system using controllers.

Travel [mm]: 300

Table Size [mm]: 120x120

Feed Screw: Ball screw diameter Ø10mm, 10mm lead

Positioning Slide: Outer rail structure

Stage Material: Aluminium

Finish: Black anodized

Weight [kg]: 7.8

Resolution/(Full) [µm/pulse]: 20

Resolution/(Half) [µm/pulse]: 10

MAX Speed [mm/sec]: 100

Positioning Accuracy [µm]: 25

Positional Repeatability[µm]: 5

Load Capacity [N]: 14.7

Pitch [´´/N*cm]: 0.12

Yaw [´´/N*cm]: 0.08

Roll [´´/N*cm]: 0.1

Lost Motion [µm]: 5

Backlash [µm]: 3

Parallelism [µm]: 50

Running Parallelism [µm]: 15

Pitch [´´]/Yaw [´´]: 40/25

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: Equipped

Proximity Origin Sensor: Equipped

Scale Head / Resolution [µm]: 0.5

Type: 5-phase stepping motor 0.75A/phase (Tamagawa Seiki Co., Ltd.)

Motor Part Number: TS3667N43E967 (42mm)

Step Angle: 0.72°

Power Voltage: DC5-24V ±10%

Current Consumption: 80mA or lower (20mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA or lower

Output Logic: When shaded: Output transistor OFF (no conduction)

Power Voltage / Current Consumption: DC5V±5% / 100mA

Driver Cable: D15D15A-CA

Scale Cable: GSEF-CA-3

Compatible Driver: -

Compatible Controller: SHOT-302GS, SHOT-304GS, HIT-M*HIT-S
