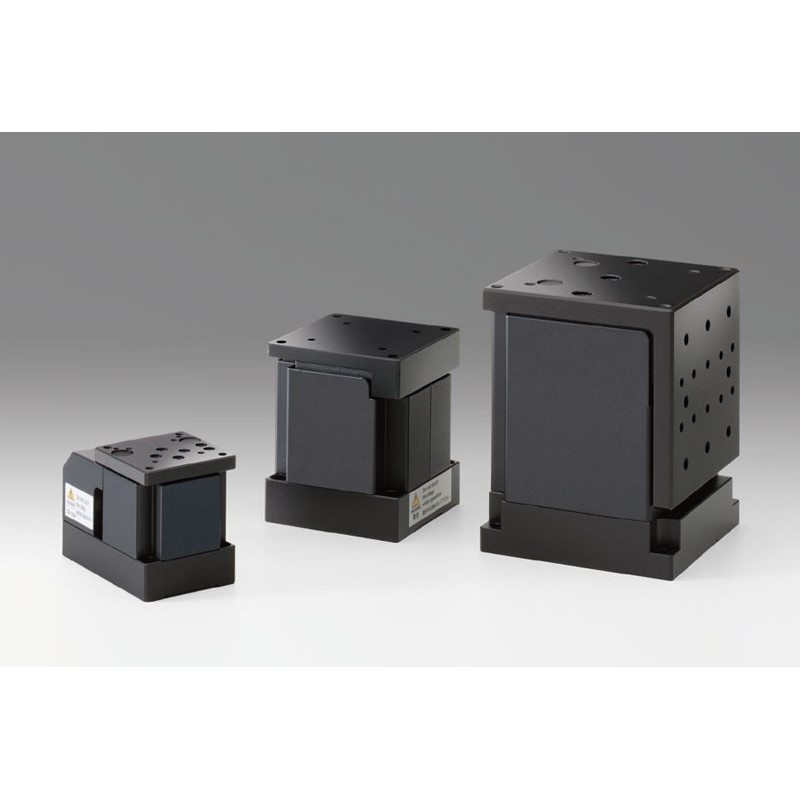

Flat Z Axes

Reference number: OSE-OSMS40-5ZF

€3,570.30

Tax excluded

Travel in mm

Stage Size in mm

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Z axes stepping motor driven stages for measurement and inspection, offering high stiffness and high precision. The mounting platform is oriented parallel to the base and is perpendicular to the direction of travel.

Travel [mm]: 5

Table Size [mm]: 40x40

Feed Screw: Ball screw diameter Ø5mm, 1mm lead

Positioning Slide: Outer rail structure

Stage Material: Aluminium

Finish: Black anodized

Weight [kg]: 0.35

Resolution/(Full) [µm/pulse]: 1

Resolution/(Half) [µm/pulse]: 0.5

MAX Speed [mm/sec]: 2

Positional Repeatability[µm]: 10

Load Capacity [N]: 19.6

Pitch [´´/N*cm]: 2.0

Yaw [´´/N*cm]: 2.0

Roll [´´/N*cm]: 1.0

Lost Motion [µm]: 5

Parallelism [µm]: 50

Running Parallelism [µm]: 15

Pitch [´´]: 25

Sensor Part Number: Micro photo sensor: GP1S097HCZ0F (Sharp Corporation): Limit Sensor (60-5ZF/60-10ZF) / Micro photo sensor: PM-U24 (SUNX Co.,Ltd.): Limit Sensor (40-5ZF/80-20ZF)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: None

Proximity Origin Sensor: None

Type: 5-phase stepping motor 0.35A/phase (Oriental Motor Co., Ltd.)

Motor Part Number: PK513PA-C21 (20mm)

Step Angle: 0.72°

Power Voltage: DC5-24V ±10% or lower

Current Consumption: 30mA or lower (15mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA or lower

Output Logic: When shaded: Output transistor OFF (no conduction)

Compatible Driver: SG-5MA, SG-55MA, SG-514MSC

Compatible Controller: GSC-01, GSC-02, SHOT-702, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04

Downloads

OSE-HDS-120YAW_STP.zip

DOWNLOAD

MotorizedStages.zip

DOWNLOAD

Travel [mm]: 5

Table Size [mm]: 60x60

Feed Screw: Ball screw diameter Ø6mm, 1mm lead

Positioning Slide: Outer rail structure

Stage Material: Aluminium

Finish: Black anodized

Weight [kg]: 0.6

Resolution/(Full) [µm/pulse]: 2

Resolution/(Half) [µm/pulse]: 1

MAX Speed [mm/sec]: 4

Positional Repeatability[µm]: 10

Load Capacity [N]: 39.2

Pitch [´´/N*cm]: 0.4

Yaw [´´/N*cm]: 1.0

Roll [´´/N*cm]: 1.0

Lost Motion [µm]: 5

Parallelism [µm]: 50

Running Parallelism [µm]: 15

Pitch [´´]: 20

Sensor Part Number: Micro photo sensor: GP1S097HCZ0F (Sharp Corporation): Limit Sensor (60-5ZF/60-10ZF) / Micro photo sensor: PM-U24 (SUNX Co.,Ltd.): Limit Sensor (40-5ZF/80-20ZF)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: None

Proximity Origin Sensor: None

Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)

Motor Part Number: PK523HPB-C12 (28mm)

Step Angle: 0.72°

Power Voltage: DC5-24V ±10% or lower

Current Consumption: 30mA or lower (15mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA or lower

Output Logic: When shaded: Output transistor OFF (no conduction)

Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL

Compatible Controller: GSC-01, GSC-02, SHOT-702, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04

Downloads

OSE-HDS-120YAW_STP.zip

DOWNLOAD

MotorizedStages.zip

DOWNLOAD

Travel [mm]: 10

Table Size [mm]: 60x60

Feed Screw: Ball screw diameter Ø6mm, 1mm lead

Positioning Slide: Outer rail structure

Stage Material: Aluminium

Finish: Black anodized

Weight [kg]: 0.6

Resolution/(Full) [µm/pulse]: 2

Resolution/(Half) [µm/pulse]: 1

MAX Speed [mm/sec]: 4

Positional Repeatability[µm]: 10

Load Capacity [N]: 39.2

Pitch [´´/N*cm]: 0.4

Yaw [´´/N*cm]: 1.0

Roll [´´/N*cm]: 1.0

Lost Motion [µm]: 5

Parallelism [µm]: 50

Running Parallelism [µm]: 15

Pitch [´´]: 20

Sensor Part Number: Micro photo sensor: GP1S097HCZ0F (Sharp Corporation): Limit Sensor (60-5ZF/60-10ZF) / Micro photo sensor: PM-U24 (SUNX Co.,Ltd.): Limit Sensor (40-5ZF/80-20ZF)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: None

Proximity Origin Sensor: None

Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)

Motor Part Number: PK523HPB-C12 (28mm)

Step Angle: 0.72°

Power Voltage: DC5-24V ±10% or lower

Current Consumption: 30mA or lower (15mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA or lower

Output Logic: When shaded: Output transistor OFF (no conduction)

Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL

Compatible Controller: GSC-01, GSC-02, SHOT-702, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04

Downloads

OSE-HDS-120YAW_STP.zip

DOWNLOAD

MotorizedStages.zip

DOWNLOAD

Travel [mm]: 20

Table Size [mm]: 80x80

Feed Screw: Ball screw diameter Ø8mm, 2mm lead

Positioning Slide: Outer rail structure

Stage Material: Aluminium

Finish: Black anodized

Weight [kg]: 1.6

Resolution/(Full) [µm/pulse]: 0.2

Resolution/(Half) [µm/pulse]: 0.1

MAX Speed [mm/sec]: 1

Positional Repeatability[µm]: 10

Load Capacity [N]: 147

Pitch [´´/N*cm]: 0.2

Yaw [´´/N*cm]: 1.0

Roll [´´/N*cm]: 1.0

Lost Motion [µm]: 5

Parallelism [µm]: 50

Running Parallelism [µm]: 15

Pitch [´´]: 25

Sensor Part Number: Micro photo sensor: GP1S097HCZ0F (Sharp Corporation): Limit Sensor (60-5ZF/60-10ZF) / Micro photo sensor: PM-U24 (SUNX Co.,Ltd.): Limit Sensor (40-5ZF/80-20ZF)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: None

Proximity Origin Sensor: None

Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)

Motor Part Number: A7177-90215KTG (28mm)

Step Angle: 0.036°

Power Voltage: DC5-24V ±10% or lower

Current Consumption: 30mA or lower (15mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA or lower

Output Logic: When shaded: Output transistor OFF (no conduction)

Compatible Driver: SG-55M, SG-55MA, SG-514MSC, MC-7514PCL

Compatible Controller: GSC-01, GSC-02, SHOT-702, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04
