Part number: OSE-TFAN-10C03-10

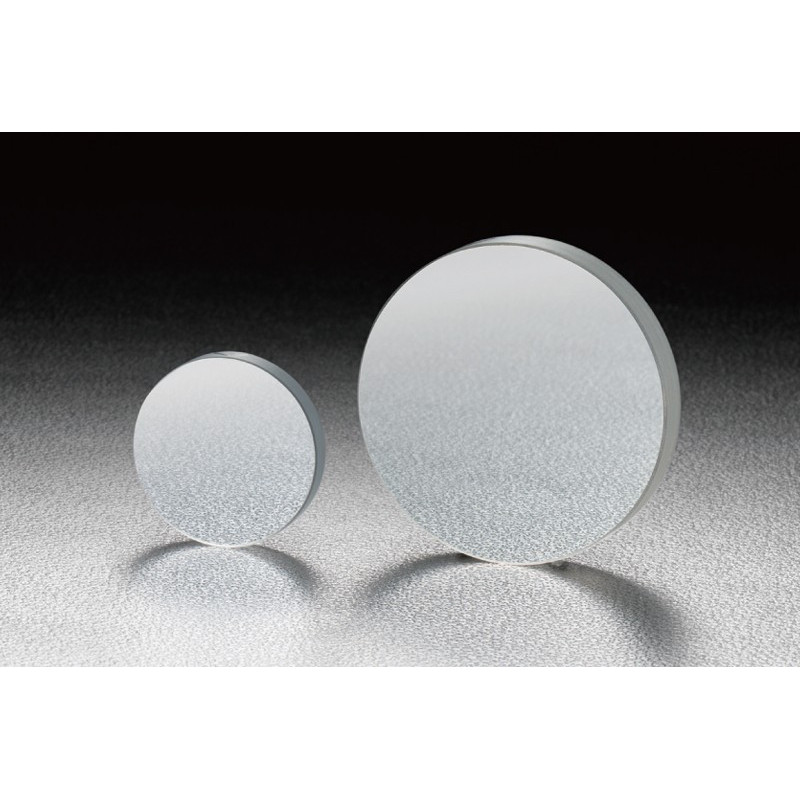

Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 10
Thickness of the optic [mm]: 3
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-10C05-10
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 10
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-10C05-20
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 10
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/20
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-15C03-10
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 15
Thickness of the optic [mm]: 3
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-15C05-10
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 15
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-15C05-20
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 15
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/20
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-20C03-10
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 20
Thickness of the optic [mm]: 3
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-20C05-4
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 20
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/4
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-20C05-10
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 20
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-20C05-20
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 20
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/20
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-25C05-1
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 25
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/1
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-25C05-4
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 25
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/4
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-25C05-10
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 25
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-25C05-20
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 25
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/20
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-25.4C05-10
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 25.4
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-30C05-1
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 30
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/1
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-30C05-4
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 30
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/4
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-30C05-10
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 30
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-30C05-20
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 30
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/20
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-40C06-1
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 40
Thickness of the optic [mm]: 6
Curvature [mm]: ∞
Material: BK7
Flatness: λ/1
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-40C06-4
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 40
Thickness of the optic [mm]: 6
Curvature [mm]: ∞
Material: BK7
Flatness: λ/4
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-40C06-10
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 40
Thickness of the optic [mm]: 6
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-40C06-20
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 40
Thickness of the optic [mm]: 6
Curvature [mm]: ∞
Material: BK7
Flatness: λ/20
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-50C08-1
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 50
Thickness of the optic [mm]: 8
Curvature [mm]: ∞
Material: BK7
Flatness: λ/1
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-50C08-4
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 50
Thickness of the optic [mm]: 8
Curvature [mm]: ∞
Material: BK7
Flatness: λ/4
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-50C08-10
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 50
Thickness of the optic [mm]: 8
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-50C08-20
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 50
Thickness of the optic [mm]: 8
Curvature [mm]: ∞
Material: BK7
Flatness: λ/20
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-60C10-1
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 60
Thickness of the optic [mm]: 10
Curvature [mm]: ∞
Material: BK7
Flatness: λ/1
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-60C10-4
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 60
Thickness of the optic [mm]: 10
Curvature [mm]: ∞
Material: BK7
Flatness: λ/4
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-60C10-10
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 60
Thickness of the optic [mm]: 10
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-60C10-20
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 60
Thickness of the optic [mm]: 10
Curvature [mm]: ∞
Material: BK7
Flatness: λ/20
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-80C12-1
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 80
Thickness of the optic [mm]: 12
Curvature [mm]: ∞
Material: BK7
Flatness: λ/1
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-80C12-4
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 80
Thickness of the optic [mm]: 12
Curvature [mm]: ∞
Material: BK7
Flatness: λ/4
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-80C12-10
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 80
Thickness of the optic [mm]: 12
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-80C12-20
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 80
Thickness of the optic [mm]: 12
Curvature [mm]: ∞
Material: BK7
Flatness: λ/20
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-100C15-1
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 100
Thickness of the optic [mm]: 15
Curvature [mm]: ∞
Material: BK7
Flatness: λ/1
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-100C15-4
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 100
Thickness of the optic [mm]: 15
Curvature [mm]: ∞
Material: BK7
Flatness: λ/4
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-100C15-10
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 100
Thickness of the optic [mm]: 15
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-130C18-1
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 130
Thickness of the optic [mm]: 18
Curvature [mm]: ∞
Material: BK7
Flatness: λ/1
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-130C18-4
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 130
Thickness of the optic [mm]: 18
Curvature [mm]: ∞
Material: BK7
Flatness: λ/4
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-130C18-10
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 130
Thickness of the optic [mm]: 18
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-150C20-1
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 150
Thickness of the optic [mm]: 20
Curvature [mm]: ∞
Material: BK7
Flatness: λ/1
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-150C20-4
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 150
Thickness of the optic [mm]: 20
Curvature [mm]: ∞
Material: BK7
Flatness: λ/4
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFAN-150C20-10
Type: Aluminium Mirror (Circle)
Wavelength range [nm]: 300 - 2500
Angle of incidence [°]: 0-45
Reflectivity [%]: 92
Coating: Al
Laser Damage Threshold (J/cm²): 0.25
Diameter [mm]: 150
Thickness of the optic [mm]: 20
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
