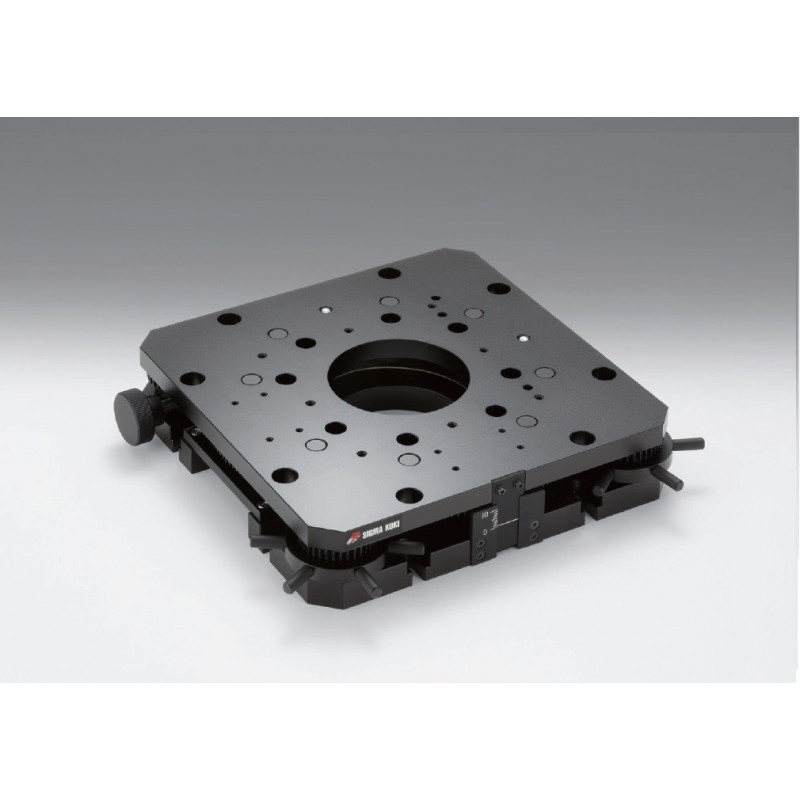

OSE-TSM: Z axis, 200 x 200 mm

Reference number: OSE-TSM-2003

Option

Version

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Type: Z axis
Tabel Size [mm]: 200×200
Maximum XYZ-travel [mm]: 10
Travel z-axis [± mm]: 10
Lead of Actuator [mm]: 1
Bearing type: Jack screw method
Primary Material: Aluminum
Finish: Black anodized
Readable Resolution [mm]: 1
Load Capacity [N]: 490
Travel Accuracy / Straightness [µm]: 200
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.05
Moment Stiffness / Roll [´´/Ncm]: 0.05
Parallelism [µm]: 150
Gewicht in kg: 5

Downloads

OSE-TSM-2003_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 200×200
Maximum XYZ-travel [mm]: 10
Travel z-axis [± mm]: 10
Lead of Actuator [mm]: 1
Bearing type: Jack screw method
Primary Material: Aluminum
Finish: Black anodized
Readable Resolution [mm]: 1
Load Capacity [N]: 490
Travel Accuracy / Straightness [µm]: 200
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.05
Moment Stiffness / Roll [´´/Ncm]: 0.05
Parallelism [µm]: 150
Gewicht in kg: 5

Downloads

OSE-TSM.pdf

OSE-TSM-2003-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 200×200
Maximum XYZ-travel [mm]: 10
Travel z-axis [± mm]: 10
Lead of Actuator [mm]: 1
Bearing type: Jack screw method
Primary Material: Aluminum
Finish: Black anodized
Readable Resolution [mm]: 1
Load Capacity [N]: 490
Travel Accuracy / Straightness [µm]: 200
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.05
Moment Stiffness / Roll [´´/Ncm]: 0.05
Parallelism [µm]: 150
Gewicht in kg: 5

Downloads

OSE-KSC_KSSA.pdf

OSE-TSM-2003UU_STP.zip

ManualStages.zip

Actuators.pdf
