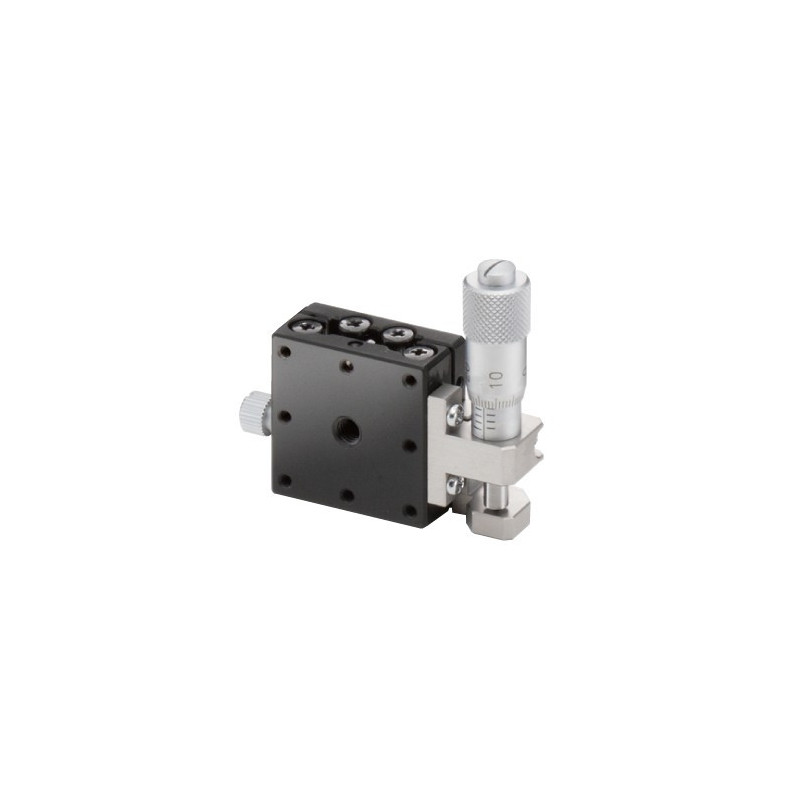

OSE-TSD-251SZ: Z axis, 25 x 25 mm

Reference number: OSE-TSD-251SZ

€207.50

Tax excluded

Table Size in mm

Model

Version

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€814.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€82.20
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€269.70
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€291.50

Type: Z axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel z-axis [± mm]: 3
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 14.7
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 2.2
Max. Moment Capacity / Roll [Nm]: 2.1
Moment Stiffness / Pitch [´´/Ncm]: 2.63
Running Parallelism: 10
Gewicht in kg: 0.07

Downloads

OSE-TSD-SZ.pdf

OSE-TSD-251SZ_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 5
Max. Moment Capacity / Roll [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.31
Running Parallelism: 10
Gewicht in kg: 0.2

Downloads

OSE-TSD-SZ.pdf

OSE-TSD-401SZ_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 8
Max. Moment Capacity / Roll [Nm]: 8
Moment Stiffness / Pitch [´´/Ncm]: 0.2
Running Parallelism: 10
Gewicht in kg: 0.5

Downloads

OSE-Long-SZ.pdf

OSE-TSD-601SZ_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel z-axis [± mm]: 3
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 14.7
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 2.2
Max. Moment Capacity / Roll [Nm]: 2.1
Moment Stiffness / Pitch [´´/Ncm]: 2.63
Running Parallelism: 10
Gewicht in kg: 0.07

Downloads

OSE-TSD-SZ.pdf

OSE-TSD-251SRZ_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 5
Max. Moment Capacity / Roll [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.31
Running Parallelism: 10
Gewicht in kg: 0.2

Downloads

OSE-TSD-SZ.pdf

OSE-TSD-401SRZ_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 8
Max. Moment Capacity / Roll [Nm]: 8
Moment Stiffness / Pitch [´´/Ncm]: 0.2
Running Parallelism: 10
Gewicht in kg: 0.5

Downloads

OSE-TSD-SZ.pdf

OSE-TSD-601SRZ_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 5
Max. Moment Capacity / Roll [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.31
Running Parallelism: 10
Gewicht in kg: 0.2

Downloads

OSE-TSD-SZ.pdf

OSE-TSD-401SZUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 5
Max. Moment Capacity / Roll [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.31
Running Parallelism: 10
Gewicht in kg: 0.2

Downloads

OSE-TSD-SZ.pdf

OSE-TSD-401SRZUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel z-axis [± mm]: 12.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 8
Max. Moment Capacity / Roll [Nm]: 8
Moment Stiffness / Pitch [´´/Ncm]: 0.2
Running Parallelism: 10
Gewicht in kg: 0.6

Downloads

OSE-TSD-SZ.pdf

OSE-TSD-651SZ25-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel z-axis [± mm]: 12.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 8
Max. Moment Capacity / Roll [Nm]: 8
Moment Stiffness / Pitch [´´/Ncm]: 0.2
Running Parallelism: 10
Gewicht in kg: 0.6

Downloads

OSE-Long-SZ.pdf

OSE-TSD-651SZ25-M6_STP.zip

ManualStages.zip

Actuators.pdf
