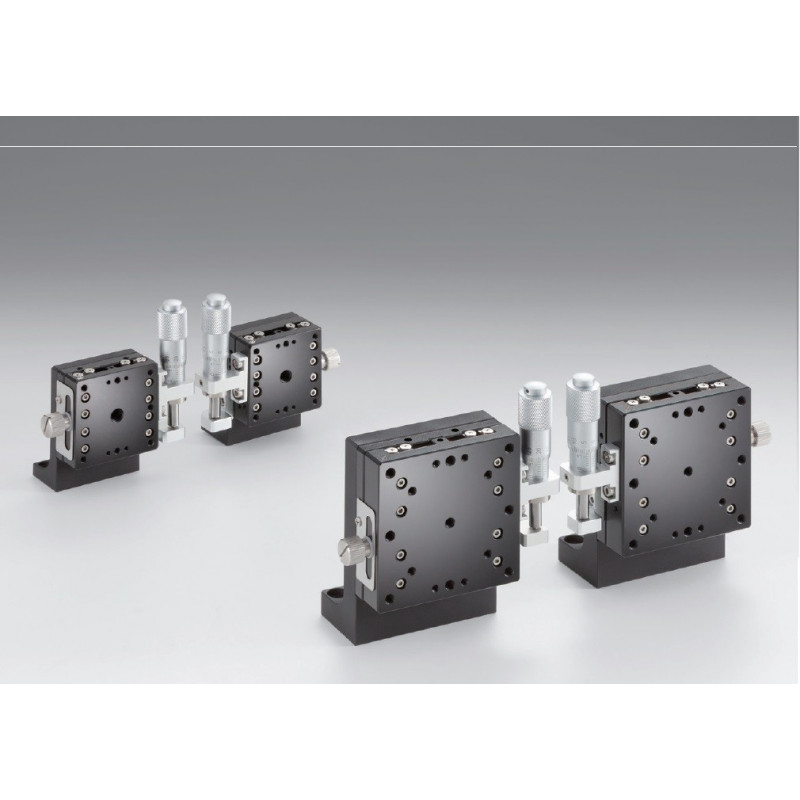

OSE-TADC-L: Z axis, 40 x 40 mm

Reference number: OSE-TADC-403L

€188.40

Tax excluded

Option

Table Size in mm

Model

Version

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€814.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€82.20
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€269.70
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€291.50

Type: Z axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 24.5
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 2.5
Max. Moment Capacity / Roll [Nm]: 2.5
Moment Stiffness / Pitch [´´/Ncm]: 0.66
Running Parallelism: 10
Gewicht in kg: 0.2

Downloads

OSE-TADC-L.pdf

OSE-TADC-403L_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 24.5
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 2.5
Max. Moment Capacity / Roll [Nm]: 2.5
Moment Stiffness / Pitch [´´/Ncm]: 0.66
Running Parallelism: 10
Gewicht in kg: 0.2

Downloads

OSE-TADC-L.pdf

OSE-TADC-403LUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 24.5
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 2.5
Max. Moment Capacity / Roll [Nm]: 2.5
Moment Stiffness / Pitch [´´/Ncm]: 0.66
Running Parallelism: 10
Gewicht in kg: 0.2

Downloads

OSE-TADC-L.pdf

OSE-TADC-403RL_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 24.5
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 2.5
Max. Moment Capacity / Roll [Nm]: 2.5
Moment Stiffness / Pitch [´´/Ncm]: 0.66
Running Parallelism: 10
Gewicht in kg: 0.2

Downloads

OSE-TADC-L.pdf

OSE-TADC-403RLUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 29.4
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Running Parallelism: 10
Gewicht in kg: 0.36

Downloads

OSE-TADC-L.pdf

OSE-TADC-603L_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 29.4
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Running Parallelism: 10
Gewicht in kg: 0.36

Downloads

OSE-TADC-401_402W.pdf

OSE-TADC-603RL_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel z-axis [± mm]: 3
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 14.7
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 1.47
Max. Moment Capacity / Roll [Nm]: 1.47
Moment Stiffness / Pitch [´´/Ncm]: 16
Running Parallelism: 20
Gewicht in kg: 0.07

Downloads

OSE-TADC-L.pdf

OSE-TADC-253L_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel z-axis [± mm]: 3
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 14.7
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 1.47
Max. Moment Capacity / Roll [Nm]: 1.47
Moment Stiffness / Pitch [´´/Ncm]: 16
Running Parallelism: 20
Gewicht in kg: 0.07

Downloads

OSE-TADC-SZ.pdf

OSE-TADC-253RL_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel z-axis [± mm]: 12.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 39.2
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Running Parallelism: 20
Gewicht in kg: 0.51

Downloads

OSE-TADC-L.pdf

OSE-TADC-653L25-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel z-axis [± mm]: 12.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 39.2
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Running Parallelism: 20
Gewicht in kg: 0.51

Downloads

OSE-TADC-SZ.pdf

OSE-TADC-653RL25-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel z-axis [± mm]: 12.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 39.2
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Running Parallelism: 20
Gewicht in kg: 0.51

Downloads

OSE-TADC-L.pdf

OSE-TADC-653L25UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel z-axis [± mm]: 12.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 39.2
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Running Parallelism: 20
Gewicht in kg: 0.51

Downloads

OSE-TADC-SZ.pdf

OSE-TADC-653RL25UU_STP.zip

ManualStages.zip

Actuators.pdf
