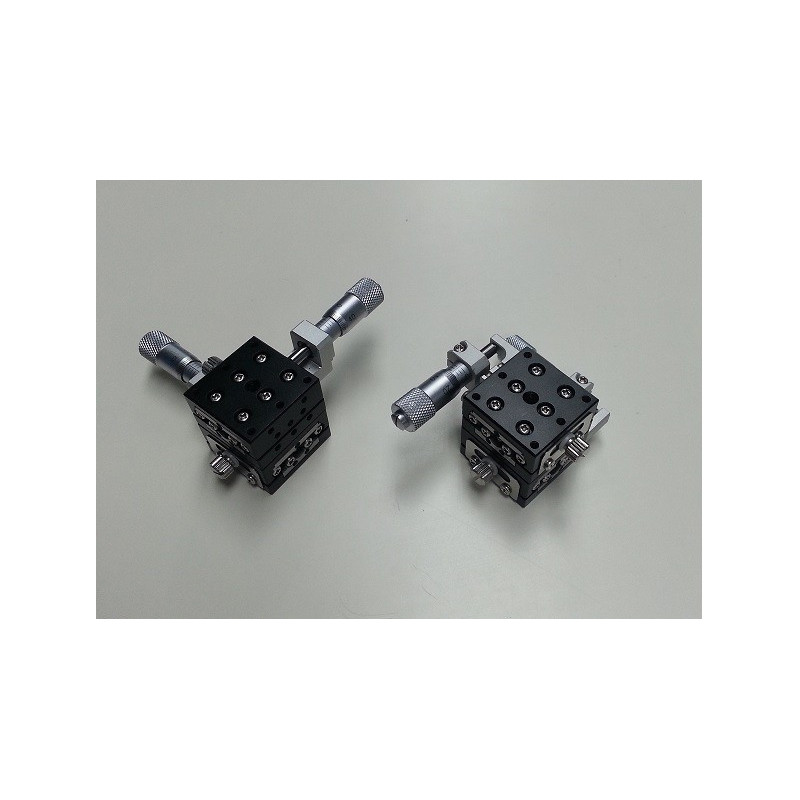

OSE-TADC-252W: XY axis, 25 x 25 mm

Reference number: OSE-TADC-252WC

€258.90

Tax excluded

Version

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€814.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€82.20
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€269.70
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€291.50

Type: XY axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [± mm]: 3
Travel y-axis [± mm]: 3
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 39.2
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 1.9
Max. Moment Capacity / Roll [Nm]: 1.9
Moment Stiffness / Pitch [´´/Ncm]: 4.5
Moment Stiffness / Roll [´´/Ncm]: 4.5
Parallelism [µm]: 60
Running Parallelism: 20
Orthogonality [µm]: 10
Gewicht in kg: 0.1
