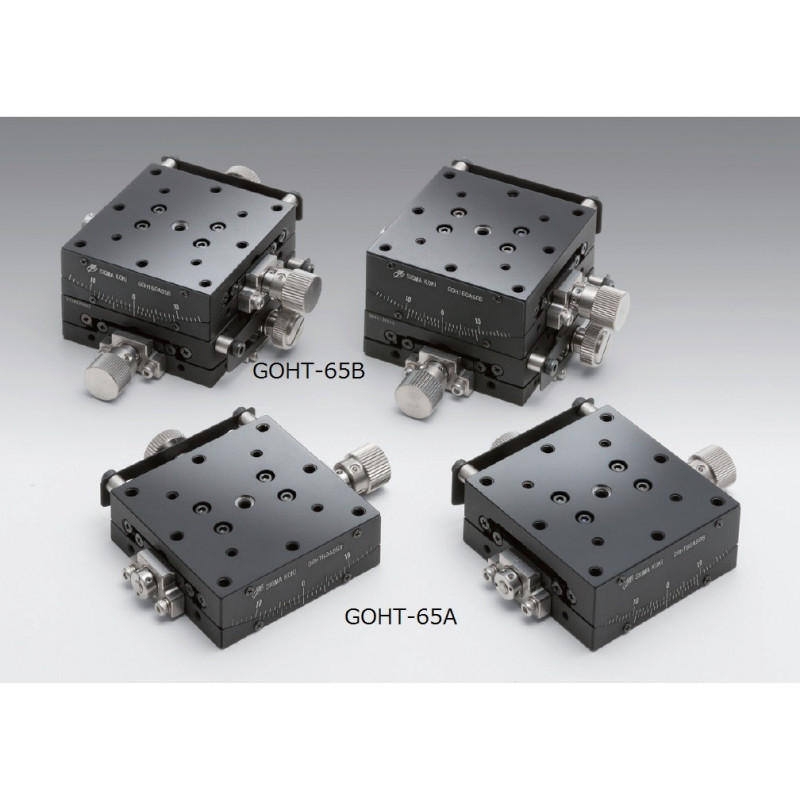

OSE-GOHT-65A: Goniometers, 65 x 65 mm

Reference number: OSE-GOHT-65A50B-M6

Model

Version

Rotation Center Height in mm

Model

Version

Rotation Center Height in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 50±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.70
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3.5
Max. Moment Capacity / Roll [Nm]: 6.5
Max. Moment Capacity / Yaw [Nm]: 3.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.3
Parallelism [µm]: 30
Gewicht in kg: 0.75

Downloads

OSE-GOHT-65A_GOHT-65B.pdf

OSE-GOHT-65A50B-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 50±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.70
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3.5
Max. Moment Capacity / Roll [Nm]: 6.5
Max. Moment Capacity / Yaw [Nm]: 3.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.3
Parallelism [µm]: 30
Gewicht in kg: 0.75

Downloads

OSE-GOHT-65A_GOHT-65B.pdf

OSE-GOHT-65A50BR-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 50±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.70
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3.5
Max. Moment Capacity / Roll [Nm]: 6.5
Max. Moment Capacity / Yaw [Nm]: 3.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.3
Parallelism [µm]: 30
Gewicht in kg: 0.75

Downloads

OSE-GOHT-65A_GOHT-65B.pdf

OSE-GOHT-65A50BUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 50±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.70
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3.5
Max. Moment Capacity / Roll [Nm]: 6.5
Max. Moment Capacity / Yaw [Nm]: 3.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.3
Parallelism [µm]: 30
Gewicht in kg: 0.75

Downloads

OSE-GOHT-65A_GOHT-65B.pdf

OSE-GOHT-65A50BRUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 75±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.22
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3.5
Max. Moment Capacity / Roll [Nm]: 6.5
Max. Moment Capacity / Yaw [Nm]: 3.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.3
Parallelism [µm]: 30
Gewicht in kg: 0.75

Downloads

OSE-GOHT-65A_GOHT-65B.pdf

OSE-GOHT-65A75B-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 75±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.22
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3.5
Max. Moment Capacity / Roll [Nm]: 6.5
Max. Moment Capacity / Yaw [Nm]: 3.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.3
Parallelism [µm]: 30
Gewicht in kg: 0.75

Downloads

OSE-GOHT-65A_GOHT-65B.pdf

OSE-GOHT-65A75BR-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 75±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.22
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3.5
Max. Moment Capacity / Roll [Nm]: 6.5
Max. Moment Capacity / Yaw [Nm]: 3.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.3
Parallelism [µm]: 30
Gewicht in kg: 0.75

Downloads

OSE-GOHT-65A_GOHT-65B.pdf

OSE-GOHT-65A75BUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 75±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.22
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3.5
Max. Moment Capacity / Roll [Nm]: 6.5
Max. Moment Capacity / Yaw [Nm]: 3.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.3
Parallelism [µm]: 30
Gewicht in kg: 0.75

Downloads

OSE-GOHT-65A_GOHT-65B.pdf

OSE-GOHT-65A75BRUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 100±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 0.95
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3.5
Max. Moment Capacity / Roll [Nm]: 6.5
Max. Moment Capacity / Yaw [Nm]: 3.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.3
Parallelism [µm]: 30
Gewicht in kg: 0.75

Downloads

OSE-GOHT-65A_GOHT-65B.pdf

OSE-GOHT-65A100B-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 100±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 0.95
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3.5
Max. Moment Capacity / Roll [Nm]: 6.5
Max. Moment Capacity / Yaw [Nm]: 3.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.3
Parallelism [µm]: 30
Gewicht in kg: 0.75

Downloads

OSE-GOHT-65A_GOHT-65B.pdf

OSE-GOHT-65A100BR-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 100±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 0.95
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3.5
Max. Moment Capacity / Roll [Nm]: 6.5
Max. Moment Capacity / Yaw [Nm]: 3.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.3
Parallelism [µm]: 30
Gewicht in kg: 0.75

Downloads

OSE-GOHT-65A_GOHT-65B.pdf

OSE-GOHT-65A100BUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 100±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 0.95
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3.5
Max. Moment Capacity / Roll [Nm]: 6.5
Max. Moment Capacity / Yaw [Nm]: 3.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.3
Parallelism [µm]: 30
Gewicht in kg: 0.75

Downloads

OSE-GOHT-65A_GOHT-65B.pdf

OSE-GOHT-65A100BRUU_STP.zip

ManualStages.zip

Actuators.pdf
