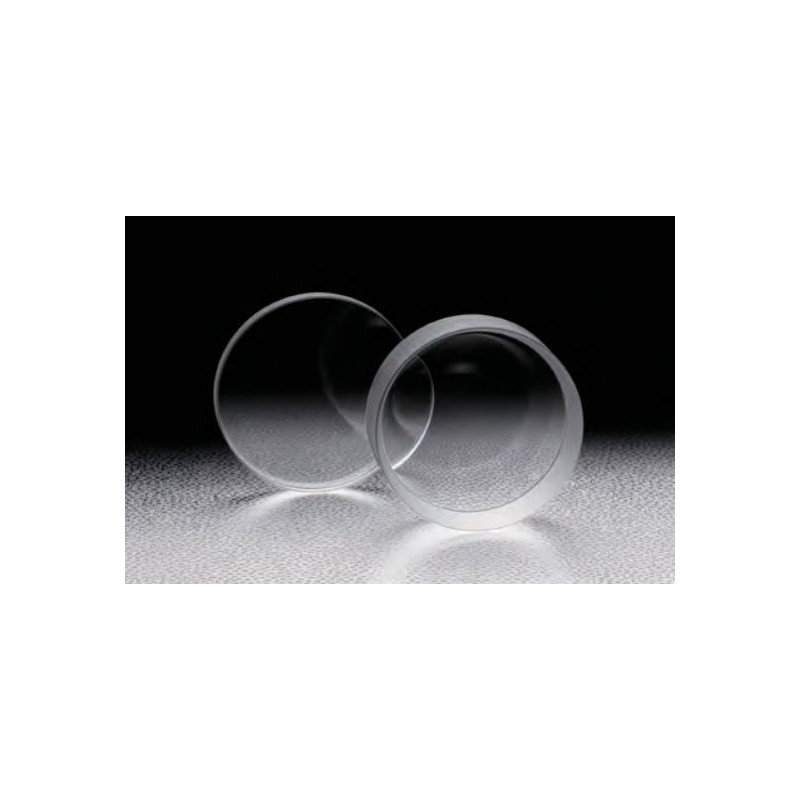

Planoconcave Lens, Uncoated, SiO2, Excimer

Reference number: OSE-SLSQK-30-50N

€511.30

Tax excluded

Focal length in mm

Diameter / AxB in mm

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

These simple negative lenses alone form a virtual image of a distant object or a collimated light source. In combination with other optics they reduce the power of the system.

Type: Plano Concave Lenses
Material: Synthetic fused silica
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20
Shape: round
Refractive index: 1,460
Design wavelength: 546.1 nm
Density (g/cm³): 2.2
Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
Thermal Conductivity [Wm^-1K^-1]: 1.38
Abbe Number: 67,8

Customer-specific coatings are also possible.

Those products may also interest you

ILEE Beam Expander

ILE-Beam-Expander

€0.00
ILEE Cylindrical Line Generating Lenses

ILE-Cylindrical-Lenses

€0.00
Plano Concave Cylindrical Lens, Uncoated, BK7

OSE-CLB-N

€121.90
Plano Concave Cylindrical Lens, AR [nm]: 400 -...

OSE-CLB-NM

€150.90
Plano Concave Cylindrical Lens, AR [nm]: 633 -...

OSE-CLB-NIR1

€158.50

Type: Plano Concave Lenses
Material: Synthetic fused silica
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -50
Edge thickness te [mm]: 7.6
Center thickness tc [mm]: 2
Back focal length fb [mm]: -51.4
Curvature radius r [mm]: 23

Refractive index: 1,460
Design wavelength: 546.1 nm
Density (g/cm³): 2.2
Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
Thermal Conductivity [Wm^-1K^-1]: 1.38
Abbe Number: 67,8

Customer-specific coatings are also possible.

Downloads

OSE-SLSQK-30-50N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLSQK-30-300P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: Synthetic fused silica
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -60
Edge thickness te [mm]: 6.4
Center thickness tc [mm]: 2
Back focal length fb [mm]: -61.4
Curvature radius r [mm]: 27.6

Refractive index: 1,460
Design wavelength: 546.1 nm
Density (g/cm³): 2.2
Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
Thermal Conductivity [Wm^-1K^-1]: 1.38
Abbe Number: 67,8

Customer-specific coatings are also possible.

Downloads

OSE-SLSQK-30-60N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLSQK-30-300P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: Synthetic fused silica
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -70
Edge thickness te [mm]: 5.7
Center thickness tc [mm]: 2
Back focal length fb [mm]: -71.4
Curvature radius r [mm]: 32.2

Refractive index: 1,460
Design wavelength: 546.1 nm
Density (g/cm³): 2.2
Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
Thermal Conductivity [Wm^-1K^-1]: 1.38
Abbe Number: 67,8

Customer-specific coatings are also possible.

Downloads

OSE-SLSQK-30-70N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLSQK-30-300P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: Synthetic fused silica
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -100
Edge thickness te [mm]: 4.5
Center thickness tc [mm]: 2
Back focal length fb [mm]: -101.4
Curvature radius r [mm]: 46

Refractive index: 1,460
Design wavelength: 546.1 nm
Density (g/cm³): 2.2
Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
Thermal Conductivity [Wm^-1K^-1]: 1.38
Abbe Number: 67,8

Customer-specific coatings are also possible.

Downloads

OSE-SLSQK-30-100N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLSQ-100-1000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: Synthetic fused silica
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -150
Edge thickness te [mm]: 3.7
Center thickness tc [mm]: 2
Back focal length fb [mm]: -151.4
Curvature radius r [mm]: 69

Refractive index: 1,460
Design wavelength: 546.1 nm
Density (g/cm³): 2.2
Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
Thermal Conductivity [Wm^-1K^-1]: 1.38
Abbe Number: 67,8

Customer-specific coatings are also possible.

Downloads

OSE-SLSQK-30-150N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLSQ-100-1000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: Synthetic fused silica
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -70
Edge thickness te [mm]: 14.9
Center thickness tc [mm]: 3
Back focal length fb [mm]: -72.1
Curvature radius r [mm]: 32.2

Refractive index: 1,460
Design wavelength: 546.1 nm
Density (g/cm³): 2.2
Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
Thermal Conductivity [Wm^-1K^-1]: 1.38
Abbe Number: 67,8

Customer-specific coatings are also possible.

Downloads

OSE-SLSQK-50-70N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLSQK-50-500P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: Synthetic fused silica
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -80
Edge thickness te [mm]: 12.8
Center thickness tc [mm]: 3
Back focal length fb [mm]: -82.1
Curvature radius r [mm]: 36.8

Refractive index: 1,460
Design wavelength: 546.1 nm
Density (g/cm³): 2.2
Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
Thermal Conductivity [Wm^-1K^-1]: 1.38
Abbe Number: 67,8

Customer-specific coatings are also possible.

Downloads

OSE-SLSQK-50-80N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLSQK-50-500P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: Synthetic fused silica
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -100
Edge thickness te [mm]: 10.4
Center thickness tc [mm]: 3
Back focal length fb [mm]: -102.1
Curvature radius r [mm]: 46

Refractive index: 1,460
Design wavelength: 546.1 nm
Density (g/cm³): 2.2
Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
Thermal Conductivity [Wm^-1K^-1]: 1.38
Abbe Number: 67,8

Customer-specific coatings are also possible.

Downloads

OSE-SLSQK-50-100N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLSQK-50-100N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: Synthetic fused silica
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -150
Edge thickness te [mm]: 7.7
Center thickness tc [mm]: 3
Back focal length fb [mm]: -152.1
Curvature radius r [mm]: 69

Refractive index: 1,460
Design wavelength: 546.1 nm
Density (g/cm³): 2.2
Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
Thermal Conductivity [Wm^-1K^-1]: 1.38
Abbe Number: 67,8

Customer-specific coatings are also possible.

Downloads

OSE-SLSQK-50-150N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLSQK-50-150N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: Synthetic fused silica
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -200
Edge thickness te [mm]: 6.5
Center thickness tc [mm]: 3
Back focal length fb [mm]: -202.1
Curvature radius r [mm]: 92

Refractive index: 1,460
Design wavelength: 546.1 nm
Density (g/cm³): 2.2
Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
Thermal Conductivity [Wm^-1K^-1]: 1.38
Abbe Number: 67,8

Customer-specific coatings are also possible.

Downloads

OSE-SLSQK-50-200N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLSQK-50-200N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls
