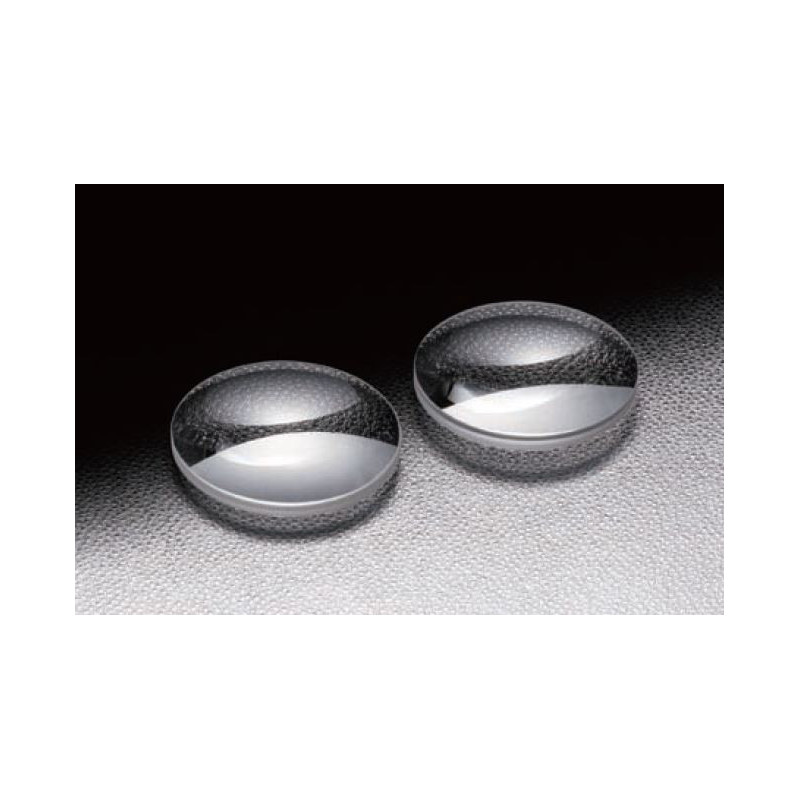

Biconvex Lens, AR [nm]: 633 - 1064, BK7

Reference number: OSE-SLB-05B-06PIR1

Type: Biconvex Lenses
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Material: BK7

Focal length in mm

Diameter / AxB in mm

Focal length in mm

Diameter / AxB in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Symmetrical biconvex lenses are most useful when the conjugate points are finite. This makes them ideal for 1:1 imaging applications or for use in multi-element systems.

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20
Shape: round
Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø5
Focal length f [mm]: 6.4
Edge thickness te [mm]: 1.5
Center thickness tc [mm]: 2.5
Back focal length fb [mm]: 5.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-05B-06PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø5
Focal length f [mm]: 8.4
Edge thickness te [mm]: 1.4
Center thickness tc [mm]: 2.1
Back focal length fb [mm]: 7.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-05B-08PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø5
Focal length f [mm]: 10.3
Edge thickness te [mm]: 1.3
Center thickness tc [mm]: 1.9
Back focal length fb [mm]: 9.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-05B-10PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø5
Focal length f [mm]: 12.3
Edge thickness te [mm]: 1.2
Center thickness tc [mm]: 1.7
Back focal length fb [mm]: 11.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-05B-12PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø5
Focal length f [mm]: 15.3
Edge thickness te [mm]: 1.2
Center thickness tc [mm]: 1.6
Back focal length fb [mm]: 14.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-05B-15PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø5
Focal length f [mm]: 20.2
Edge thickness te [mm]: 1.1
Center thickness tc [mm]: 1.4
Back focal length fb [mm]: 19.8

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-05B-20PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø5
Focal length f [mm]: 25.2
Edge thickness te [mm]: 1.1
Center thickness tc [mm]: 1.3
Back focal length fb [mm]: 24.8

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-05B-25PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø6
Focal length f [mm]: 6.4
Edge thickness te [mm]: 1
Center thickness tc [mm]: 2.5
Back focal length fb [mm]: 5.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-06B-06PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø6
Focal length f [mm]: 8.4
Edge thickness te [mm]: 1
Center thickness tc [mm]: 2.1
Back focal length fb [mm]: 7.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-06B-08PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø6
Focal length f [mm]: 10.3
Edge thickness te [mm]: 1
Center thickness tc [mm]: 1.9
Back focal length fb [mm]: 9.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-06B-10PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø6
Focal length f [mm]: 12.3
Edge thickness te [mm]: 1
Center thickness tc [mm]: 1.7
Back focal length fb [mm]: 11.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-06B-12PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø6
Focal length f [mm]: 15.3
Edge thickness te [mm]: 1
Center thickness tc [mm]: 1.6
Back focal length fb [mm]: 14.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-06B-15PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø6
Focal length f [mm]: 20.2
Edge thickness te [mm]: 1
Center thickness tc [mm]: 1.4
Back focal length fb [mm]: 19.8

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-06B-20PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø7
Focal length f [mm]: 8.6
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3.6
Back focal length fb [mm]: 7.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-07B-08PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø7
Focal length f [mm]: 10.5
Edge thickness te [mm]: 1.9
Center thickness tc [mm]: 3.1
Back focal length fb [mm]: 9.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-07B-10PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø7
Focal length f [mm]: 12.5
Edge thickness te [mm]: 1.8
Center thickness tc [mm]: 2.8
Back focal length fb [mm]: 11.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-07B-12PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø7
Focal length f [mm]: 15.4
Edge thickness te [mm]: 1.7
Center thickness tc [mm]: 2.5
Back focal length fb [mm]: 14.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-07B-15PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø7
Focal length f [mm]: 20.4
Edge thickness te [mm]: 1.7
Center thickness tc [mm]: 2.3
Back focal length fb [mm]: 19.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-07B-20PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø8
Focal length f [mm]: 8.6
Edge thickness te [mm]: 1.5
Center thickness tc [mm]: 3.6
Back focal length fb [mm]: 7.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-08B-08PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø8
Focal length f [mm]: 10.5
Edge thickness te [mm]: 1.5
Center thickness tc [mm]: 3.1
Back focal length fb [mm]: 9.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-08B-10PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø8
Focal length f [mm]: 12.5
Edge thickness te [mm]: 1.5
Center thickness tc [mm]: 2.8
Back focal length fb [mm]: 11.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-08B-12PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø8
Focal length f [mm]: 15.4
Edge thickness te [mm]: 1.5
Center thickness tc [mm]: 2.5
Back focal length fb [mm]: 14.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-08B-15PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø8
Focal length f [mm]: 20.4
Edge thickness te [mm]: 1.5
Center thickness tc [mm]: 2.3
Back focal length fb [mm]: 19.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-08B-20PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø8
Focal length f [mm]: 25.4
Edge thickness te [mm]: 1.5
Center thickness tc [mm]: 2.1
Back focal length fb [mm]: 24.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-08B-25PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: 10.8
Edge thickness te [mm]: 2
Center thickness tc [mm]: 4.6
Back focal length fb [mm]: 9.2

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10B-10PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: 15.6
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3.6
Back focal length fb [mm]: 14.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10B-15PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: 20.5
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3.2
Back focal length fb [mm]: 19.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10B-20PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: 25.5
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3
Back focal length fb [mm]: 24.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10B-25PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: 30.5
Edge thickness te [mm]: 2
Center thickness tc [mm]: 2.8
Back focal length fb [mm]: 29.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10B-30PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: 40.4
Edge thickness te [mm]: 2
Center thickness tc [mm]: 2.6
Back focal length fb [mm]: 39.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10B-40PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: 50.4
Edge thickness te [mm]: 2
Center thickness tc [mm]: 2.5
Back focal length fb [mm]: 49.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10B-50PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: 60.4
Edge thickness te [mm]: 2
Center thickness tc [mm]: 2.4
Back focal length fb [mm]: 59.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10B-60PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: 70.4
Edge thickness te [mm]: 2
Center thickness tc [mm]: 2.3
Back focal length fb [mm]: 69.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10B-70PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: 80.4
Edge thickness te [mm]: 2
Center thickness tc [mm]: 2.3
Back focal length fb [mm]: 79.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10B-80PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: 90.4
Edge thickness te [mm]: 2
Center thickness tc [mm]: 2.3
Back focal length fb [mm]: 89.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10B-90PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: 100.4
Edge thickness te [mm]: 2
Center thickness tc [mm]: 2.2
Back focal length fb [mm]: 99.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10B-100PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: 16
Edge thickness te [mm]: 2
Center thickness tc [mm]: 5.9
Back focal length fb [mm]: 14

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15B-15PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: 20.8
Edge thickness te [mm]: 2
Center thickness tc [mm]: 4.8
Back focal length fb [mm]: 19.2

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15B-20PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: 25.7
Edge thickness te [mm]: 2
Center thickness tc [mm]: 4.2
Back focal length fb [mm]: 24.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15B-25PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: 30.6
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3.8
Back focal length fb [mm]: 29.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15B-30PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: 40.6
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3.4
Back focal length fb [mm]: 39.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15B-40PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: 50.5
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3.1
Back focal length fb [mm]: 49.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15B-50PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: 60.5
Edge thickness te [mm]: 2
Center thickness tc [mm]: 2.9
Back focal length fb [mm]: 59.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15B-60PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: 70.5
Edge thickness te [mm]: 2
Center thickness tc [mm]: 2.8
Back focal length fb [mm]: 69.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15B-70PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: 80.4
Edge thickness te [mm]: 2
Center thickness tc [mm]: 2.7
Back focal length fb [mm]: 79.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15B-80PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: 90.4
Edge thickness te [mm]: 2
Center thickness tc [mm]: 2.6
Back focal length fb [mm]: 89.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15B-90PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: 100.4
Edge thickness te [mm]: 2
Center thickness tc [mm]: 2.5
Back focal length fb [mm]: 99.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15B-100PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: 21.2
Edge thickness te [mm]: 2
Center thickness tc [mm]: 7.1
Back focal length fb [mm]: 18.8

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20B-20PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: 26
Edge thickness te [mm]: 2
Center thickness tc [mm]: 6
Back focal length fb [mm]: 24

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20B-25PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: 31
Edge thickness te [mm]: 2
Center thickness tc [mm]: 5.3
Back focal length fb [mm]: 29.1

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20B-30PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: 40.7
Edge thickness te [mm]: 2
Center thickness tc [mm]: 4.4
Back focal length fb [mm]: 39.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20B-40PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: 50.7
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3.9
Back focal length fb [mm]: 49.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20B-50PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: 60.6
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3.6
Back focal length fb [mm]: 59.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20B-60PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: 70.6
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3.4
Back focal length fb [mm]: 69.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20B-70PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: 80.5
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3.2
Back focal length fb [mm]: 79.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20B-80PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: 90.5
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3.1
Back focal length fb [mm]: 89.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20B-90PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: 100.5
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3
Back focal length fb [mm]: 99.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20B-100PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: 120.5
Edge thickness te [mm]: 2
Center thickness tc [mm]: 2.8
Back focal length fb [mm]: 119.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20B-120PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: 150.4
Edge thickness te [mm]: 2
Center thickness tc [mm]: 2.6
Back focal length fb [mm]: 149.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20B-150PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: 26.5
Edge thickness te [mm]: 2
Center thickness tc [mm]: 8.4
Back focal length fb [mm]: 23.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25B-25PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: 31.2
Edge thickness te [mm]: 2
Center thickness tc [mm]: 7.2
Back focal length fb [mm]: 28.8

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25B-30PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: 36.1
Edge thickness te [mm]: 2
Center thickness tc [mm]: 6.4
Back focal length fb [mm]: 33.9

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25B-35PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: 41
Edge thickness te [mm]: 2
Center thickness tc [mm]: 5.9
Back focal length fb [mm]: 39

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25B-40PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: 50.8
Edge thickness te [mm]: 2
Center thickness tc [mm]: 5.1
Back focal length fb [mm]: 49.2

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25B-50PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: 60.8
Edge thickness te [mm]: 2
Center thickness tc [mm]: 4.5
Back focal length fb [mm]: 59.2

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25B-60PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: 70.7
Edge thickness te [mm]: 2
Center thickness tc [mm]: 4.2
Back focal length fb [mm]: 69.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25B-70PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: 80.6
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3.9
Back focal length fb [mm]: 79.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25B-80PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: 90.6
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3.7
Back focal length fb [mm]: 89.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25B-90PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: 100.6
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3.5
Back focal length fb [mm]: 99.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25B-100PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: 150.5
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3
Back focal length fb [mm]: 149.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25B-150PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: 170.5
Edge thickness te [mm]: 2
Center thickness tc [mm]: 2.9
Back focal length fb [mm]: 169.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25B-170PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: 200.5
Edge thickness te [mm]: 2
Center thickness tc [mm]: 2.8
Back focal length fb [mm]: 199.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25B-200PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: 26.5
Edge thickness te [mm]: 1.8
Center thickness tc [mm]: 8.4
Back focal length fb [mm]: 23.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4B-25PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: 31.2
Edge thickness te [mm]: 1.8
Center thickness tc [mm]: 7.2
Back focal length fb [mm]: 28.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4B-30PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: 36.1
Edge thickness te [mm]: 1.8
Center thickness tc [mm]: 6.4
Back focal length fb [mm]: 33.9

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4B-35PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: 41
Edge thickness te [mm]: 1.9
Center thickness tc [mm]: 5.9
Back focal length fb [mm]: 39

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4B-40PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: 50.8
Edge thickness te [mm]: 1.9
Center thickness tc [mm]: 5.1
Back focal length fb [mm]: 49.2

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4B-50PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: 60.8
Edge thickness te [mm]: 1.9
Center thickness tc [mm]: 4.5
Back focal length fb [mm]: 59.2

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4B-60PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: 70.7
Edge thickness te [mm]: 1.9
Center thickness tc [mm]: 4.1
Back focal length fb [mm]: 69.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4B-70PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: 80.6
Edge thickness te [mm]: 1.9
Center thickness tc [mm]: 3.9
Back focal length fb [mm]: 79.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4B-80PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: 100.6
Edge thickness te [mm]: 1.9
Center thickness tc [mm]: 3.5
Back focal length fb [mm]: 99.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4B-100PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: 150.5
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3
Back focal length fb [mm]: 149.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4B-150PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: 200.5
Edge thickness te [mm]: 2
Center thickness tc [mm]: 2.8
Back focal length fb [mm]: 199.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4B-200PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: 31.7
Edge thickness te [mm]: 2
Center thickness tc [mm]: 9.7
Back focal length fb [mm]: 28.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30B-30PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: 36.5
Edge thickness te [mm]: 2
Center thickness tc [mm]: 8.5
Back focal length fb [mm]: 33.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30B-35PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: 41.3
Edge thickness te [mm]: 2
Center thickness tc [mm]: 7.6
Back focal length fb [mm]: 38.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30B-40PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: 51.1
Edge thickness te [mm]: 2
Center thickness tc [mm]: 6.4
Back focal length fb [mm]: 48.9

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30B-50PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: 60.9
Edge thickness te [mm]: 2
Center thickness tc [mm]: 5.7
Back focal length fb [mm]: 59.1

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30B-60PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: 70.9
Edge thickness te [mm]: 2
Center thickness tc [mm]: 5.1
Back focal length fb [mm]: 69.1

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30B-70PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: 80.8
Edge thickness te [mm]: 2
Center thickness tc [mm]: 4.7
Back focal length fb [mm]: 79.2

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30B-80PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: 100.7
Edge thickness te [mm]: 2
Center thickness tc [mm]: 4.2
Back focal length fb [mm]: 99.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30B-100PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: 120.6
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3.8
Back focal length fb [mm]: 119.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30B-120PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: 150.6
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3.4
Back focal length fb [mm]: 149.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30B-150PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: 170.5
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3.3
Back focal length fb [mm]: 169.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30B-170PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: 200.5
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3.1
Back focal length fb [mm]: 199.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30B-200PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: 250.5
Edge thickness te [mm]: 2
Center thickness tc [mm]: 2.9
Back focal length fb [mm]: 249.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30B-250PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: 42.1
Edge thickness te [mm]: 2
Center thickness tc [mm]: 12.3
Back focal length fb [mm]: 37.9

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40B-40PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: 51.7
Edge thickness te [mm]: 2
Center thickness tc [mm]: 10
Back focal length fb [mm]: 48.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40B-50PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: 61.4
Edge thickness te [mm]: 2
Center thickness tc [mm]: 8.6
Back focal length fb [mm]: 58.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40B-60PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: 71.3
Edge thickness te [mm]: 2
Center thickness tc [mm]: 7.6
Back focal length fb [mm]: 68.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40B-70PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: 81.2
Edge thickness te [mm]: 2
Center thickness tc [mm]: 6.9
Back focal length fb [mm]: 78.8

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40B-80PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: 91.1
Edge thickness te [mm]: 2
Center thickness tc [mm]: 6.3
Back focal length fb [mm]: 88.9

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40B-90PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: 101
Edge thickness te [mm]: 2
Center thickness tc [mm]: 5.9
Back focal length fb [mm]: 99

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40B-100PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: 120.9
Edge thickness te [mm]: 2
Center thickness tc [mm]: 5.2
Back focal length fb [mm]: 119.1

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40B-120PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: 150.8
Edge thickness te [mm]: 2
Center thickness tc [mm]: 4.6
Back focal length fb [mm]: 149.2

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40B-150PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: 170.7
Edge thickness te [mm]: 2
Center thickness tc [mm]: 4.3
Back focal length fb [mm]: 169.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40B-170PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: 200.6
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3.9
Back focal length fb [mm]: 199.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40B-200PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: 250.6
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3.5
Back focal length fb [mm]: 249.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40B-250PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: 52.7
Edge thickness te [mm]: 3
Center thickness tc [mm]: 15.8
Back focal length fb [mm]: 47.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50B-50PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: 62.3
Edge thickness te [mm]: 3
Center thickness tc [mm]: 13.5
Back focal length fb [mm]: 57.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50B-60PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: 72
Edge thickness te [mm]: 3
Center thickness tc [mm]: 11.9
Back focal length fb [mm]: 68

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50B-70PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: 81.8
Edge thickness te [mm]: 3
Center thickness tc [mm]: 10.7
Back focal length fb [mm]: 78.2

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50B-80PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: 91.6
Edge thickness te [mm]: 3
Center thickness tc [mm]: 9.8
Back focal length fb [mm]: 88.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50B-90PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: 101.5
Edge thickness te [mm]: 3
Center thickness tc [mm]: 9.1
Back focal length fb [mm]: 98.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50B-100PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: 121.3
Edge thickness te [mm]: 3
Center thickness tc [mm]: 8
Back focal length fb [mm]: 118.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50B-120PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: 151.2
Edge thickness te [mm]: 3
Center thickness tc [mm]: 7
Back focal length fb [mm]: 148.8

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50B-150PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: 171.1
Edge thickness te [mm]: 3
Center thickness tc [mm]: 6.6
Back focal length fb [mm]: 168.9

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50B-170PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: 201
Edge thickness te [mm]: 3
Center thickness tc [mm]: 6
Back focal length fb [mm]: 199

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50B-200PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: 220.9
Edge thickness te [mm]: 3
Center thickness tc [mm]: 5.7
Back focal length fb [mm]: 219.1

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50B-220PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: 251
Edge thickness te [mm]: 3
Center thickness tc [mm]: 5.4
Back focal length fb [mm]: 249.1

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50B-250PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: 300.8
Edge thickness te [mm]: 3
Center thickness tc [mm]: 5
Back focal length fb [mm]: 299.2

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50B-300PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: 52.7
Edge thickness te [mm]: 3
Center thickness tc [mm]: 16.3
Back focal length fb [mm]: 47.1

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8B-50PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: 62.3
Edge thickness te [mm]: 3
Center thickness tc [mm]: 13.8
Back focal length fb [mm]: 57.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8B-60PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: 72
Edge thickness te [mm]: 3
Center thickness tc [mm]: 12.2
Back focal length fb [mm]: 68

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8B-70PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: 81.8
Edge thickness te [mm]: 3
Center thickness tc [mm]: 11
Back focal length fb [mm]: 78.2

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8B-80PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: 91.6
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 9.8
Back focal length fb [mm]: 88.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8B-90PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: 101.5
Edge thickness te [mm]: 3
Center thickness tc [mm]: 9.3
Back focal length fb [mm]: 98.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8B-100PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: 121.3
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 8
Back focal length fb [mm]: 118.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8B-120PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: 151.2
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 7
Back focal length fb [mm]: 148.9

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8B-150PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: 171.1
Edge thickness te [mm]: 2.4
Center thickness tc [mm]: 6.1
Back focal length fb [mm]: 169

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8B-170PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: 201
Edge thickness te [mm]: 2.9
Center thickness tc [mm]: 6
Back focal length fb [mm]: 199

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8B-200PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: 251
Edge thickness te [mm]: 2.9
Center thickness tc [mm]: 5.4
Back focal length fb [mm]: 249.1

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8B-250PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: 300.8
Edge thickness te [mm]: 2.9
Center thickness tc [mm]: 5
Back focal length fb [mm]: 299.1

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8B-300PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø60
Focal length f [mm]: 63.2
Edge thickness te [mm]: 3
Center thickness tc [mm]: 18.4
Back focal length fb [mm]: 56.8

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-60B-60PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø60
Focal length f [mm]: 72.7
Edge thickness te [mm]: 3
Center thickness tc [mm]: 16
Back focal length fb [mm]: 67.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-60B-70PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø60
Focal length f [mm]: 82.4
Edge thickness te [mm]: 3
Center thickness tc [mm]: 14.2
Back focal length fb [mm]: 77.6

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-60B-80PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø60
Focal length f [mm]: 92.2
Edge thickness te [mm]: 3
Center thickness tc [mm]: 13
Back focal length fb [mm]: 87.8

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-60B-90PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø60
Focal length f [mm]: 102
Edge thickness te [mm]: 3
Center thickness tc [mm]: 11.9
Back focal length fb [mm]: 98

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-60B-100PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø60
Focal length f [mm]: 121.7
Edge thickness te [mm]: 3
Center thickness tc [mm]: 10.3
Back focal length fb [mm]: 118.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-60B-120PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø60
Focal length f [mm]: 151.5
Edge thickness te [mm]: 3
Center thickness tc [mm]: 8.8
Back focal length fb [mm]: 148.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-60B-150PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø60
Focal length f [mm]: 171.4
Edge thickness te [mm]: 3
Center thickness tc [mm]: 8.1
Back focal length fb [mm]: 168.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-60B-170PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø60
Focal length f [mm]: 201.2
Edge thickness te [mm]: 3
Center thickness tc [mm]: 7.4
Back focal length fb [mm]: 198.8

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-60B-200PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø60
Focal length f [mm]: 251.1
Edge thickness te [mm]: 3
Center thickness tc [mm]: 6.5
Back focal length fb [mm]: 248.9

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-60B-250PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø60
Focal length f [mm]: 301
Edge thickness te [mm]: 3
Center thickness tc [mm]: 5.9
Back focal length fb [mm]: 299

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-60B-300PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø80
Focal length f [mm]: 103.2
Edge thickness te [mm]: 3
Center thickness tc [mm]: 19
Back focal length fb [mm]: 96.8

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-80B-100PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø80
Focal length f [mm]: 152.2
Edge thickness te [mm]: 3
Center thickness tc [mm]: 13.5
Back focal length fb [mm]: 147.8

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-80B-150PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø80
Focal length f [mm]: 201.8
Edge thickness te [mm]: 3
Center thickness tc [mm]: 10.8
Back focal length fb [mm]: 198.2

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-80B-200PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø80
Focal length f [mm]: 251.5
Edge thickness te [mm]: 3
Center thickness tc [mm]: 9.2
Back focal length fb [mm]: 248.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-80B-250PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø80
Focal length f [mm]: 301.3
Edge thickness te [mm]: 3
Center thickness tc [mm]: 8.2
Back focal length fb [mm]: 298.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-80B-300PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø80
Focal length f [mm]: 401.1
Edge thickness te [mm]: 3
Center thickness tc [mm]: 6.9
Back focal length fb [mm]: 398.9

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-80B-400PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø80
Focal length f [mm]: 501
Edge thickness te [mm]: 3
Center thickness tc [mm]: 6.1
Back focal length fb [mm]: 499

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-80B-500PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø80
Focal length f [mm]: 700.9
Edge thickness te [mm]: 3
Center thickness tc [mm]: 5.2
Back focal length fb [mm]: 699.1

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-80B-700PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø80
Focal length f [mm]: 1000.7
Edge thickness te [mm]: 3
Center thickness tc [mm]: 4.5
Back focal length fb [mm]: 999.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-80B-1000PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø100
Focal length f [mm]: 153.3
Edge thickness te [mm]: 3
Center thickness tc [mm]: 19.5
Back focal length fb [mm]: 146.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-100B-150PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø100
Focal length f [mm]: 202.5
Edge thickness te [mm]: 3
Center thickness tc [mm]: 15.2
Back focal length fb [mm]: 197.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-100B-200PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø100
Focal length f [mm]: 252.1
Edge thickness te [mm]: 3
Center thickness tc [mm]: 12.7
Back focal length fb [mm]: 247.9

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-100B-250PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø100
Focal length f [mm]: 301.8
Edge thickness te [mm]: 3
Center thickness tc [mm]: 11.1
Back focal length fb [mm]: 298.2

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-100B-300PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø100
Focal length f [mm]: 401.5
Edge thickness te [mm]: 3
Center thickness tc [mm]: 9
Back focal length fb [mm]: 398.5

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-100B-400PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø100
Focal length f [mm]: 501.3
Edge thickness te [mm]: 3
Center thickness tc [mm]: 7.8
Back focal length fb [mm]: 498.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-100B-500PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø100
Focal length f [mm]: 701.1
Edge thickness te [mm]: 3
Center thickness tc [mm]: 6.4
Back focal length fb [mm]: 698.9

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-100B-700PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Biconvex Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: 633 - 1064
Transmission in AR range: 98,5%
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 83
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø100
Focal length f [mm]: 1001
Edge thickness te [mm]: 3
Center thickness tc [mm]: 5.4
Back focal length fb [mm]: 999.1

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-100B-1000PIR1_STP.zip

OSE-SLB-B-P_SLSQ-B-P.pdf

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls
