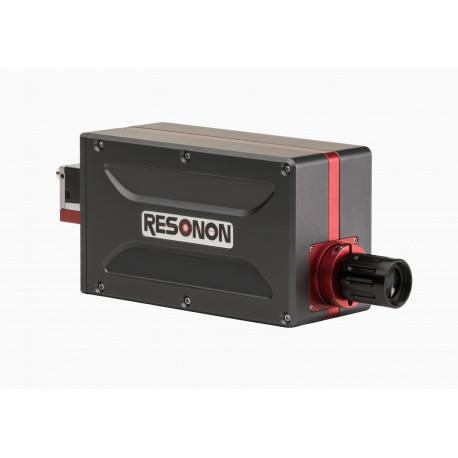

  • Pika NUV2
  • Pika NUV2 - front
  • Pika NUV2 - rear
  • Pika NUV2 - Benchtop System
  • Pika NUV2 - side
  • Pika NUV2 - top
  • Pika NUV2 - bottom

Reference number: RES-CM-Pika-UV

The PIKA UV hyperspectral camera is the first commercially available product to offer exceptional performance in the visible and near ultraviolet (VIS+NUV) spectral range (330 - 800 nm).

alt

Need more info?
Contact our expert.

Optical Test & Measurement Team
Phone: +49 8153 405-11

Description

PIKA-UV Hyperspectral Camera for the Near UV and VIS Range

The Pika UV is designed to capture the spectrum of visible and near ultraviolet light (VIS+NUV). With its optimized lens, the Pika UV delivers exceptional image quality across the entire spectral range.

Advantages:

  1. Outstanding UV Measurement:

    The Pika UV is the first commercially available hyperspectral camera to capture the human-visible spectral range in addition to the UV range. While many materials may appear similar to the human eye, they have distinct characteristics in the ultraviolet that the Pika UV can make visible. This exceptional capability makes it an indispensable tool for a variety of scientific fields, including life science in particular.
  2. NUV illumination module for laboratory use:

    Since halogen light sources are not usable in the NUV range, a dedicated NUV illumination module is available in combination with the Pika UV, designed to extend the illumination for the desktop system.
  3. Versatility for all applications:

    The Pika UV is a versatile tool suitable for a variety of environments and applications. Whether you are performing research in the lab, conducting airborne remote sensing, or exploring the natural world, the Pika UV is your reliable partner. It can function as a stand-alone unit or be seamlessly integrated into an existing system, using the freely available programming documentation.

Main features:

  • Spectral range: the 330 to 800 nm range allows the Pika UV to capture a comprehensive view of the UV and visible spectrum to gain detailed information.
  • High resolution: with 1500 spatial pixels per line and 255 spectral channels per line, you will experience unprecedented precision and clarity in your hyperspectral imaging.
  • Unique Ultraviolet Imaging: The Pika UV is the only commercially available hyperspectral camera that combines ultraviolet and visible spectral capabilities.

A free version of Spectronon is available along with sample data cubes.

Specifications

Spectral Range 330 - 800 nm
Spectral Resolution 2.8 nm
Spectral Channels 255
Dispersion per Pixel 0.46 nm
Spatial Channels 1500
Max Frame Rate 142 fps
Connection Options USB 3.0
Weight 2.27 kg
Dimensions (cm) 10.7 x 23.0 x 8.5

Objective lens specifications

Focal Length (mm) FOV (deg) IFOV (mrad)
24 20.5 1.00
60 8.4 0.40
