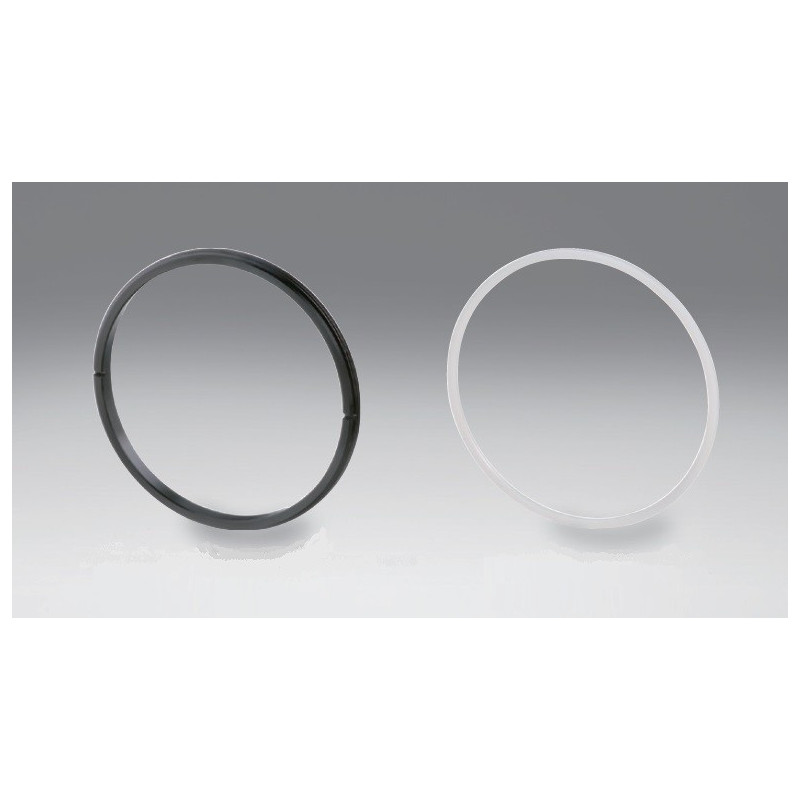

OSE-RR: Retaining Rings, Accessory

Reference number: OSE-RR-10-5

Outer Diameter in mm

Outer Diameter in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Screw pitch: 0.75
Quantity [pieces]: 5
Outer diameter ?A [mm]: 10.85
Inner diameter ?B [mm]: 7
Thickness C [mm]: 3

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 0.75
Quantity [pieces]: 5
Outer diameter ?A [mm]: 13.55
Inner diameter ?B [mm]: 9.7
Thickness C [mm]: 3

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 0.75
Quantity [pieces]: 5
Outer diameter ?A [mm]: 15.85
Inner diameter ?B [mm]: 12
Thickness C [mm]: 3

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 0.75
Quantity [pieces]: 5
Outer diameter ?A [mm]: 20.85
Inner diameter ?B [mm]: 17
Thickness C [mm]: 3

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 0.75
Quantity [pieces]: 5
Outer diameter ?A [mm]: 25.85
Inner diameter ?B [mm]: 22
Thickness C [mm]: 3

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 0.75
Quantity [pieces]: 5
Outer diameter ?A [mm]: 26.25
Inner diameter ?B [mm]: 22
Thickness C [mm]: 3

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 0.75
Quantity [pieces]: 5
Outer diameter ?A [mm]: 30.85
Inner diameter ?B [mm]: 27
Thickness C [mm]: 3

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 0.75
Quantity [pieces]: 5
Outer diameter ?A [mm]: 38.95
Inner diameter ?B [mm]: 35
Thickness C [mm]: 3

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 0.75
Quantity [pieces]: 5
Outer diameter ?A [mm]: 40.85
Inner diameter ?B [mm]: 37
Thickness C [mm]: 3

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 0.75
Quantity [pieces]: 5
Outer diameter ?A [mm]: 50.85
Inner diameter ?B [mm]: 46
Thickness C [mm]: 3

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 0.75
Quantity [pieces]: 5
Outer diameter ?A [mm]: 51.65
Inner diameter ?B [mm]: 47
Thickness C [mm]: 3

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 0.75
Quantity [pieces]: 5
Outer diameter ?A [mm]: 52.85
Inner diameter ?B [mm]: 48
Thickness C [mm]: 3

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 0.75
Quantity [pieces]: 5
Outer diameter ?A [mm]: 60.85
Inner diameter ?B [mm]: 56
Thickness C [mm]: 3

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 1
Quantity [pieces]: 5
Outer diameter ?A [mm]: 81.1
Inner diameter ?B [mm]: 75
Thickness C [mm]: 3.5

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 1
Quantity [pieces]: 5
Outer diameter ?A [mm]: 101.1
Inner diameter ?B [mm]: 95
Thickness C [mm]: 4

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 1
Quantity [pieces]: 5
Outer diameter ?A [mm]: 131.1
Inner diameter ?B [mm]: 124
Thickness C [mm]: 4

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 1
Quantity [pieces]: 5
Outer diameter ?A [mm]: 151.1
Inner diameter ?B [mm]: 144
Thickness C [mm]: 4

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip
