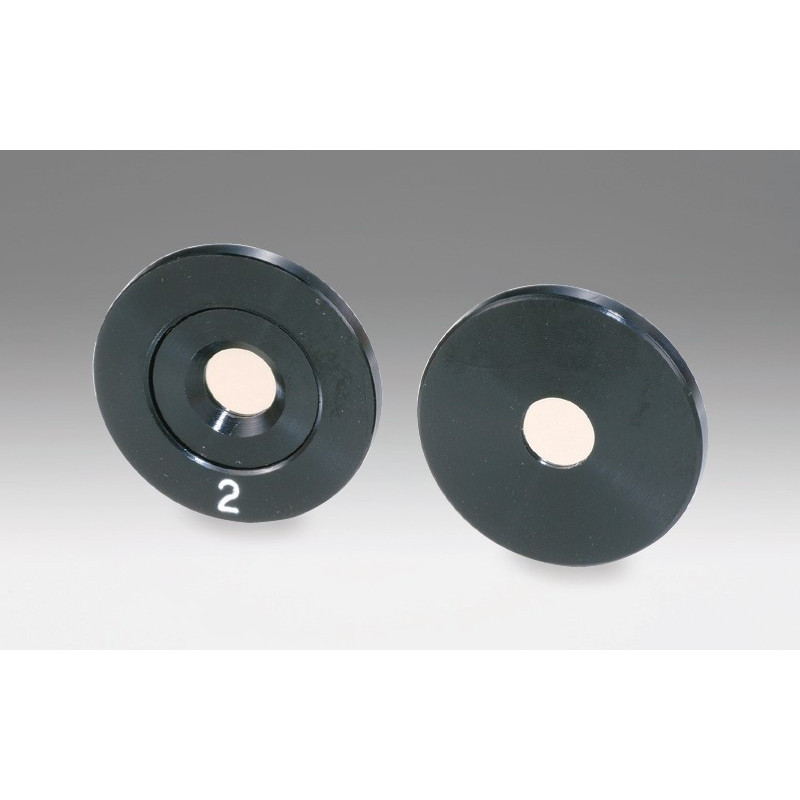

OSE-PA: OSE-PA-1: Precision Pinhole

Reference number: OSE-PA-1

€188.60

Tax excluded

MAX Aperture Diameter in mm

Type

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Those products may also interest you

OSE-MHAN-M: Gimballed Mirror Mounts

OSE-MHAN-M

€235.90
OSE-MHAN-S: Gimballed Mirror Mounts

OSE-MHAN-S

€186.70
OSE-MHAN-EE: Gimballed Mirror Mounts

OSE-MHAN-EE

€226.30
OSE-MHA: Gimballed Mirror Mounts

OSE-MHA

€377.20
OSE-MHAN-DM: Gimballed Mirror Mounts

OSE-MHAN-DM

€364.90

Pinhole diameter [?m]: 1 + 1/-0
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.001
Hole geometry: Perfect circle
Pinhole material: Nickel
Foil thickness [?m]: 20±5
Pinhole finish: None
Damage threshold (reference): -
Wavelenght used: -

Downloads

OSE-PA-1_STP.zip

OSE-PA_FSL.pdf

Holders.zip

Pinhole diameter [?m]: 2±1
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.001
Hole geometry: Perfect circle
Pinhole material: Nickel
Foil thickness [?m]: 20±5
Pinhole finish: None
Damage threshold (reference): -
Wavelenght used: -

Downloads

OSE-PA-2_STP.zip

OSE-PA_FSL.pdf

Holders.zip

Pinhole diameter [?m]: 5±2
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.001
Hole geometry: Perfect circle
Pinhole material: Nickel
Foil thickness [?m]: 20±5
Pinhole finish: None
Damage threshold (reference): -
Wavelenght used: -

Downloads

OSE-PA-5_STP.zip

OSE-PA_FSL.pdf

Holders.zip

Pinhole diameter [?m]: 10±2
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.001
Hole geometry: Perfect circle
Pinhole material: Nickel
Foil thickness [?m]: 20±5
Pinhole finish: None
Damage threshold (reference): -
Wavelenght used: -

Downloads

OSE-PA-10_STP.zip

OSE-PA_FSL.pdf

Holders.zip

Pinhole diameter [?m]: 15±2
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.001
Hole geometry: Perfect circle
Pinhole material: Nickel
Foil thickness [?m]: 20±5
Pinhole finish: None
Damage threshold (reference): -
Wavelenght used: -

Downloads

OSE-PA-15_STP.zip

OSE-PA_FSL.pdf

Holders.zip

Pinhole diameter [?m]: 20±2
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.001
Hole geometry: Perfect circle
Pinhole material: Nickel
Foil thickness [?m]: 20±5
Pinhole finish: None
Damage threshold (reference): -
Wavelenght used: -

Downloads

OSE-PA-20_STP.zip

OSE-PA_FSL.pdf

Holders.zip

Pinhole diameter [?m]: 25±3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.001
Hole geometry: Perfect circle
Pinhole material: Nickel
Foil thickness [?m]: 20±5
Pinhole finish: None
Damage threshold (reference): -
Wavelenght used: -

Downloads

OSE-PA-25_STP.zip

OSE-PA_FSL.pdf

Holders.zip

Pinhole diameter [?m]: 30±3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.001
Hole geometry: Perfect circle
Pinhole material: Nickel
Foil thickness [?m]: 20±5
Pinhole finish: None
Damage threshold (reference): -
Wavelenght used: -

Downloads

OSE-PA-30_STP.zip

OSE-PA_FSL.pdf

Holders.zip

Pinhole diameter [?m]: 40±3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.001
Hole geometry: Perfect circle
Pinhole material: Nickel
Foil thickness [?m]: 20±5
Pinhole finish: None
Damage threshold (reference): -
Wavelenght used: -

Downloads

OSE-PA-40_STP.zip

OSE-PA_FSL.pdf

Holders.zip

Pinhole diameter [?m]: 50±4
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.001
Hole geometry: Perfect circle
Pinhole material: Nickel
Foil thickness [?m]: 20±5
Pinhole finish: None
Damage threshold (reference): -
Wavelenght used: -

Downloads

OSE-PA-50_STP.zip

OSE-PA_FSL.pdf

Holders.zip

Pinhole diameter [?m]: 100±5
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.001
Hole geometry: Perfect circle
Pinhole material: Nickel
Foil thickness [?m]: 20±5
Pinhole finish: None
Damage threshold (reference): -
Wavelenght used: -

Downloads

OSE-PA-100_STP.zip

OSE-PA_FSL.pdf

Holders.zip

Pinhole diameter [?m]: 200±6
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.001
Hole geometry: Perfect circle
Pinhole material: Nickel
Foil thickness [?m]: 20±5
Pinhole finish: None
Damage threshold (reference): -
Wavelenght used: -

Downloads

OSE-PA-200_STP.zip

OSE-PA_FSL.pdf

Holders.zip

Pinhole diameter [?m]: 400±8
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.001
Hole geometry: Perfect circle
Pinhole material: Nickel
Foil thickness [?m]: 20±5
Pinhole finish: None
Damage threshold (reference): -
Wavelenght used: -

Downloads

OSE-PA-400_STP.zip

OSE-PA_FSL.pdf

Holders.zip

Pinhole diameter [?m]: 5±2
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.001
Hole geometry: Perfect circle
Pinhole material: Copper
Foil thickness [?m]: 20±5
Pinhole finish: Gold coat (both faces)
Damage threshold (reference): 50MW/cm2 ?@700nm?
Wavelenght used: 700nm - 10.6?m

Downloads

OSE-PA-5HEL_STP.zip

OSE-PA_FSL.pdf

Holders.zip

Pinhole diameter [?m]: 10±2
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.001
Hole geometry: Perfect circle
Pinhole material: Copper
Foil thickness [?m]: 20±5
Pinhole finish: Gold coat (both faces)
Damage threshold (reference): 50MW/cm2 ?@700nm?
Wavelenght used: 700nm - 10.6?m

Downloads

OSE-PA-10HEL_STP.zip

OSE-PA_FSL.pdf

Holders.zip

Pinhole diameter [?m]: 15±2
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.001
Hole geometry: Perfect circle
Pinhole material: Copper
Foil thickness [?m]: 20±5
Pinhole finish: Gold coat (both faces)
Damage threshold (reference): 50MW/cm2 ?@700nm?
Wavelenght used: 700nm - 10.6?m

Downloads

OSE-PA-15HEL_STP.zip

OSE-PA_FSL.pdf

Holders.zip

Pinhole diameter [?m]: 25±3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.001
Hole geometry: Perfect circle
Pinhole material: Copper
Foil thickness [?m]: 20±5
Pinhole finish: Gold coat (both faces)
Damage threshold (reference): 50MW/cm2 ?@700nm?
Wavelenght used: 700nm - 10.6?m

Downloads

OSE-PA-25HEL_STP.zip

OSE-PA_FSL.pdf

Holders.zip

Pinhole diameter [?m]: 50±4
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.001
Hole geometry: Perfect circle
Pinhole material: Copper
Foil thickness [?m]: 20±5
Pinhole finish: Gold coat (both faces)
Damage threshold (reference): 50MW/cm2 ?@700nm?
Wavelenght used: 700nm - 10.6?m

Downloads

OSE-PA-50HEL_STP.zip

OSE-PA_FSL.pdf

Holders.zip

Pinhole diameter [?m]: 100±4
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.001
Hole geometry: Perfect circle
Pinhole material: Copper
Foil thickness [?m]: 20±5
Pinhole finish: Gold coat (both faces)
Damage threshold (reference): 50MW/cm2 ?@700nm?
Wavelenght used: 700nm - 10.6?m

Downloads

OSE-PA-100HEL_STP.zip

OSE-PA_FSL.pdf

Holders.zip

Pinhole diameter [?m]: 200±6
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.001
Hole geometry: Perfect circle
Pinhole material: Copper
Foil thickness [?m]: 20±5
Pinhole finish: Gold coat (both faces)
Damage threshold (reference): 50MW/cm2 ?@700nm?
Wavelenght used: 700nm - 10.6?m

Downloads

OSE-PA-200HEL_STP.zip

OSE-PA_FSL.pdf

Holders.zip
