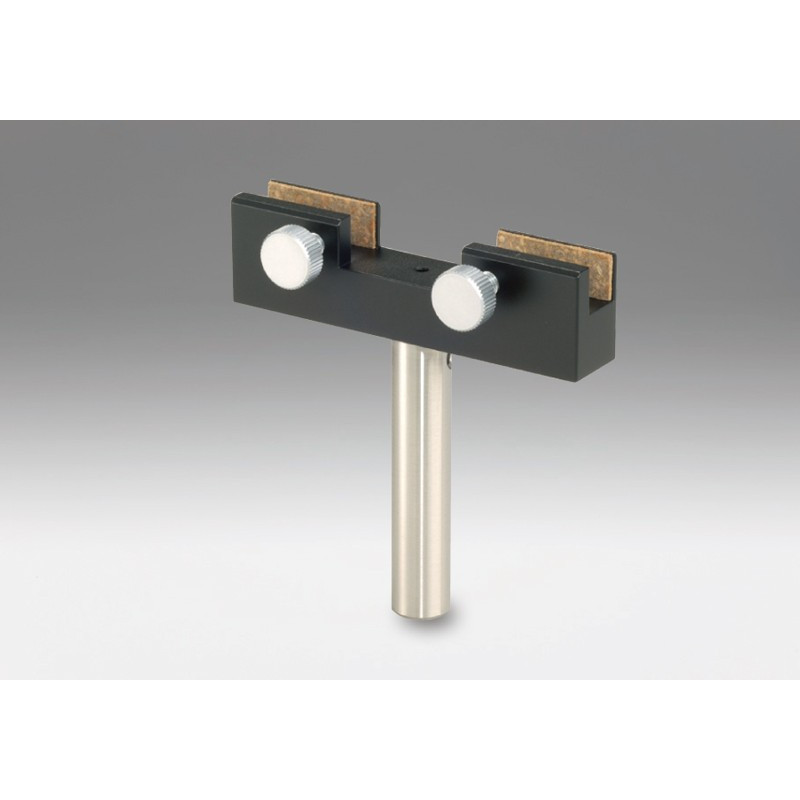

OSE-KMH: Square Optics Holder

Reference number: OSE-KMH-30

€47.20

Tax excluded

Option

Compatible Optics Dimensions in mm

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Those products may also interest you

OSE-MHAN-M: Gimballed Mirror Mounts

OSE-MHAN-M

€235.90
OSE-MHAN-S: Gimballed Mirror Mounts

OSE-MHAN-S

€186.70
OSE-MHAN-EE: Gimballed Mirror Mounts

OSE-MHAN-EE

€226.30
OSE-MHA: Gimballed Mirror Mounts

OSE-MHA

€377.20
OSE-MHAN-DM: Gimballed Mirror Mounts

OSE-MHAN-DM

€364.90

Compatible optics diameter [mm]: 10 - 45
Compatible optic thickness [mm]: 3 - 5
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.08
B [mm]: min 10
C [mm]: max5 min3
E [mm]: 30
F [mm]: 15
G [mm]: 12
H [mm]: 10
I [mm]: 6
J [mm]: 12

Downloads

OSE-KMH-30_STP.zip

OSE-KMH-CMH.pdf

Holders.zip

Compatible optics diameter [mm]: 45 - 100
Compatible optic thickness [mm]: 1 - 7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.11
B [mm]: min 45
C [mm]: max 7 min 1
E [mm]: 80
F [mm]: 22
G [mm]: 15
H [mm]: 12.5
I [mm]: 8
J [mm]: 12

Downloads

OSE-KMH-80_STP.zip

OSE-KMH-CMH.pdf

Holders.zip

Compatible optics diameter [mm]: 100 - 180
Compatible optic thickness [mm]: 6 - 17
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.38
B [mm]: min 100
C [mm]: max 17 min 6
E [mm]: 150
F [mm]: 30
G [mm]: 30
H [mm]: 15
I [mm]: 15
J [mm]: 20

Downloads

OSE-KMH-150_STP.zip

OSE-KMH-CMH.pdf

Holders.zip

Compatible optics diameter [mm]: 10 - 45
Compatible optic thickness [mm]: 3 - 5
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.03

Downloads

OSE-KMH-30-N_STP.zip

OSE-KMH-CMH.pdf

Holders.zip

Compatible optics diameter [mm]: 45 - 100
Compatible optic thickness [mm]: 1 - 7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.06

Downloads

OSE-KMH-80-N_STP.zip

OSE-KMH-CMH.pdf

Holders.zip

Compatible optics diameter [mm]: 100 - 180
Compatible optic thickness [mm]: 6 - 17
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.23

Downloads

OSE-KMH-150-N_STP.zip

OSE-KMH-CMH.pdf

Holders.zip

Compatible optics diameter [mm]: 45 - 100
Compatible optic thickness [mm]: 1 - 7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.06

Downloads

OSE-KMH-80-EE_STP.zip

OSE-KMH-CMH.pdf

Holders.zip

Compatible optics diameter [mm]: 10 - 45
Compatible optic thickness [mm]: 3 - 5
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.03

Downloads

OSE-KMH-30-EE_STP.zip

OSE-KMH-CMH.pdf

Holders.zip

Compatible optics diameter [mm]: 45 - 100
Compatible optic thickness [mm]: 1 - 7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.06

Downloads

OSE-KMH-80-UU_STP.zip

OSE-KMH-CMH.pdf

Holders.zip

Compatible optics diameter [mm]: 10 - 45
Compatible optic thickness [mm]: 3 - 5
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.03

Downloads

OSE-KMH-30-UU_STP.zip

OSE-KMH-CMH.pdf

Holders.zip

Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.13
A [mm]: 90
B [mm]: 65
C [mm]: 74
D [mm]: 58
E [mm]: 40
F [mm]: 75

Downloads

OSE-KPH-90_STP.zip

Holders.zip

Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.2
A [mm]: 180
B [mm]: 126
C [mm]: 160
D [mm]: 118
E [mm]: 70
F [mm]: 135

Downloads

OSE-KPH-180_STP.zip

Holders.zip
