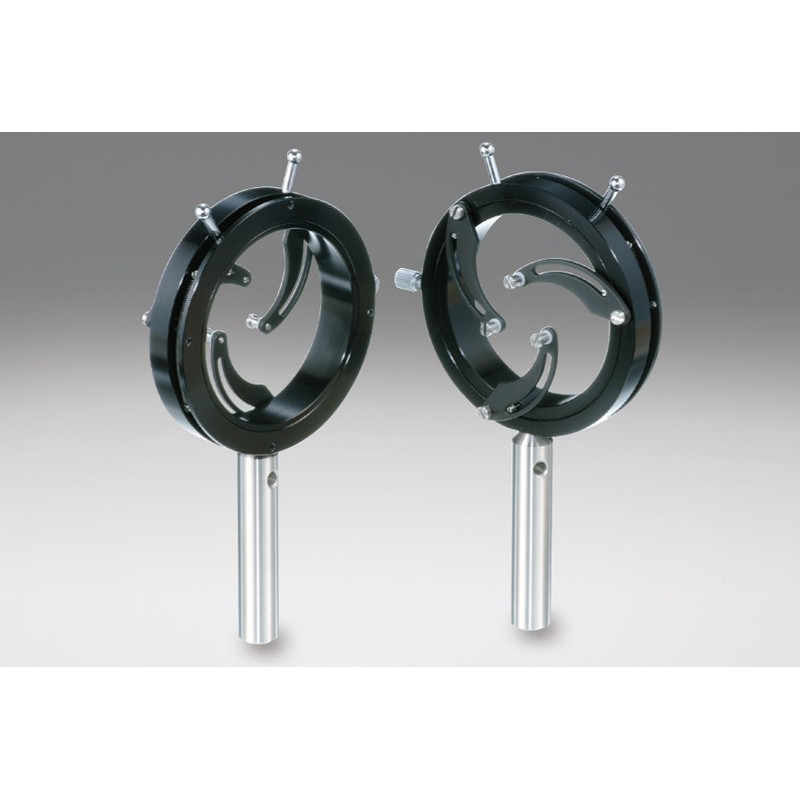

OSE-SLH: Caliper Variable Lens Holders

Reference number: OSE-SLH-25

Option

Compatible Optics Diameter

Option

Compatible Optics Diameter

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Compatible optics diameter [mm]: 5 -25
Compatible optic thickness [mm]: 1 - 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.1

Downloads

OSE-SLH-25_STP.zip

OSE-SLH.pdf

Holders.zip

Compatible optics diameter [mm]: 30 - 50
Compatible optic thickness [mm]: 1 - 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.15

Downloads

OSE-SLH-50_STP.zip

OSE-SLH.pdf

Holders.zip

Compatible optics diameter [mm]: 25 - 80
Compatible optic thickness [mm]: 1 - 9
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.35

Downloads

OSE-SLH-80_STP.zip

OSE-SLH.pdf

Holders.zip

Compatible optics diameter [mm]: 40 - 110
Compatible optic thickness [mm]: 1 - 9
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.7

Downloads

OSE-SLH-120_STP.zip

OSE-SLH.pdf

Holders.zip

Compatible optics diameter [mm]: 5 -25
Compatible optic thickness [mm]: 1 - 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.05
A [mm]: 5 - 25
B [mm]: 25
C [mm]: 74
D [mm]: 11
E [mm]: 14
F [mm]: 22
G [mm]: M4

Downloads

OSE-SLH-25-EE_STP.zip

OSE-SLH.pdf

Holders.zip

Compatible optics diameter [mm]: 5 -25
Compatible optic thickness [mm]: 1 - 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.05
A [mm]: 5 - 25
B [mm]: 25
C [mm]: 74
D [mm]: 11
E [mm]: 14
F [mm]: 22
G [mm]: 8-32UNC

Downloads

OSE-SLH-25-EE_STP.zip

OSE-SLH.pdf

Holders.zip

Compatible optics diameter [mm]: 25 - 80
Compatible optic thickness [mm]: 1 - 9
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.3
A [mm]: 25 - 80
B [mm]: 60
C [mm]: 121
D [mm]: 13.5
E [mm]: 18
F [mm]: 34
G [mm]: 8-32UNC

Downloads

OSE-SLH-80-UU_STP.zip

OSE-SLH.pdf

Holders.zip
